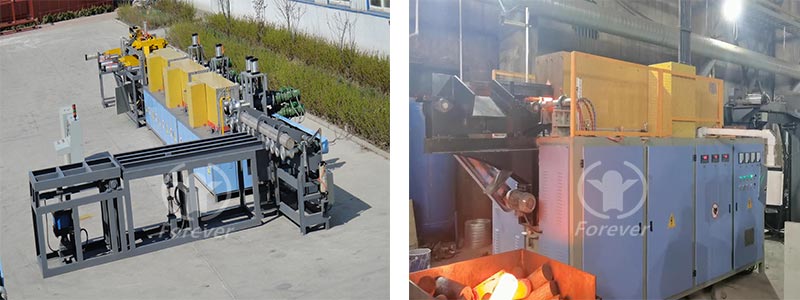

Bar material hot forging equipment

Main technical parameters of the equipment: Power supply system: Dual rectification twelve pulse 1600KW/500Hz intelligent intermediate frequency power supply. Energy conversion: Heating one ton of steel to 1050 ° C consumes 310-330 kWh of electricity. ·Main application: Medium frequency induction hot forging of bar and round steel. ·Feeding system: Double pinch roller pneumatic pressure, continuous feeding, feed speed infinitely variable speed adjustment.

Inquire Now Next Product

Main technical parameters

Main technical parameters of bar forging heat transfer furnace:

Main application: Medium frequency induction hot forging of bar and round steel.

Power supply system: Dual rectification twelve pulse 1600KW/500Hz intelligent intermediate frequency power supply.

Storage system: A storage platform made of thick walled square tubes welded together, with a slope of 13 °, capable of storing 6-8 pieces of material.

Feeding system: Double pinch roller pneumatic pressure, continuous feeding, feed speed infinitely variable speed adjustment.

Discharge system: consisting of gas-liquid booster cylinder, linear guide rail, opening and closing clamp head, and PLC system to form a fast discharge robotic arm.

Sorting system: composed of infrared thermometer, chain conveyor, and guiding cylinder.

Energy conversion: Heating one ton of steel to 1050 ° C consumes 310-330 kWh of electricity.

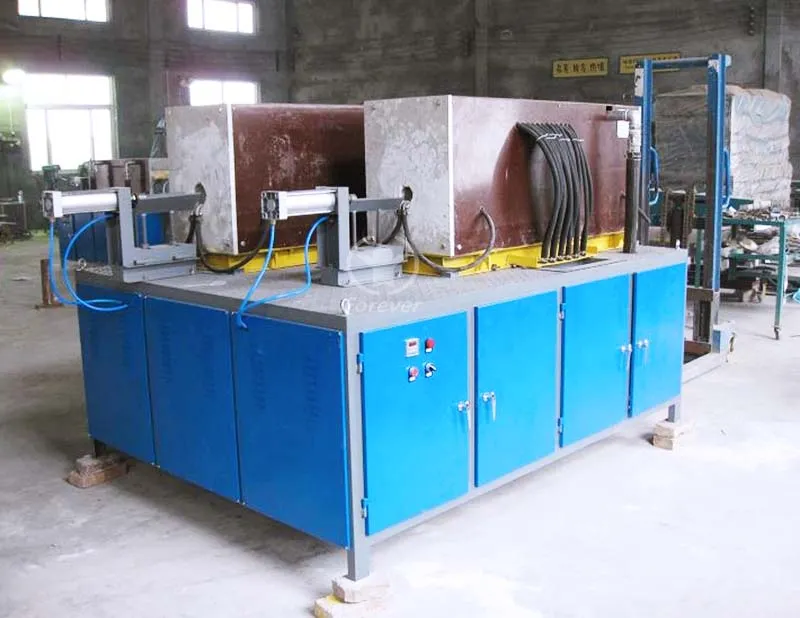

Bar material hot forging equipment

Advantages and characteristics

Advantages and characteristics of bar forging heat transfer furnace:

1. Fast heating and less oxidation skin.

2. 24-hour uninterrupted work, achieving automatic feeding.

3. Multi variety feeding and discharging machines: Different feeding and discharging machines are configured to meet the different process requirements of users, forming an optimized combination of equipment. The specific forms include: continuous, intermittent, etc., and the discharge forms include tilting, direct sliding, etc.

4. Multiple protections: water temperature and pressure alarms in the cooling water circuit. Set the upper and lower limit alarms for temperature.

5. Installation, debugging, and operation are quite convenient and easy to learn. The equipment is energy-saving and environmentally friendly, providing a good operating environment for workers.

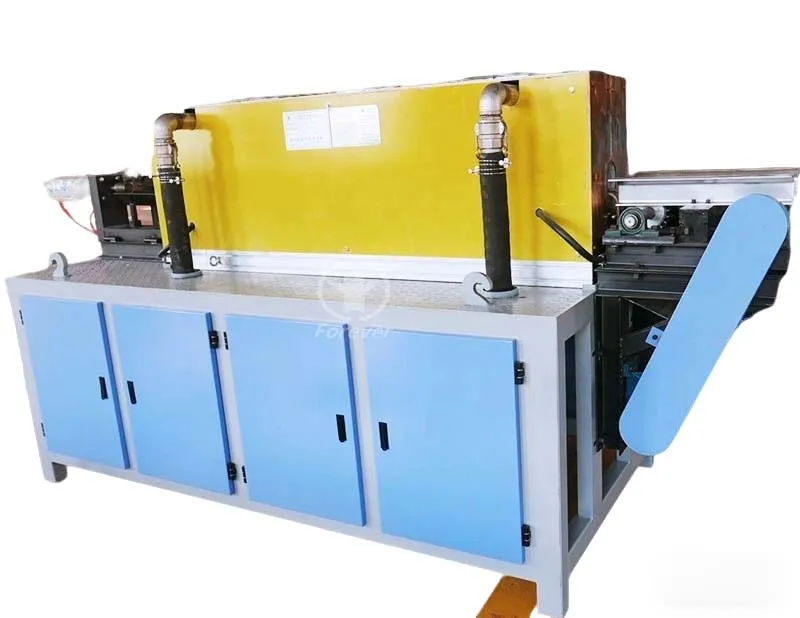

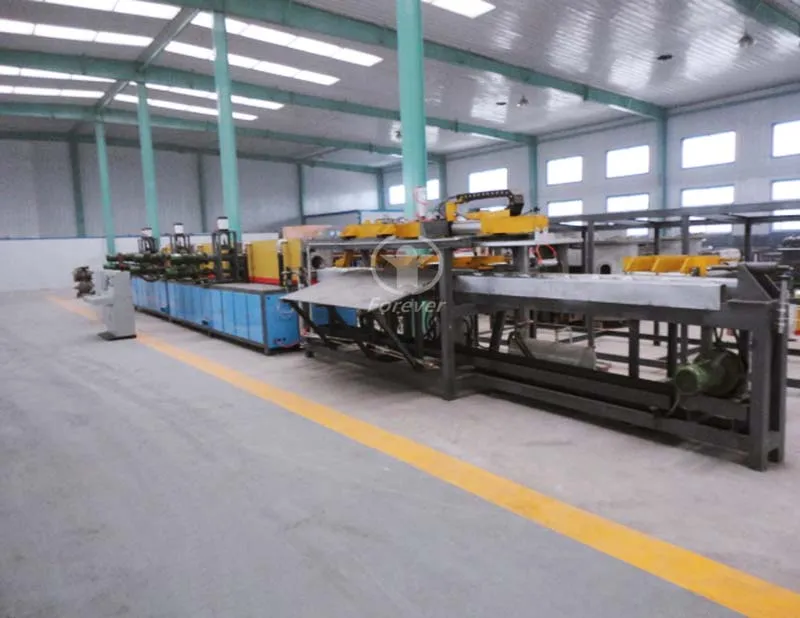

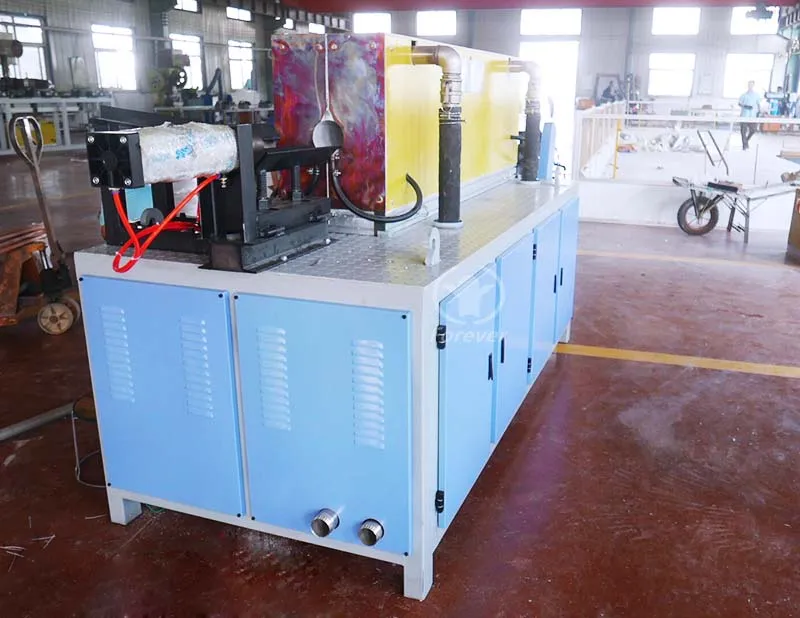

Bar material hot forging equipment
