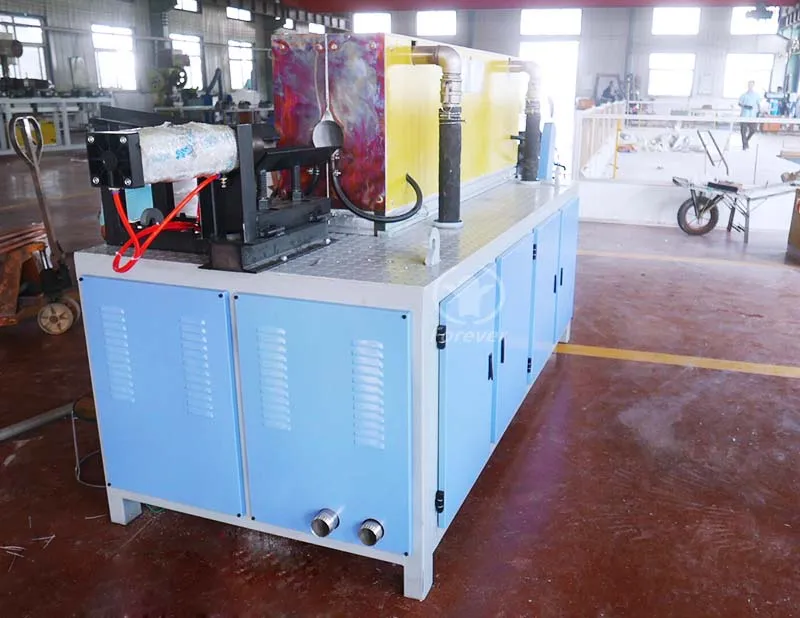

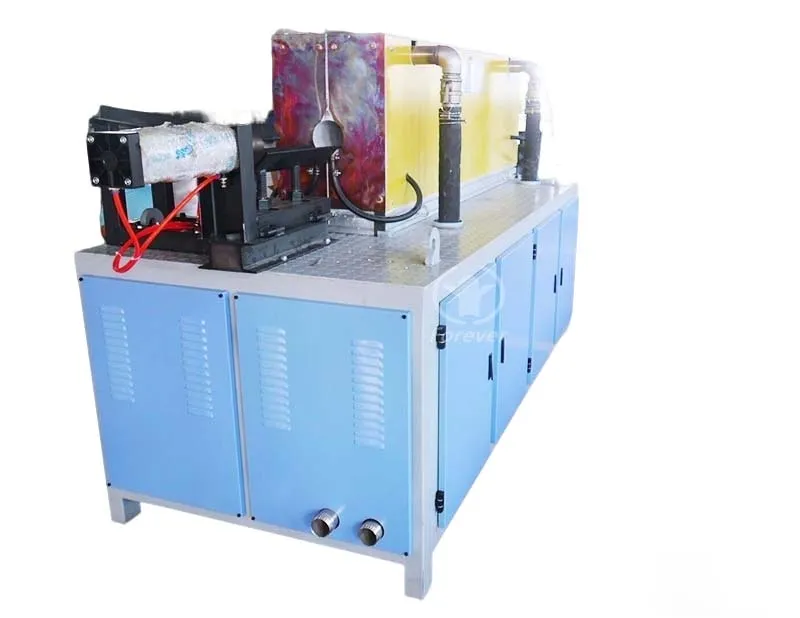

Local induction heating furnace for bar materials

The round bar local heating furnace, bar local heating equipment, and steel bar induction heating furnace are designed and produced by Forever Electromechanical. Forever Electromechanical induction heating equipment is mainly used in medium frequency furnaces for local heating of round steel and online forging of metal materials (such as precision forging of gears, half shaft connecting rods, bearings, etc.)

Inquire Now Next Product

Product Details

[Equipment power]

100KW-500KW

[Device frequency] 200Hz-6000HZ

[Control System] PLC Intelligent Electrical Control

[Heating Types]: Carbon steel, alloy steel, high-temperature alloy steel, diamagnetic steel, stainless steel, titanium material, aluminum alloy, copper alloy, etc

Forever Electromechanical Equipment Manufacturing Co., Ltd. has a complete production base for local heating furnaces for round bar materials. The professional production of local heating equipment for bar materials is controlled by a PLC fully automatic intelligent system, adopting closed-loop temperature control, uniform heating, precise control, and quality assurance. Forever Electromechanical provides users with free technical solutions and quotations for steel bar induction heating furnaces.

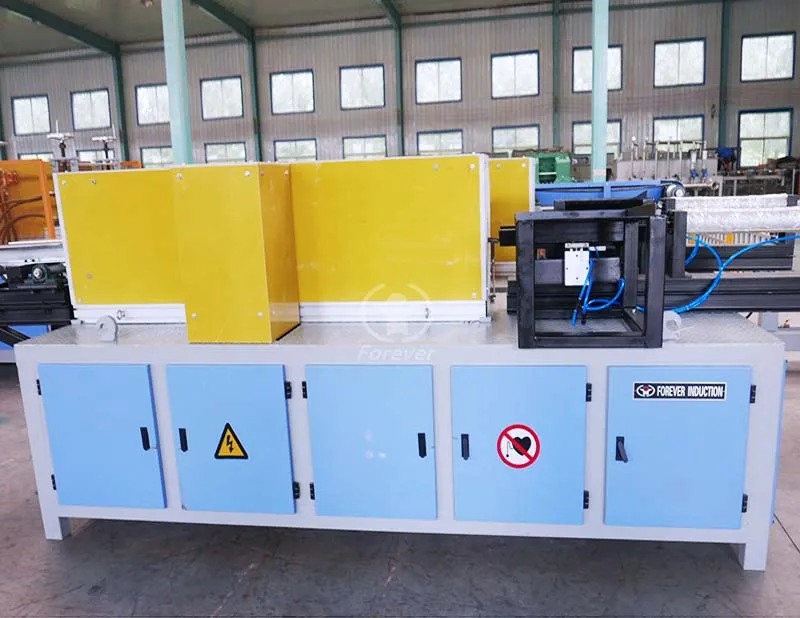

Local induction heating furnace for bar materials

Function characteristics of intermediate frequency power supply

Function characteristics of intermediate frequency power supply for local heating furnace of round bar material:

Variable frequency adaptive: After process adjustment and load changes, the power frequency automatically tracks and jumps to the optimal resonant frequency of the load. Variable frequency adaptive range of 5OkHz

Variable load adaptation: After process adjustment and load changes, the power supply and load are automatically matched to the optimal working state, achieving high production efficiency, quality consistency, and equipment reliability.

Automatic power adjustment: stepless adjustment range of 10% -100%. The power and temperature linkage of IGBT variable frequency induction power supply is extremely strong, and the precise and stable control of heating temperature is achieved through the power and temperature automatic control system.

High power factor: With any load matching and 10% -100% power output, the power factor is greater than 0.93, eliminating the need for a separate power compensation device. This not only reduces equipment investment but also allows users to reduce electricity costs, improve power supply capacity, lower high-order harmonics, and enhance power quality.

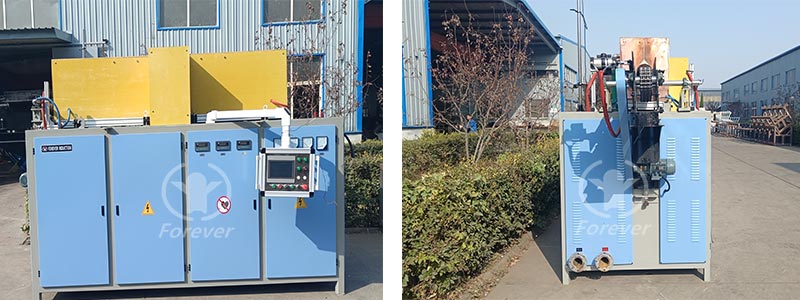

Local induction heating furnace for bar materials

Advantages

Advantages of Forever Electromechanical Bar Material Local Heating Equipment:

1. By non-contact heating of the workpiece, the heating temperature is high and the speed is fast;

2. The bar heating equipment adopts medium frequency current heating to achieve energy-saving production;

3. Due to the fast heating speed of the local heating furnace for round bar materials, it is not easy to cause oxidation skin and other phenomena on the workpiece;

4. The local heating equipment for bar materials controls the temperature accurately, ensuring product quality and being more energy-efficient;

5. Local heating can be selected as needed, such as at the end or middle of the workpiece, with minimal deformation and low energy consumption;

6. The steel bar induction heating furnace adopts PLC centralized operation control, saving time and effort;

7. Induction heating furnace production does not produce noise, dust, exhaust gas, smoke, etc;

8. The production range of local heating equipment for bar materials is wide, and it can customize induction coils to heat workpieces with complex shapes.

After sales service

After sales service for local heating furnace for round bar materials

Fault response

After the equipment provided by Forever Electromechanical malfunctions, the buyer shall immediately notify our company. For operational faults, our company should provide answers within four hours of receiving the fault notification; For the local heating equipment failure of the bar material, the company will send technical personnel to the site within 24 hours after receiving the fault notification to handle it. Other services: At the request of the buyer, the company's technical personnel provide other services as requested by the buyer.

1. Accessory replacement:

For damage to the steel bar induction heating furnace caused by component quality issues during the warranty period, the company will provide on-site service and free repair and replacement of damaged equipment. Due to equipment damage caused by human factors, the company has an obligation to replace the damaged induction heating equipment.

2. Services during the warranty period:

The local heating equipment for bar materials has a warranty period of 12 months after it is put into operation. If the equipment or corresponding accessories are damaged during the warranty period, the company is responsible for compensation or free repair.

3. Services after the warranty period:

After the warranty period, the company will continue to provide after-sales service for any damage to the local heating equipment of the bar material during the buyer's use. We only charge material fees for lifetime service and maintenance of the products provided by our company.

Company

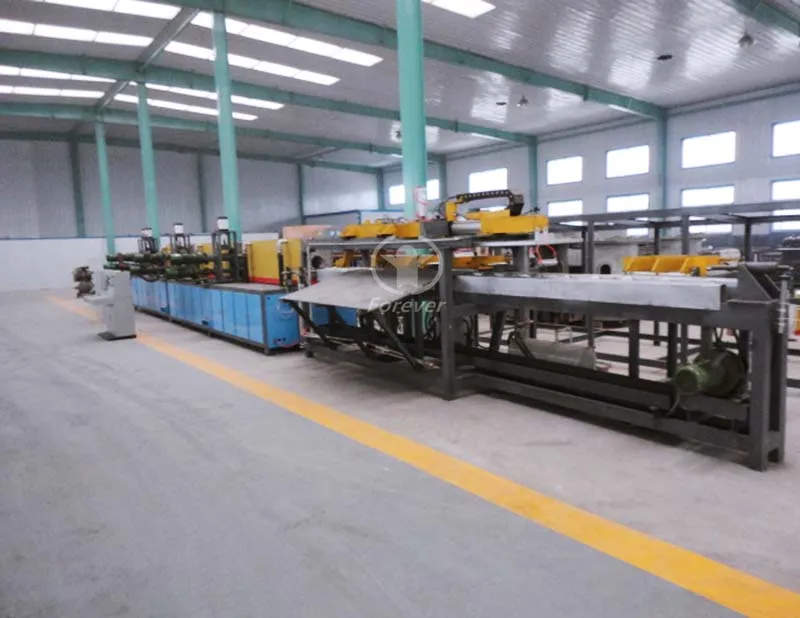

Local induction heating furnace for bar materials
