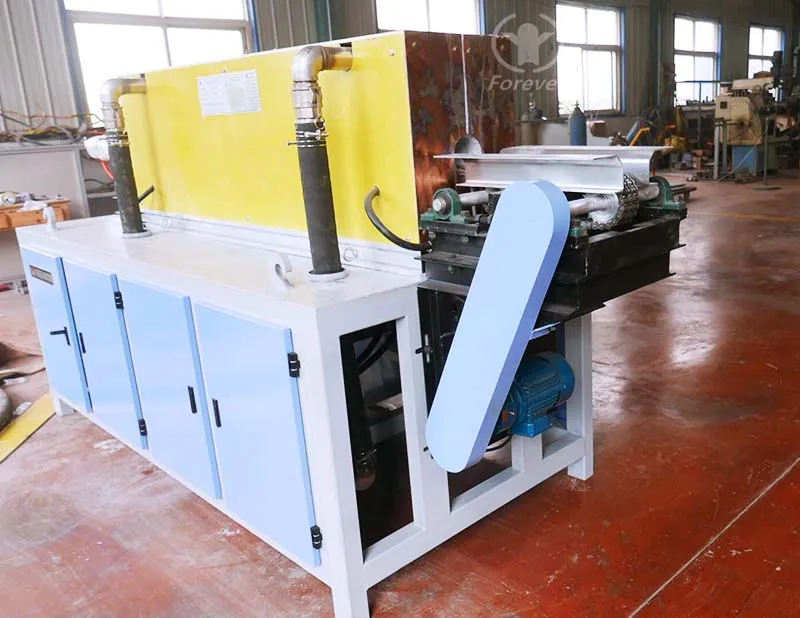

Rod induction heating equipment

Main technical parameters of the equipment: Power supply system: 200KW-6000KW or IGBT 200~2000KW, hourly output of 0.2-16 tons. Energy conversion: Heating to 930 ° C~1050 ° C, consuming 260~280 degrees of electricity. ·Elastic adjustable pressure roller: enables uniform feeding of round steel bars of different diameters. The roller conveyor and pressure roller between the furnace bodies are made of 304 non-magnetic stainless steel and water-cooled. ·Infrared temperature measurement: Install an infrared temperature measurement device at the discharge end to ensure consistent temperature of the bar before entering the rolling mill

Inquire Now Next Product

Main technical parameters

Main technical parameters of bar heating equipment:

Workpiece materials: B2, B3, B6, 70Cr2, 75Mncr, 65Mn, 60Mn, GCr15, 40Cr, 45 #

Power supply system: 200KW-6000KW or IGBT 200-2000KW, with an hourly output of 0.2-16 tons.

Storage system: A storage platform made of welded thick walled square tubes.

Sensor design: variable pitch, temperature gradient design, higher efficiency.

Elastic adjustable pressure roller: enables uniform feeding of round steel bars of different diameters. The roller conveyor and pressure roller between the furnace bodies are made of 304 non-magnetic stainless steel and water-cooled.

Infrared temperature measurement: Install an infrared temperature measurement device at the discharge end to ensure consistent temperature of the bar before entering the rolling mill.

Energy conversion: Heating to 930 ° C~1050 ° C, consuming 260~280 degrees of electricity.

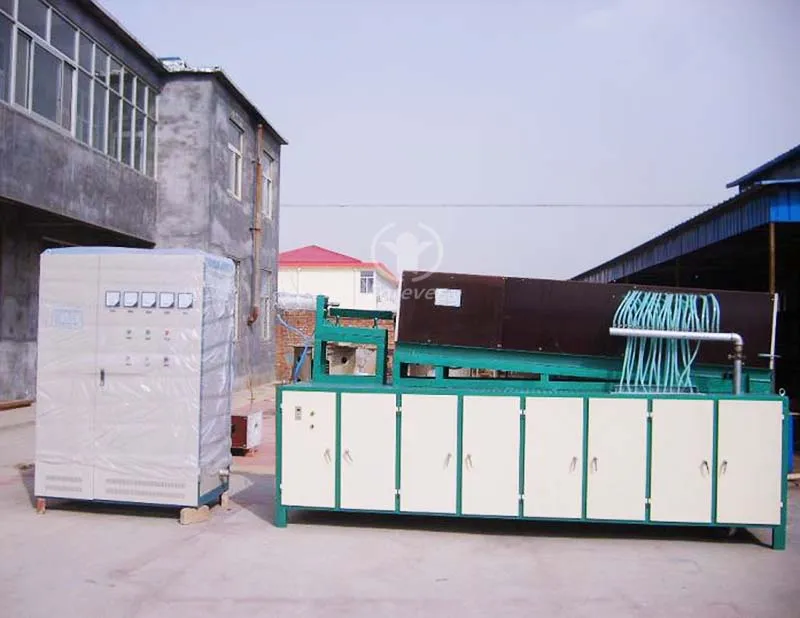

Rod induction heating equipment

Advantages and characteristics

Advantages and characteristics of bar heating equipment:

Fast heating speed, less oxidation and decarburization

Due to the principle of medium frequency induction heating being electromagnetic induction eddy current heating, which generates heat from the workpiece itself, the bar heating furnace has a fast heating speed, less oxidation, high efficiency, and good process repeatability.

·High degree of automation, capable of fully automated operation

By using an automatic feeding mechanism and an automatic sorting device for discharge, the bar heating furnace can be fully automated with an industrial computer or human-machine interface.

Uniform heating temperature and high temperature control accuracy

The heating temperature is uniform and the radial temperature difference is small. The temperature can be precisely controlled through an automatic temperature control system.

The sensor has a long service life and is easy to replace

The lining of the bar heating furnace is made of silicon carbide or integral knotting method, with a service temperature of 1250 ° C or above, and has good insulation and thermal insulation properties, as well as resistance to rapid cooling and impact

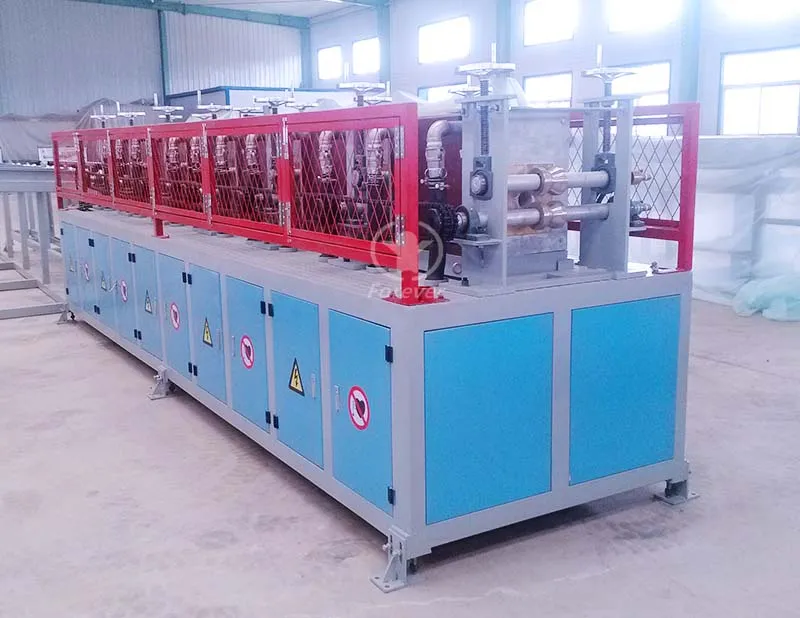

Rod induction heating equipment
