Round steel forging heating furnace

Main technical parameters of the equipment: Power supply system: Dual rectification twelve pulse 1600KW/500Hz intelligent intermediate frequency power supply. Energy conversion: Heating one ton of steel to 1050 ° C consumes 310-330 kWh of electricity. ·Feeding system: Double pinch roller pneumatic pressure, continuous feeding, feed speed infinitely variable speed adjustment. ·Discharge system: consisting of gas-liquid booster cylinder, linear guide rail, opening and closing clamp head, and PLC system to form a fast discharge robotic arm. ·Main application: Medium frequency induction heat transfer forging of round steel and bar materials.

Inquire Now Next Product

Product Details

Main technical parameters of round steel forging heat transfer furnace:

Main application: Medium frequency induction heat transfer forging of round steel and bar materials.

Power supply system: Dual rectification twelve pulse 1600KW/500Hz intelligent intermediate frequency power supply.

Storage system: A storage platform made of thick walled square tubes welded together, with a slope of 13 °, capable of storing 6-8 pieces of material.

Feeding system: Double pinch roller pneumatic pressure, continuous feeding, feed speed infinitely variable speed adjustment.

Discharge system: consisting of gas-liquid booster cylinder, linear guide rail, opening and closing clamp head, and PLC system to form a fast discharge robotic arm.

Sorting system: composed of infrared thermometer, chain conveyor, and guiding cylinder.

Energy conversion: Heating one ton of steel to 1050 ° C consumes 310-330 kWh of electricity.

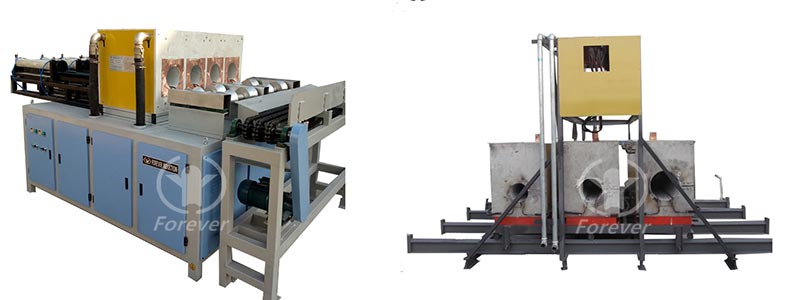

Round steel forging heating furnace

Advantages and characteristics

Advantages and characteristics of round steel forging through heat furnace:

·Less oxidation and decarbonization

Due to the heat generated inside the heated workpiece, the heating speed is fast, the efficiency is high, the surface of the workpiece is less oxidized and decarburized, and raw materials are saved.

·Uniform heating temperature, high temperature control accuracy, small temperature difference, and no pollution

The Yuantuo series variable frequency power supply is easy to directly and accurately detect changes in load current, thereby achieving closed-loop control of output power. The product has high precision in heating temperature control and small temperature difference between the core and the surface. There will be no harmful gases, smoke, or other environmental pollutants during the production process.

·High success rate and reliability of startup

At the beginning of heating, it can be quickly started at any temperature and load, with a high success rate. And through temperature automatic compensation technology, it quickly heats up to avoid loss of startup waste and improve production efficiency. Avoiding downtime and waste loss.

Temperature closed-loop control system

Infrared thermometer measures the heating temperature of the billet at the outlet of the induction furnace, monitoring for overheating or incomplete heating. After temperature monitoring, the signal is finally fed back to the induction heating host, and the power supply automatically recognizes it according to the set process requirements to control the temperature of the billet within the target range.
