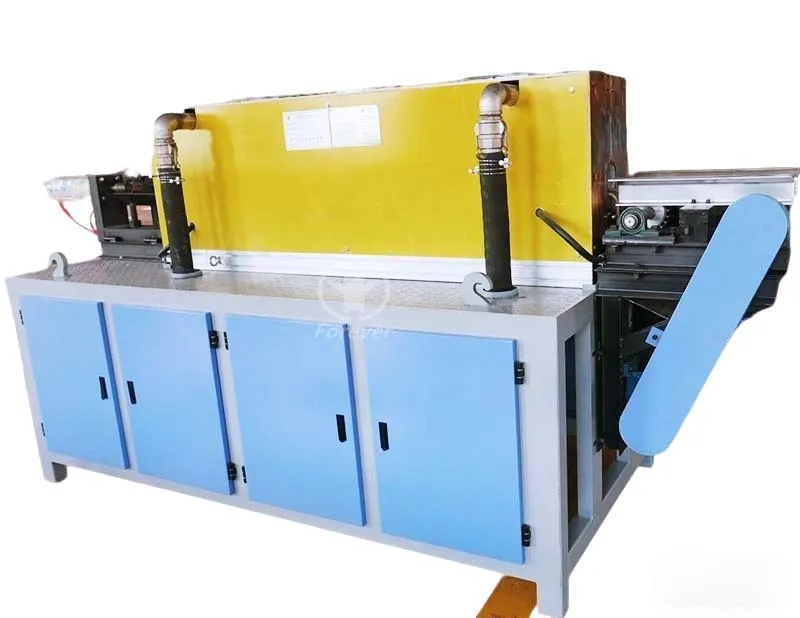

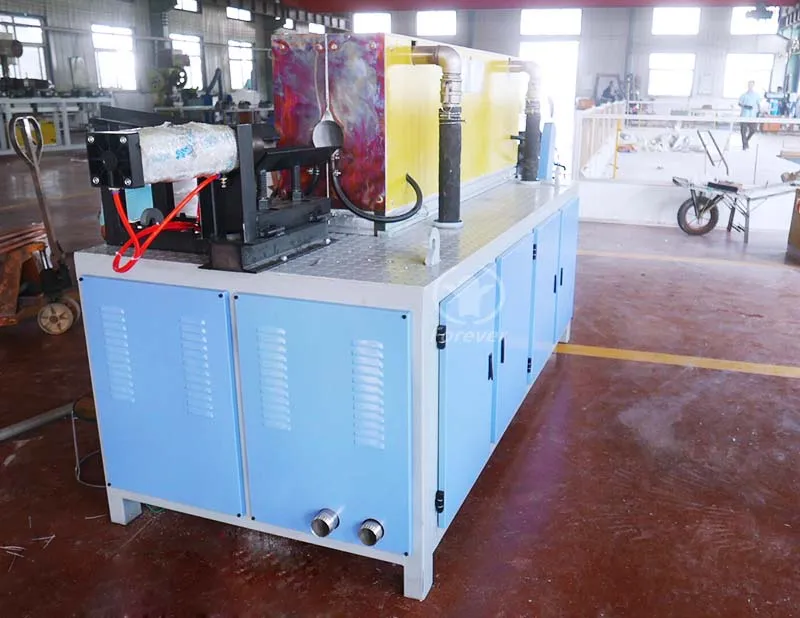

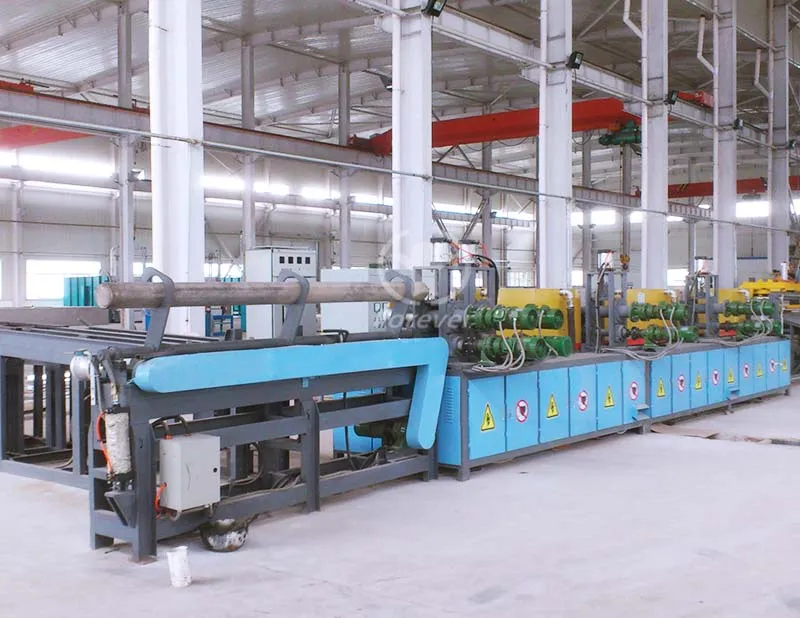

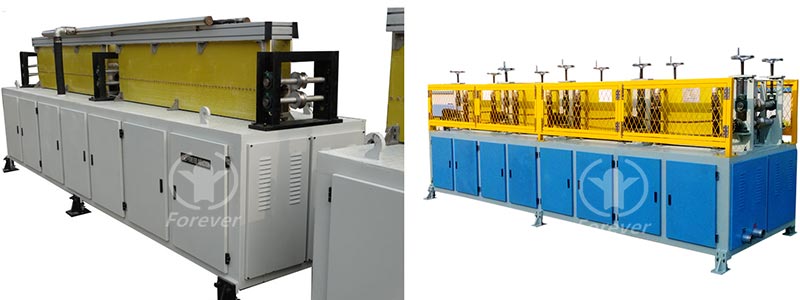

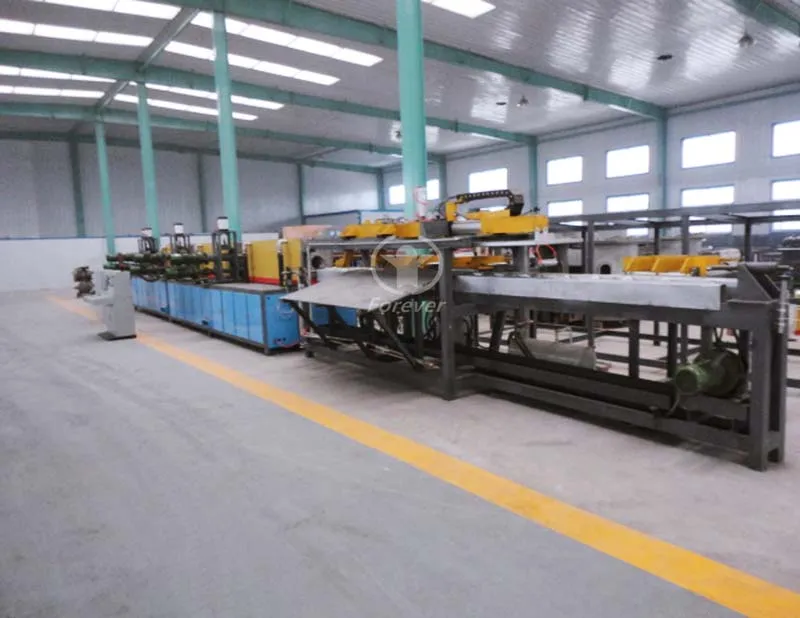

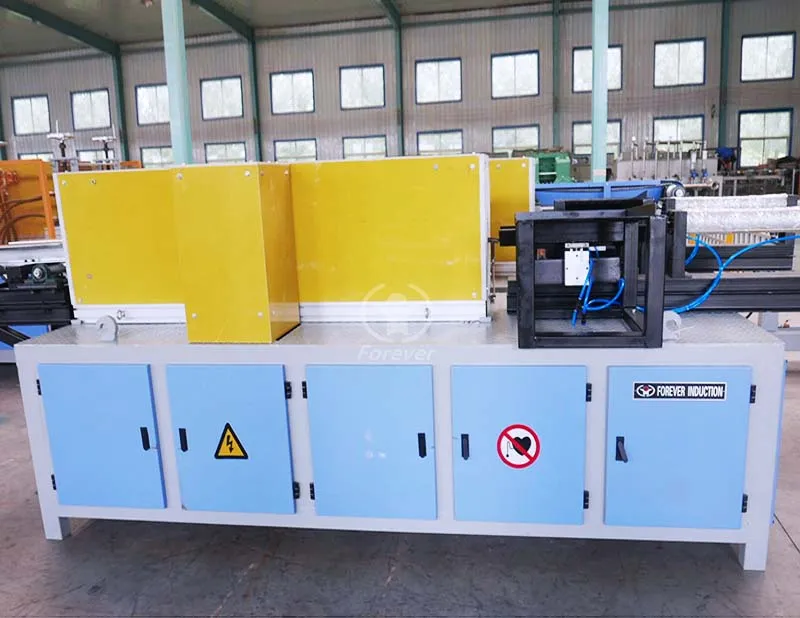

Step by step induction heating furnace

The stepper induction heating furnace produced by Forever Electromechanical Equipment Factory has two pairs of water-cooled guide rails, and one pair of movable guide rails supports the blank for horizontal movement, increasing the gap between the induction coil and the blank, increasing magnetic leakage, reducing the heating efficiency of the inductor, and increasing the power consumption ratio

Inquire Now Next Product

Product Details

Forever Electromechanical Induction Heating Equipment Manufacturer, relying on cooperative research and promotion of high-tech and high-quality stepper induction heating furnaces, has been engaged in the research and manufacturing of stepper induction heating equipment. With the spirit of striving for progress and sharing achievements, and a good reputation, it has a considerable reputation in the induction heating equipment manufacturing industry. If you are looking for an aluminum alloy medium frequency forging heating furnace, please choose Forever Electromechanical! More professional!

The basic feature of a walking beam continuous casting steel billet heating furnace is that the steel billet moves on the bottom of the furnace through the reciprocating motion of a rectangular trajectory of a movable walking beam at the bottom of the furnace, and the steel billet placed on the fixed beam is fed into the discharge end step by step. The Yuantuo Forever electromechanical stepper induction heating equipment mainly consists of sensors, stepper mechanisms, insulation covers, and homogenization chambers. Not only does it have rich experience in designing and manufacturing commonly used forging and heat treatment equipment, but it is also skilled in heating applications for special and irregular workpieces, which can meet various heating requirements of users.

Step by step induction heating furnace

advantages

The Forever electromechanical stepper induction heating furnace has the following advantages:

1. It can heat various sizes and shapes of billets, especially suitable for heating production of large slab billets and irregular billets;

2. The production capacity of the steel billet heating furnace is large, and the strength of the furnace bottom can reach 800. Compared with the push type furnace for heating the same amount of steel billets, the length of the furnace can be shortened by 10% -15%;

3. The length of the furnace is not limited by the pushing steel ratio, and there will be no occurrence of arch steel or sticking steel;

4. The stepper induction heating furnace has great flexibility. By changing the distance between steel billets while keeping the furnace length constant, the number of billets in the furnace can be adjusted to meet the needs of production changes. And the step cycle is also adjustable. Increasing the step distance can shorten the time of the steel billet in the furnace, thus adapting to the heating requirements of different steel grades

Due to the fact that the steel billet does not slide on the furnace bottom slide rail, there will be no scratches on the lower surface of the steel billet, and the“ Black Seal” Less, good heating quality;

When the rolling mill malfunctions or stops rolling, the stepper induction heating equipment can remove the steel billet from the furnace to prevent oxidation and decarburization caused by the steel billet staying in the furnace for a long time;

7. It can accurately calculate and control the heating time, facilitating the automation of the heating process.

Product Service

1. Our company has established a strong emergency maintenance service team, consisting of experienced on-site engineers and senior technicians who can quickly solve any problems that arise by phone or arrive at the scene for repair and replacement;

2. Within one week of delivery of the stepper induction heating furnace, our company's after-sales service department staff will conduct telephone tracking and consultation based on the customer's contact information until the customer is satisfied;

3. Any costs related to product quality during the shelf life of the stepper induction heating equipment will be borne by our company. Due to improper use by your side or natural environment during the warranty period, we will provide free maintenance. The materials and accessories used for maintenance will only be charged at cost price;

4. For stepper induction heating furnaces that have exceeded the warranty period, our company promises to conduct regular on-site inspections and maintenance for life;

5. Our company promises that all maintenance personnel will be on call to better solve problems for customers and ensure the normal operation of equipment.
