Steel pipe induction annealing furnace
Forever Electromechanical is a high-tech innovative enterprise specializing in the production and manufacturing of medium frequency induction heating equipment. We specialize in providing customers with excellent solutions and services for steel pipe induction annealing equipment systems. Make your product more competitive.
The purpose of using a steel pipe annealing production line for annealing is:
1. Reduce hardness and improve machinability.
2. Eliminate residual stress, stabilize dimensions, reduce deformation and crack tendency.
3. Refine grain size, improve structure, and eliminate structural defects.
4. Uniform material organization and composition, improving material properties and preparing for future heat treatment.
Main technical parameters of steel pipe induction annealing equipment
● Applicable workpieces: Suitable for steel pipe induction annealing furnace, seamless steel pipes, carbon steel alloy steel pipes, etc.
● Power supply system: KGPS160KW-8000KW.
● Workpiece size: diameter 10mm to 406mm, length greater than 2m.
● Guidance system: using 304 non-magnetic stainless steel guide wheels, high-precision digital encoder automatically locates different workpiece heights.
● Temperature closed-loop system: Forever's unique feedforward+feedback joint control method automatically matches the power supply range based on the inlet temperature and position, and further corrects the power value based on the outlet temperature feedback system.
● Formula management function: A powerful formula management system that automatically calls relevant parameters after entering the steel grade, outer diameter, and wall thickness parameters to be produced, eliminating the need to manually record, view, and input the required parameter values for various workpieces.

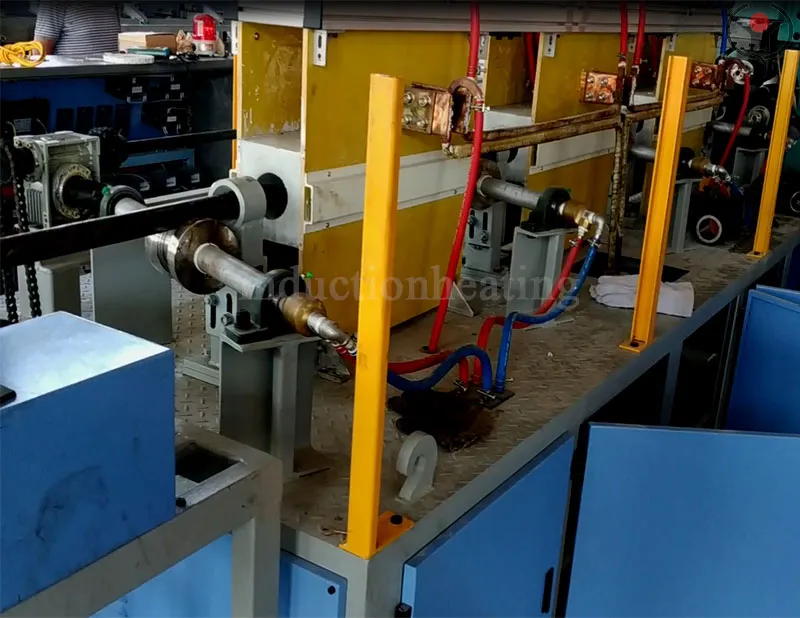

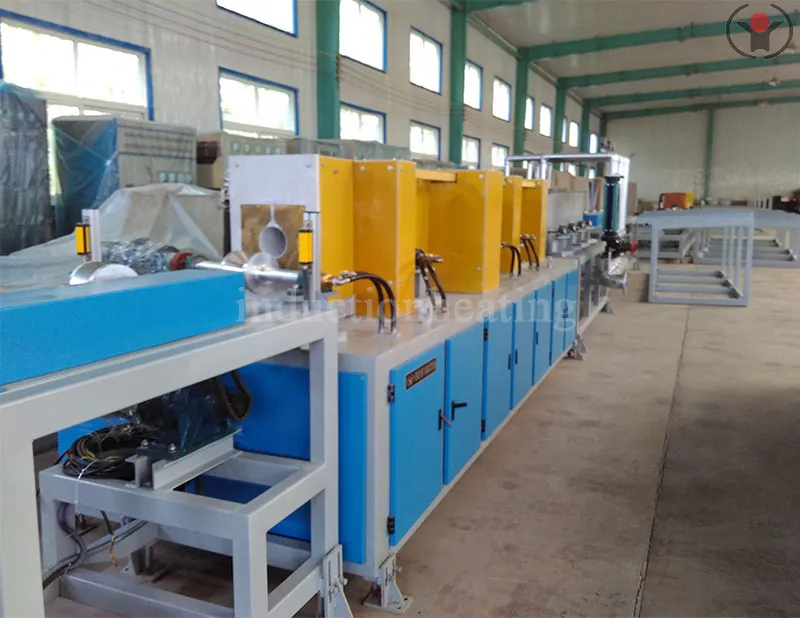

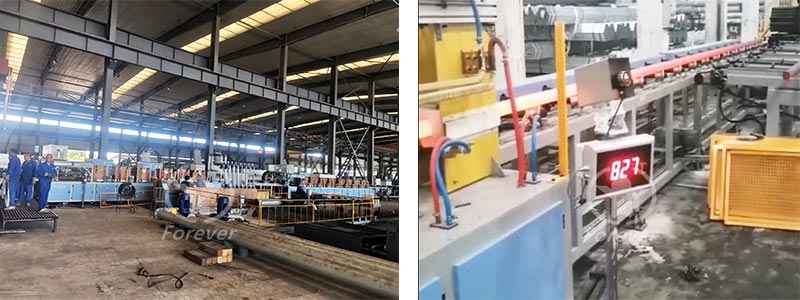

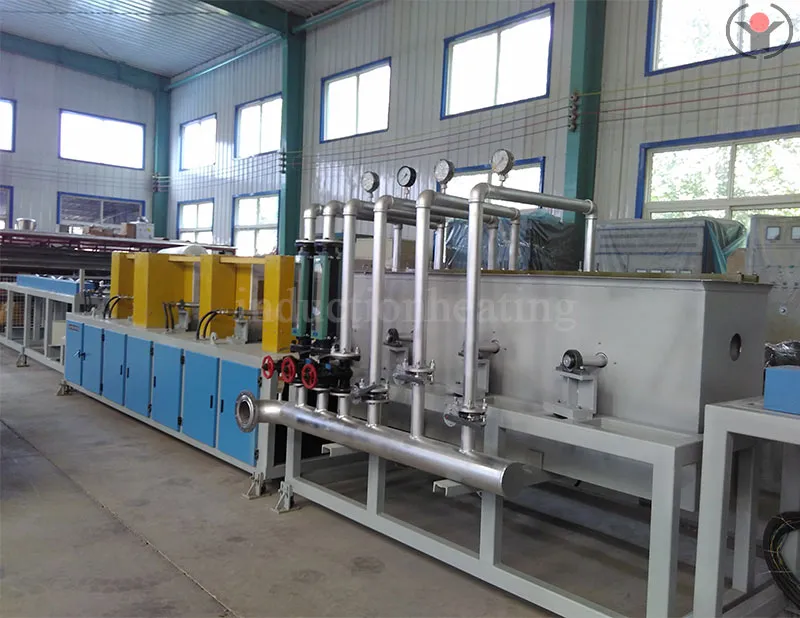

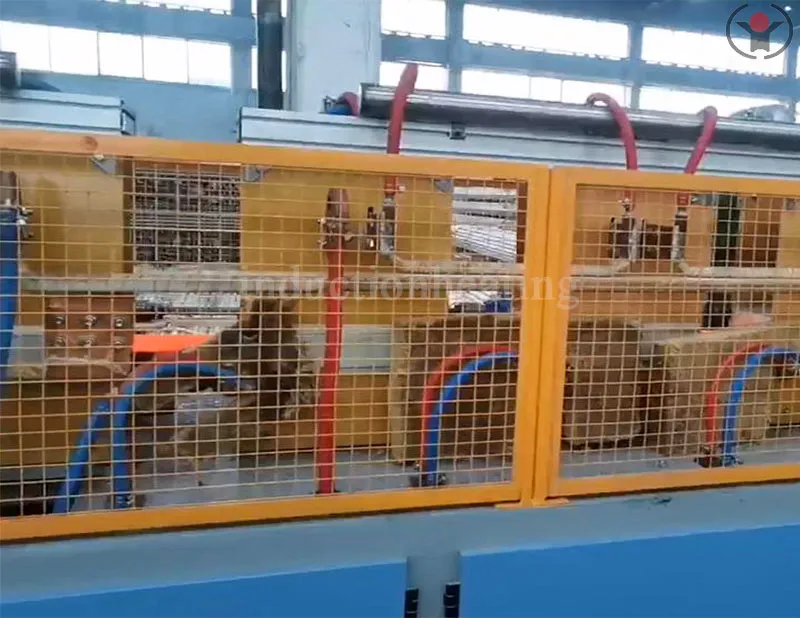

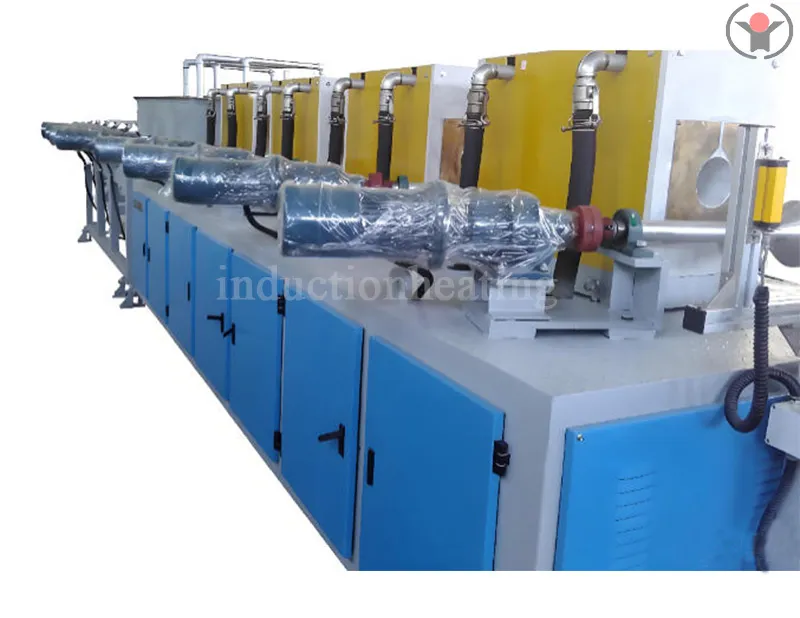

Steel pipe induction annealing case

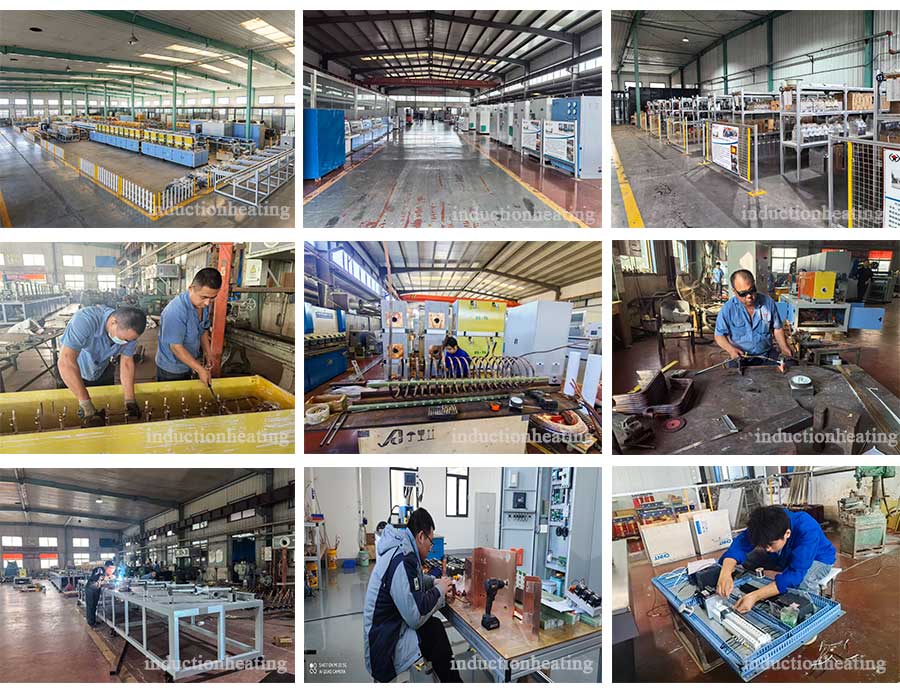

Workshop
Customer visiting
Transportation
Contact Us
If you are also interested in this machine,please don’t hesitate to contact us:
Overseas manager: Tom Wang
Email:tom@foreverfurnace.com
Phone/Wechat/Whatsapp:+86 13303078975
