Induction heat treatment production line

Forever is a professional manufacturer of medium frequency induction heat treatment equipment, specializing in the production of induction hardening equipment, induction quenching and tempering lines, heat treatment annealing furnaces, etc., with nearly 20 years of research and development and production history of induction heat treatment equipment. Forever's main products include steel bar induction heat treatment equipment, steel bar quenching and tempering systems, etc

Inquire Now Next Product

advantages

The intermediate frequency heat treatment production line designed by Forever Electromechanical has the following advantages:

(1) Online continuous heating, quenching, tempering, with high degree of automation. Only two people are needed to operate the complete set of equipment.

(2) Heating adopts electromagnetic induction heating and spray cooling, with an efficiency 2-3 times higher than that of a resistance furnace. After quenching and tempering, the power consumption per ton is less than or equal to 500 degrees, far lower than that of resistance heating.

(3) After heat treatment, the metallographic structure becomes finer and the mechanical strength is 10-15% higher than that of resistance furnace treatment, resulting in good product consistency.

(4) The complete equipment is equipped with a computer control system, which continuously monitors and automatically records power parameters, mechanical parameters, quenching and tempering heat treatment parameters, and fault alarms, achieving parameter plasticity.

(5) According to different specifications of raw materials and process requirements, different conveying methods are selected, and the line speed can be adjusted through frequency conversion to meet the requirements of output and straightness.

(6) The spray system adopts multi-stage spray cooling, and the pressure and flow rate between the spray rings at each level can be adjusted. Meet the requirements of different permeability.

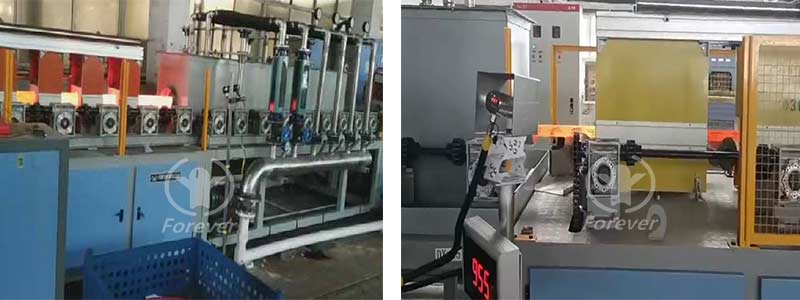

Induction heat treatment production line
