Forged Steel Ball Production Line: Automation & Energy‑Saving Reshape Global Grinding Media Manufacturing
By Forever Electromechanical
Global Market Demands Higher‑Quality Forged Steel Ball Solutions
The global forged steel ball market maintains steady growth, driven by mining, cement, thermal power and mineral‑processing industries. Plant operators are no longer only chasing output volume; they attach greater importance to steel ball roundness, hardness consistency, anti‑spalling performance and overall production‑line operating cost. Traditional semi‑manual production lines face obvious pain points: unstable heating temperature, high oxidation loss, heavy labour dependence and high defective‑product ratio, which can hardly satisfy modern large‑scale grinding‑media manufacturing requirements.

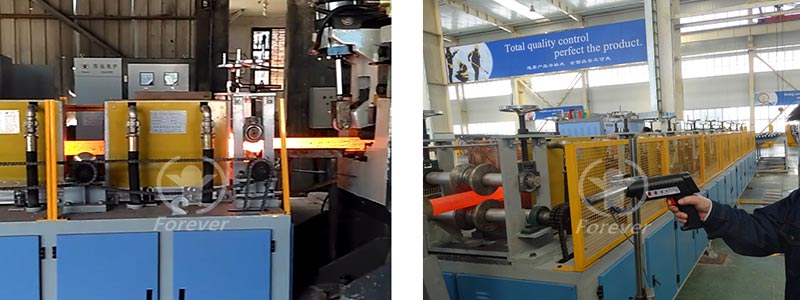

Forged steel ball production line
Emerging markets in Southeast Asia, Latin America and Eastern Europe keep expanding investment in ball‑mill supporting facilities. Local steel‑ball manufacturers urgently need complete, turn‑key automated production lines instead of scattered single machines. This pushes equipment suppliers to upgrade core technologies covering feeding, induction heating, forging‑rolling forming, online quenching‑tempering and intelligent sorting, to realize full‑process closed‑loop manufacturing.
Core Technical Upgrade of Modern Forged Steel Ball Production Line
Induction heating unit acts as the heart of the whole forged steel ball production line. Forever Electromechanical optimizes IGBT medium‑frequency induction heating system for steel‑ball hot processing, realizing fast and uniform heating of steel billets and steel bars within 930‑1050℃, with temperature fluctuation controlled within ±10℃. Precise heating effectively lowers surface oxidation and decarburization, laying solid foundations for follow‑up forging and rolling.
Automatic casting grinding ball making machine
Different from intermittent discrete production, the new‑generation line adopts continuous hot‑rolling forging technology. It connects automatic feeding, induction heating, skew‑rolling forming, online heat‑treatment and finished‑product screening into one integrated system under PLC central control. Production capacity ranges from 0.2‑16 tons per hour, flexibly producing forged steel balls of 20‑200 mm diameter. Final finished steel balls reach HRC58‑65 surface hardness with qualified impact toughness, meeting rigorous operating standards of heavy‑load ball mills.
Energy‑saving performance becomes another core competitive indicator. Optimized induction power unit cuts unit power consumption down to 260‑280 kWh per ton, far superior to old‑style resistance furnaces and coal‑fired heating furnaces. Modular structure simplifies on‑site installation, commissioning and daily maintenance, supporting one‑person auxiliary operation for the whole line and greatly compressing labour cost for end users.
Practical Difficulties Faced by End‑users in Actual Project Operation
Many steel‑ball manufacturers meet realistic bottlenecks when updating production lines. First, raw‑material grade fluctuation brings challenges to heating‑parameter matching. Different alloy steel grades require corresponding adjustment on heating power, holding time and quenching process, otherwise steel balls may suffer uneven hardness or early spalling during service. Second, some customers lack supporting automatic detection equipment; offline manual inspection cannot keep pace with high‑speed continuous production. Third, investment budget gap exists: small‑and‑medium factories expect low‑threshold transformation solutions, while large‑scale enterprises pursue fully‑unmanned intelligent workshops.
For above‑mentioned pain points, Forever Electromechanical provides differentiated customized services. According to customer’s target capacity, steel‑ball specification range, local power‑supply condition and budget, the team configures matched induction heating power, forming unit and post‑processing module, rather than applying unified standard configuration for all projects. Partial‑transformation upgrade solution is available for old workshops, helping customers reconstruct existing equipment to save renovation investment.
Outlook: Intelligent, Green and Customized Will Lead Industry Development
Looking ahead, the
hot rolled steel ball equipment industry will move toward three major directions: higher‑level automation, deeper energy‑saving & environmental‑protection, and flexible personalized customization. Intelligent online non‑destructive testing will be widely applied to realize real‑time monitoring on hardness, roundness and internal defects, lowering defective‑product rate. Waste‑heat recovery modules will be further popularized to reduce comprehensive carbon emission of steel‑ball factories.
As a supplier focusing on induction heating and forging complete‑set equipment, Forever Electromechanical keeps investing in R&D of forged steel ball production‑line. Based on abundant overseas project experience, the company delivers stable turn‑key solutions for global grinding‑media manufacturers, helping clients improve product competitiveness and seize market opportunities amid industry transformation.
