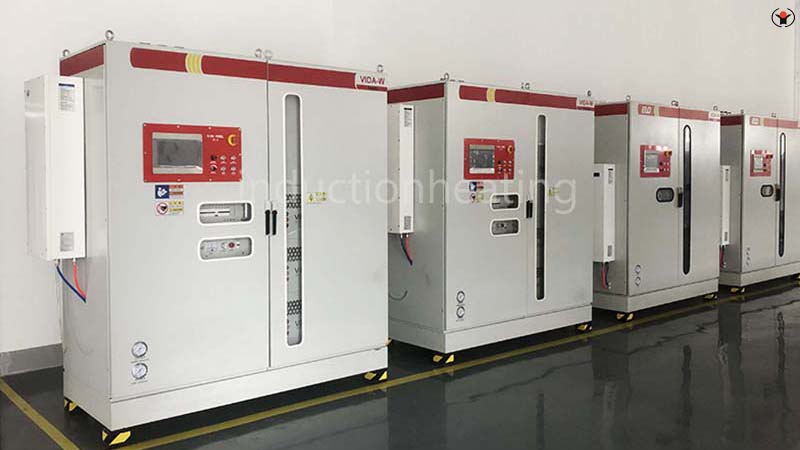

high power IGBT series resonance power supply

As high-end manufacturing, metallurgical heating, precision heat treatment and other industrial fields evolve toward high efficiency, intelligence and low energy consumption, traditional industrial power supplies are increasingly hampered by poor adaptability, high energy loss and complicated operation and maintenance. Against this backdrop, the upgraded High Power IGBT Series Resonance Power Supply has completed comprehensive technical iteration. Featuring optimized topology, intelligent regulation and full-range protection, it solves the industry pain points of low energy efficiency and unstable operation under high-power working conditions, emerging as a core device in the field of industrial high-power power conversion.

Intelligent adaptive regulation serves as the core competitiveness of the power supply. Equipped with intelligent frequency tracking and dynamic load matching algorithms, the device collects real-time data including load impedance, operating temperature and working current. It can automatically adjust the resonant frequency and lock the optimal resonance point in complex scenarios such as workpiece replacement, sudden load changes and fluctuating working conditions, realizing fully unattended operation. Supported by the current inner loop sliding mode control technology, the equipment recovery time under sudden load changes is less than 200μs with the power overshoot controlled within 5%. It effectively eliminates common defects of traditional power supplies such as frequency deviation, power fluctuation and excessive reactive power loss, maintaining a stable operating efficiency of over 92% under full-load conditions.

In terms of operating loss and equipment stability, the intelligent soft switching technology delivers revolutionary optimization. The system precisely controls IGBT devices to realize ZCS zero-current soft turn-on and ZVS zero-voltage soft turn-off, which significantly reduces switching loss and electromagnetic interference and extends the service life of core IGBT components. Meanwhile, it is equipped with a full-coverage intelligent fault diagnosis system that monitors potential risks including overcurrent, overvoltage, overheating and resonance abnormality in real time, with functions of fault early warning, intelligent shutdown and data traceability. Matched with a high-efficiency water-cooling heat dissipation structure, it supports 24-hour uninterrupted continuous industrial operation.
