Intelligent Steel Ball Production Line Reduces Crack Defects

Forever Electromechanical Launches Intelligent Steel Ball Line to Cut Crack Defect Rate

Crack Defects Become Major Barrier for Traditional Steel Ball Manufacturing

Grinding steel balls are widely applied in mining, cement and thermal power industries. Cracks, both surface and internal, remain one of the most common and costly defects for steel ball manufacturers. In conventional production, manual parameter adjustment, unstable heating temperature and uncontrolled quenching cooling speed easily create excessive residual stress. Uneven temperature distribution during bar heating leads to inconsistent metallographic structure. After hot rolling and quenching, microcracks may expand under impact load, causing ball breakage in service. Traditional discrete equipment lacks real-time data feedback; operators can only check finished products after processing. Once cracks appear, a whole batch of workpieces may be scrapped, raising material waste and production cost. To tackle this persistent quality challenge, Forever Electromechanical releases its upgraded intelligent steel ball production line focused on crack prevention, delivering integrated forming and heat treatment solutions for global grinding media factories.

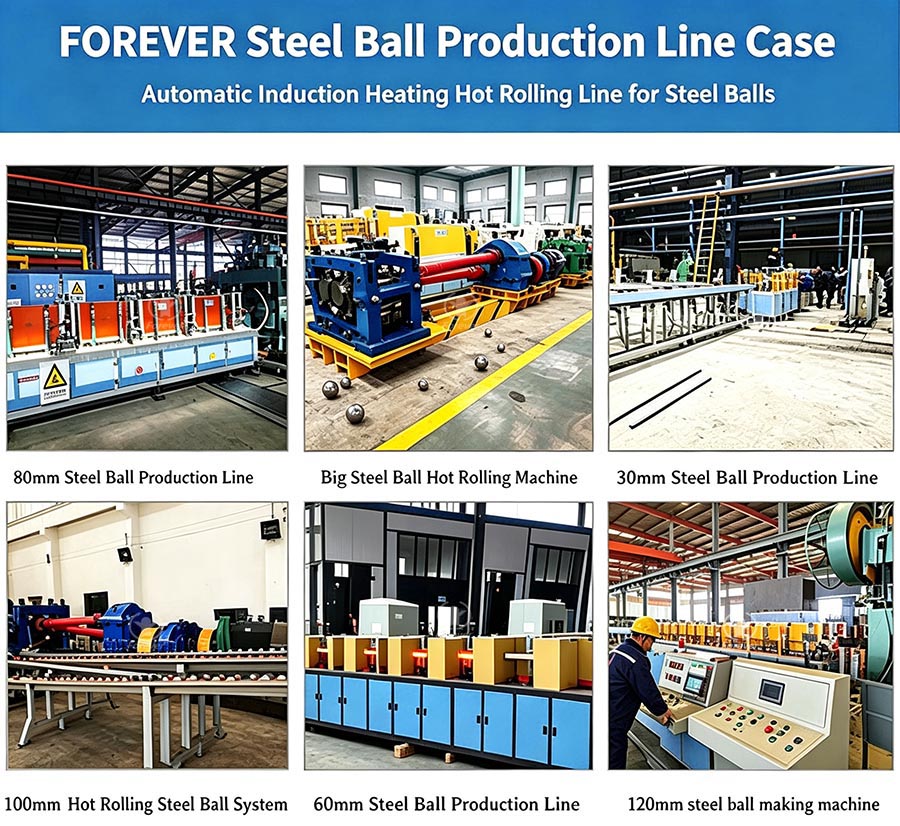

Forged steel ball production line

Intelligent Induction Heating System Eliminates Thermal Gradient Risks

At the core of the new line is the digital IGBT medium-frequency induction heating system. Multi-point infrared temperature sensors collect real-time blank temperature and feed data back to the PLC closed-loop control platform. The system automatically adjusts power output and conveying speed to maintain uniform temperature across steel bar cross-section, removing large temperature gaps between surface and core. Stable heating greatly lowers thermal stress, which is the primary trigger of initial microcracks. Compared with conventional heating methods, induction heating completes heating rapidly, reducing surface oxidation and decarburization. Every raw steel bar follows saved process recipes according to material grade and target ball diameter. Parameters are locked automatically to avoid human errors, keeping heating consistency for every workpiece entering the rolling mill.

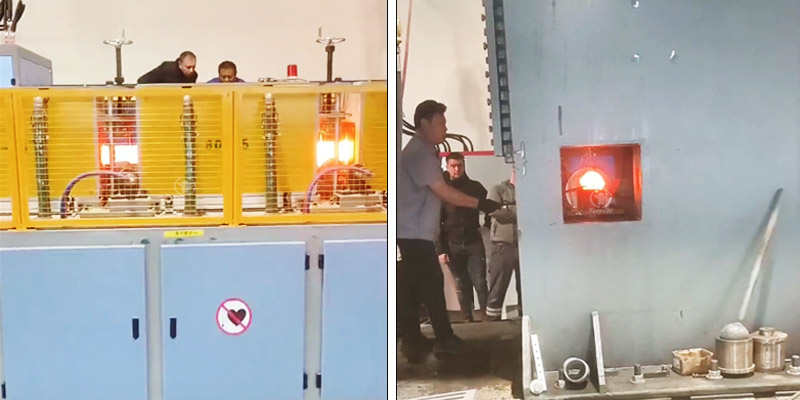

Forged steel ball induction heating machine

Integrated Rolling & Heat Treatment Controls Residual Stress

The full production workflow connects automatic feeding, centering, induction heating, skew rolling forming, segmented spray quenching and continuous tempering into one continuous line. After hot rolling, newly formed steel balls transfer directly to quenching station without cooling down in the air. Adjustable annular spray nozzles deliver balanced cooling flow, preventing rapid uneven cooling that causes cracking. The subsequent tempering section releases internal residual stress and refines metal grain structure. This seamless thermal processing stabilizes hardness and improves impact toughness. The line supports flexible switching between carbon steel and alloy steel balls. Process recipes can be saved and recalled with one click for different specifications, minimizing quality fluctuation during product changeover.

Online Defect Monitoring Enables Real-time Quality Early Warning

Forever Electromechanical adds online detection modules to the intelligent line. Sensors track temperature, rolling pressure and dimensional data throughout production. Abnormal parameter fluctuations will trigger automatic alarms before visible cracks form. The system records full manufacturing data for every batch, supporting traceability for quality analysis. The intelligent platform also supports remote monitoring and fault diagnosis for overseas users. Engineers can check operation status remotely and adjust process parameters, shortening troubleshooting cycles and reducing unexpected downtime.

Low Scrap Rate & Stable Operation Benefit Global Grinding Media Producers

The intelligent steel ball line significantly reduces crack-related scrap loss, while the high power-factor IGBT heating power supply cuts overall energy consumption. Modular coil and mechanical design simplifies maintenance, supporting 24-hour continuous mass production. Forever Electromechanical provides full service covering process simulation, equipment fabrication, site commissioning and operator training. The intelligent crack-control steel ball line has been delivered to multiple overseas mining supply projects, winning recognition for stable running and improved finished ball reliability. As global grinding media manufacturing pursues higher toughness and lower defect rates, Forever Electromechanical continues upgrading intelligent thermal processing technology to help metal manufacturers improve product competitiveness.
