Introduction

Grinding balls are critical wear-resistant components widely used in mining, cement and mineral processing industries. Consistent hardness, uniform metallurgical structure and low breakage rate directly decide mill operating efficiency. Traditional batch heat treatment often suffers from uneven heating, unstable hardness and high energy consumption. To solve these bottlenecks, Forever Electromechanical has developed a complete grinding ball heat treatment production line equipped with 1000kW IGBT induction heating power supply. This integrated line supports continuous quenching and tempering for steel balls, delivering reliable thermal processing for ball mill manufacturers.

Core Configuration: 1000kW IGBT Induction Power Unit

The 1000kW IGBT induction power supply acts as the core heart of the whole grinding ball line. Built on series resonance technology, it features high power factor, low harmonic distortion and stable continuous output. The power cabinet adopts digital DSP control, with multiple protection functions including overvoltage, overcurrent, water shortage and overheating alarm. Operators adjust heating power and frequency on the HMI panel according to steel ball diameter and material grade. The soft-start design avoids instantaneous current impact, extending the service life of coils and electrical components. Its compact cabinet layout simplifies installation and routine maintenance for heavy-duty production workshops.

Continuous Heat Treatment Workflow for Grinding Balls

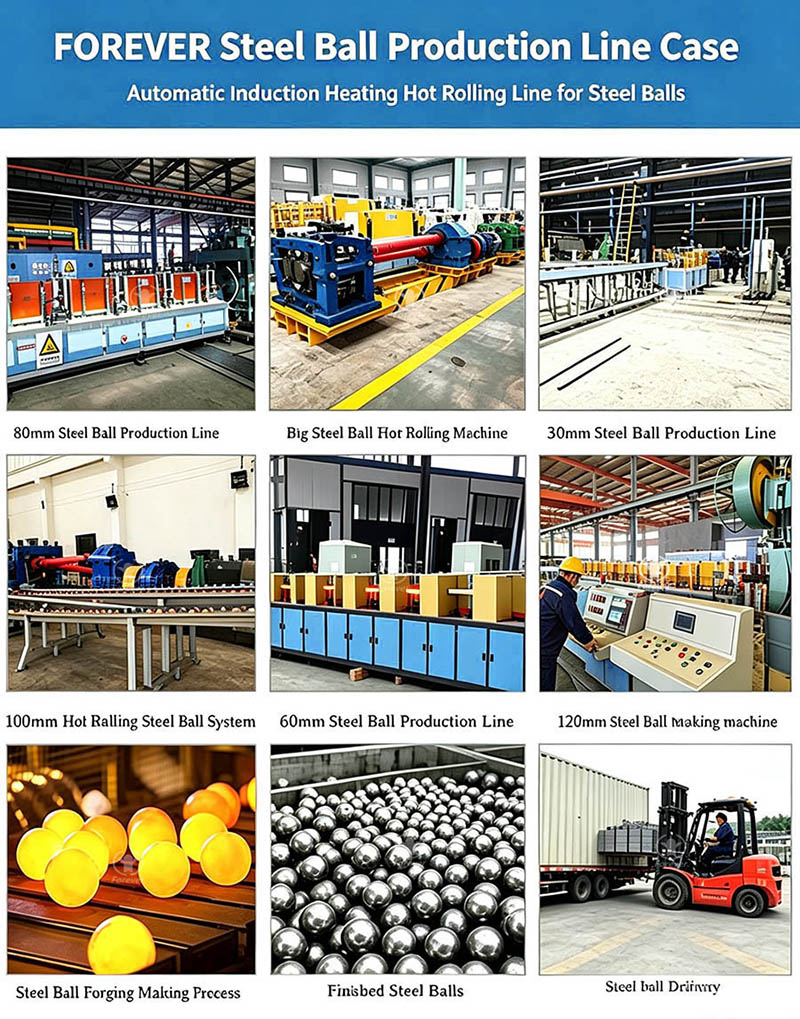

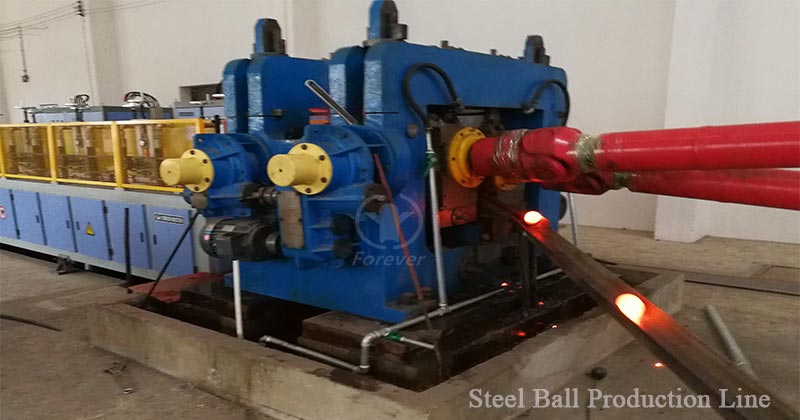

The steel ball hot rolling production line runs in a sequential automatic cycle. Raw steel balls are fed orderly through the vibrating feeding mechanism, avoiding stacking and collision. Balls pass through the preheating zone first to reduce thermal shock and prevent cracking during rapid heating. Next, the main heating section powered by the 1000kW IGBT unit raises each ball to the target quenching temperature. Real-time infrared temperature monitoring tracks heating status. Once the preset temperature is reached, balls enter the quenching tank for rapid cooling. After quenching, they move to the tempering zone to release internal stress and balance hardness and toughness. Finished balls are sorted and discharged at the end of the line.

Customized Induction Coil & Mechanical Transmission Design

Forever Electromechanical optimizes coil structure specially for spherical workpieces. Unlike bars or plates, steel balls roll forward during heating to ensure all surfaces receive even magnetic field exposure. This rotating feeding design eliminates the common defect of one-sided overheating. Water-cooled copper coils maintain stable performance under long-cycle heavy load. The transmission speed matches heating power dynamically via PLC closed-loop linkage. The line can accommodate different sizes of grinding balls by simply switching process recipes, bringing great flexibility for mixed batch production.

Main Advantages of Induction Heat Treatment for Steel Balls

Compared with resistance furnaces and gas heating systems, this steel ball hot rolling heating production line shows obvious strengths. Heating starts instantly without long standby preheating time. Oxide scale formation is greatly reduced, improving surface quality and lowering raw material waste. Hardness consistency is much better, which effectively cuts ball breakage rate in ball mills. The 1000kW IGBT power module delivers higher energy efficiency, helping factories reduce electricity cost. No open flame combustion means lower pollutant emissions, meeting increasingly strict environmental standards. The whole line supports 24-hour continuous operation to match large-volume grinding ball orders.

Global Delivery and Turnkey Service

Forever Electromechanical supplies full grinding ball heat treatment lines to mining equipment suppliers and grinding ball manufacturers. Each turnkey solution includes power supply, heating furnace, quenching system, control cabinet, on-site commissioning and operator training. Engineers customize line layout according to customer workshop space and output requirements. Spare parts supply and remote technical support are available for overseas users.

Conclusion

Combining the high-performance 1000kW intermediate frequency power supply with automatic rolling conveying structure, Forever’s steel ball heat treatment line provides a mature continuous thermal processing solution. It balances output capacity, product stability and energy saving. For grinding ball producers aiming to reduce breakage, stabilize hardness and upgrade old heating equipment, this integrated induction line is a cost-effective and future-oriented option.
