Steel Ball Production Line | Automatic Forming + Quenching & Tempering System

Introduction

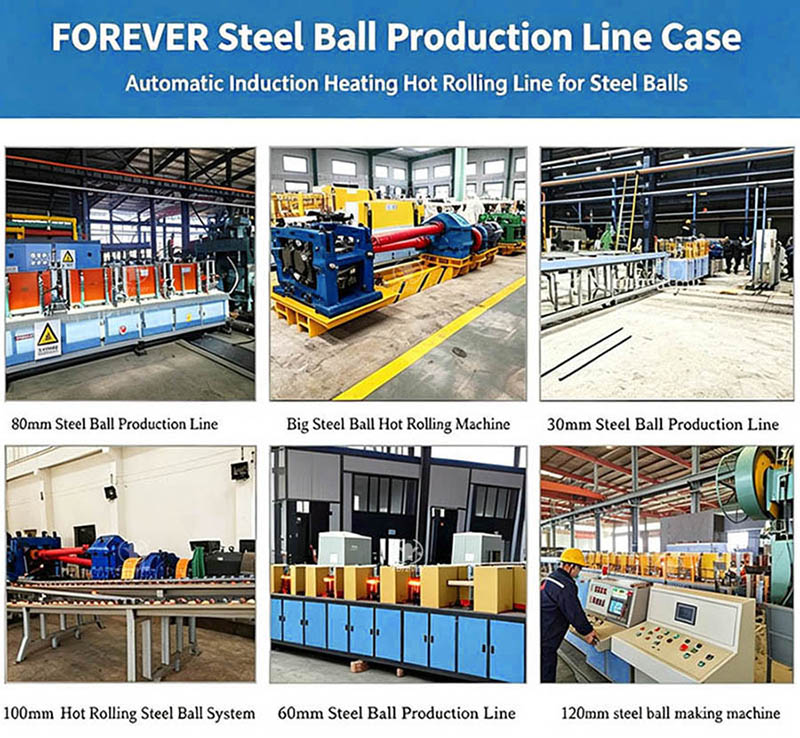

Grinding steel balls are critical wear-resistant parts widely used in mining, cement and metallurgical ball mills. Separate forming equipment and offline heat treatment often lead to poor roundness, unstable hardness, high cracking rate and low finished yield. To solve these bottlenecks, Forever Electromechanical launches an integrated steel ball forging production line combining automatic skew rolling forming and inline quenching & tempering system. The whole line connects bar feeding, induction heating, hot rolling forming, continuous quenching, tempering and sorting into one automated workflow, delivering reliable grinding ball manufacturing solutions for global wear-resistant material manufacturers.

Integrated Forming & Heat Treatment Design

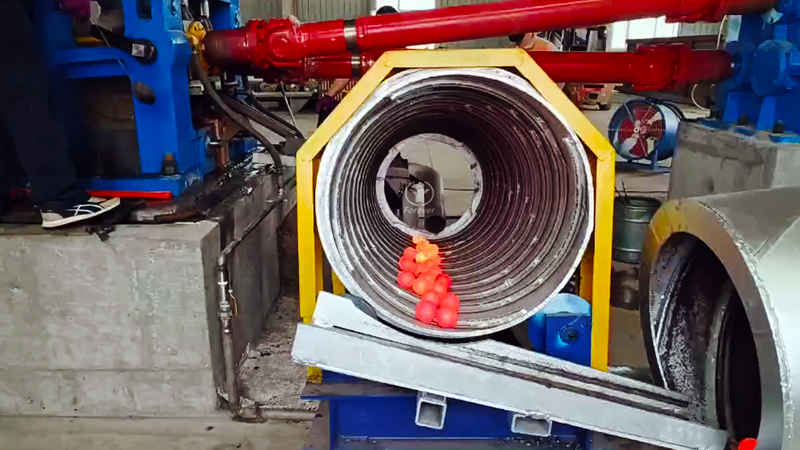

Different from discrete production modes, this steel ball hot rolling induction furnace synchronizes skew rolling forming and post-rolling heat treatment. After the round steel bar is heated by the IGBT induction furnace, the skew rolling mill shapes the billet into steel balls with high roundness in one pass. Freshly formed hot balls are directly conveyed to the quenching station without temperature loss. The seamless transition avoids temperature drop and secondary reheating, cutting extra energy consumption effectively. The matched quenching and tempering unit adjusts cooling intensity and holding temperature according to ball diameter and steel grade, eliminating the quality fluctuation caused by transferring semi-finished balls manually.

IGBT Induction Heat Treatment Core for Stable Performance

The quenching and tempering section adopts independent digital IGBT induction power supplies. The quenching unit achieves rapid and uniform cooling to obtain target surface hardness, while the tempering furnace relieves internal stress steadily. This dual-power configuration prevents brittle fracture and peeling of finished balls. The infrared temperature closed-loop system monitors every steel ball, keeping temperature deviation within a tight range. Finished balls gain balanced hardness and impact toughness, greatly lowering breakage rate during grinding operation. It supports mass production of steel balls from 20mm to 120mm for mining and cement grinding.

steel ball skew rolling induction process

PLC Centralized Automatic Control & Easy Operation

The whole line runs under unified PLC control with a touch screen for parameter management. Operators can store multiple process recipes for different ball sizes and material grades. The system automatically adjusts feeding speed, rolling speed, quenching flow and tempering power with one-click switching. Automatic feeding, conveying and sorting reduce manual participation, stabilizing product consistency and cutting labor cost. The modular layout is compact and convenient for workshop installation and expansion. Real-time fault alarm functions help operators spot abnormal conditions promptly to reduce downtime losses.

Customized Service & Global Technical Support

This integrated steel ball production line has no open flame and low oxidation loss, meeting environmental regulations in different regions. Forever Electromechanical provides customized design according to customers’ hourly output, ball specifications and hardness requirements. The full service covers drawing confirmation, factory trial run, on-site installation, operator training and long-term after-sales maintenance. By combining reliable forming equipment and precise heat treatment system, the solution helps grinding ball manufacturers improve product competitiveness and reduce comprehensive production cost.
