Steel Ball Production Line | China: Working Process Overview

Introduction

Forever Electromechanical, a China-based manufacturer of induction heating and forging equipment, delivers complete steel ball manufacturing lines and customized solutions for global clients in mining, cement, metallurgy and mechanical bearing industries. The full-automatic steel ball production system integrates raw bar feeding, induction heating, forming, heat treatment, inspection and packaging. As demand for reliable grinding media and bearing steel balls keeps rising worldwide, the turnkey production line helps factories achieve stable output, lower energy consumption and consistent product quality. This article breaks down the standard working process of the steel ball production line supplied by Forever Electromechanical.

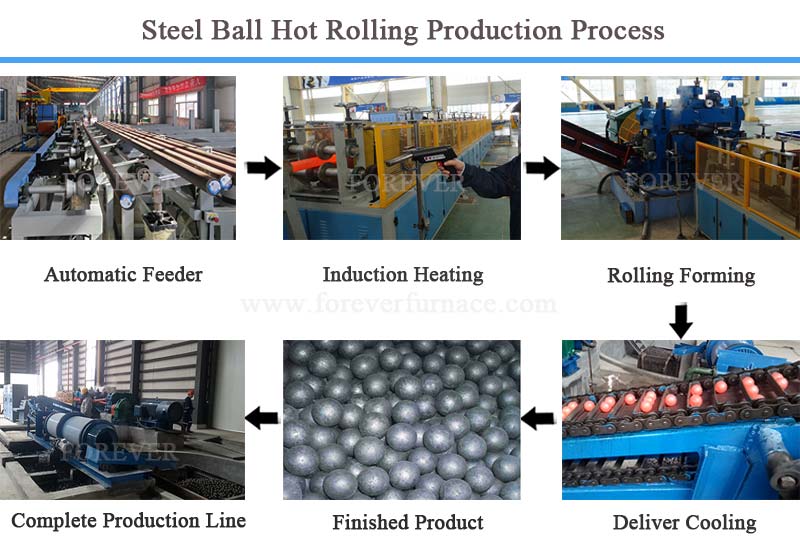

1. Raw Material Inspection & Automatic Feeding

The whole process starts with raw steel bar preparation. Carbon steel and alloy steel round bars are received, sampled and tested for chemical composition and surface defects. Only qualified bars enter the automatic feeding station. The feeding system arranges steel bars orderly and sends them continuously to the induction heating unit. Compared with manual loading, this automated module reduces labor input and avoids unstable feeding speed, which may cause uneven heating. The system supports round bars of multiple diameters to match different finished steel ball sizes, ranging from 20mm up to 150mm.

2. Induction Heating: Core Thermal Processing Stage

Induction heating equipment is the heart of Forever Electromechanical’s steel ball production line. Raw bars are transported into the medium-frequency induction heater and rapidly heated to 950–1050℃. The intelligent closed-loop temperature control keeps temperature fluctuation within ±10℃, ensuring uniform heating and minimizing surface oxidation. Traditional fuel furnaces consume far more energy and create heavy emissions. The induction heating system cuts power consumption by about 30%, with high thermal efficiency above 90%. This energy-saving design is one of the most valued advantages for overseas buyers. After heating, red-hot steel bars move forward for automatic cutting.

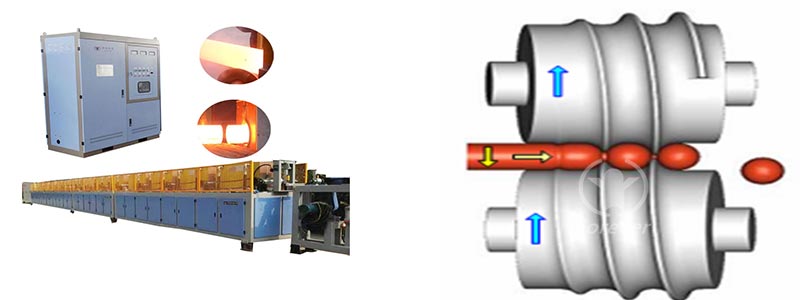

3. Hot Forging & Skew Rolling Forming

Heated steel blanks are sent to the hot forging or skew rolling mill. Under the action of spiral rolls, the hot steel is continuously twisted and pressed into spherical blanks. The rolling station removes extra flash and preliminarily shapes the ball. The whole forming step runs continuously. A single rolling machine can produce dozens to hundreds of steel balls per minute. PLC control stabilizes forming pressure and speed, effectively reducing common defects such as poor roundness, crack and uneven wall thickness. Forever Electromechanical can customize the forming module according to customer capacity requirements and steel ball application scenarios, whether for mining grinding balls or mechanical bearing balls.

4. Online Quenching and Tempering Heat Treatment

Formed steel ball blanks go directly to the continuous heat treatment section. First comes quenching, which rapidly cools the balls to raise surface hardness. Then tempering is applied to release internal stress, improve impact toughness and avoid brittle failure in service. The combination of quenching and tempering ensures finished steel balls reach stable hardness of HRC58–65. This stage is critical for service life, especially for grinding balls used in mineral mills. The automatic steel ball production line is tightly connected with the rolling unit, eliminating repeated handling and secondary heating waste.

5. Precision Inspection, Sorting and Polishing

After heat treatment, steel balls enter the quality inspection zone. Automatic detection devices check dimension, roundness, surface condition and hardness. Non-conforming products are automatically sorted out. Qualified balls go through polishing to remove oxide layers and burrs. Random sampling is carried out for laboratory metallurgical testing. Forever Electromechanical adopts strict quality standards consistent with international wear-resistant material specifications. Every batch can provide inspection records for end users.

6. Anti-rust Treatment and Packaging

Qualified steel balls receive anti-rust oil coating before packaging. Products are packed in moisture-proof drums or bags according to export requirements. Batch labels record size, material grade, hardness and production date for full traceability. The finished goods are ready for shipment to overseas markets including the Middle East, Russia, Europe and Southeast Asia.

Conclusion

Forever Electromechanical’s complete steel ball making machine covers all processes from raw bar to finished ball. The integrated induction heating, automatic forming and intelligent heat treatment system delivers customizable turnkey solutions. By combining high productivity, low energy cost and stable quality, the China-made steel ball production line helps global manufacturers reduce operation cost and upgrade their steel ball production capacity. Forever Electromechanical continues to optimize equipment design and after-sales service to support long-term cooperation with international partners.
