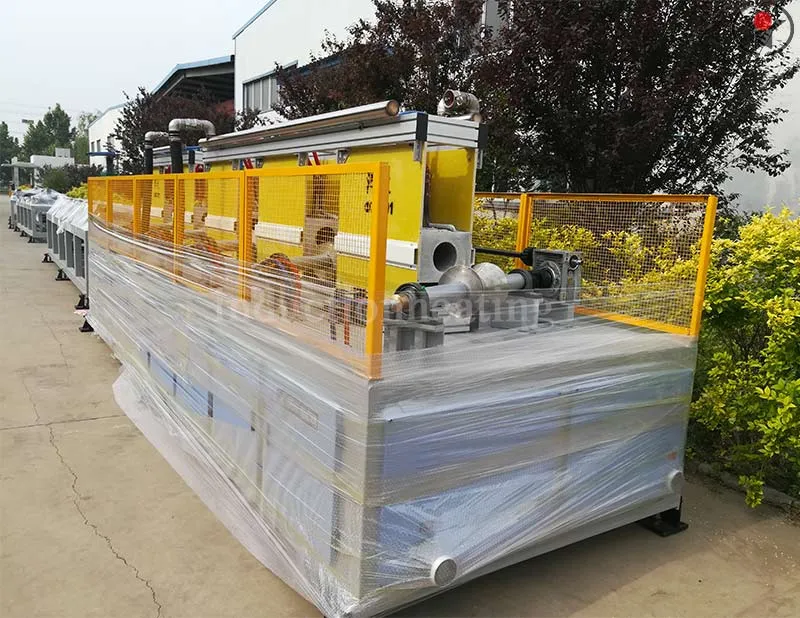

Round steel tube quenching and tempering furnace

Forever Electromechanical has been specializing in steel pipe quenching equipment for more than 20 years, providing comprehensive quotes and consulting solutions for round steel pipe quenching electric furnaces. The round steel pipe quenching reheating furnace is controlled by a PLC human-machine interface, with one click start and reliable operation

Inquire Now Next Product

Product Details

【 Quenching pier head reheating 】【 Overall tempering 】【 Tempering pier head reheating 】【 Overall quenching 】 200KW/80KW/500HZ500HZ

500KW/1000HZ

120KW/1000HZ

Production capacity: 1.5-10 tons/hour

[Scope of application]: 60.3 * 4.83 * 9.9; 73.02*5.51*9.9; 88.9*6.45*9.9; 114-139.7; 188.28-219.08;

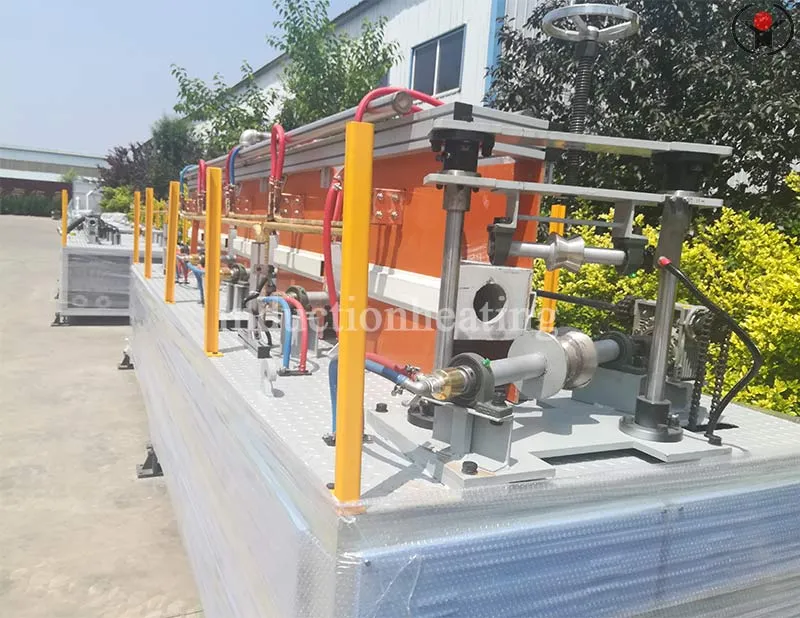

Round steel tube quenching and tempering furnace

Forever Electromechanical is a professional provider of medium frequency induction heating equipment. The round steel tube quenching electric furnace is controlled by an energy-saving air-cooled induction heating power supply, with low power consumption and high production efficiency. It is directly sold by the manufacturer at a reasonable price and provides comprehensive after-sales service. We can customize a suitable round steel tube quenching furnace for you according to your process needs. Welcome to inquire by phone and provide you with a free quotation and solution consultation.

Workpiece parameters and processing requirements

Workpiece parameters and processing requirements for quenching and reheating furnace of round steel tube:

Heating steel material: carbon steel, alloy steel

Size to be heated: (direct 20-120) 6000mm

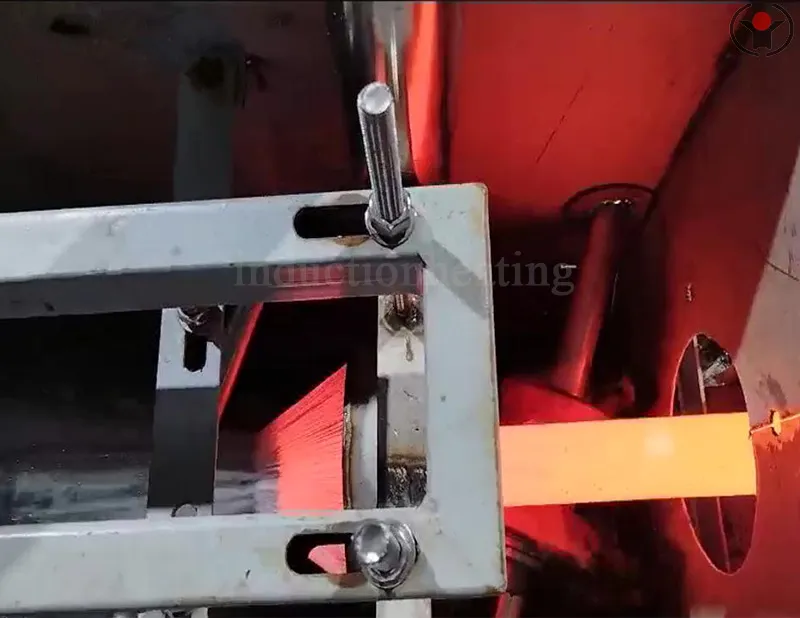

Steel pipe furnace temperature: room temperature. Heating, quenching, and tempering method for round steel pipes: continuous heating to the corresponding temperature. Enter the spray tank to spray water, and then directly enter the tempering sensor for tempering. Capable of completing quenching and tempering heat treatment of 1800-2000kg steel per hour

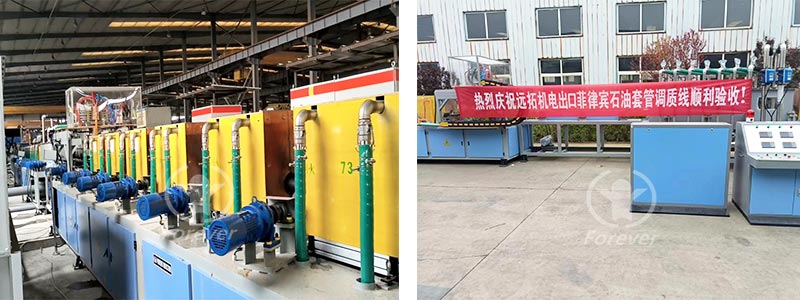

Round steel tube quenching and tempering furnace

characteristics

The characteristics of the quenching and tempering furnace for round steel pipes are:

1. Fully automated control, with Siemens PLC as the control center, complete program design, fully automated production, energy-saving operation manpower, and stable product performance.

2. The induction hardening equipment for steel pipes has high-performance control, using high-precision non-contact American Raytheon infrared thermometers to control temperature and ensure uniform heating.

4. The power supply has high power and efficiency factor, and the round steel tube quenching electric furnace can adapt to a wide voltage range.

5. The round steel tube quenching electric furnace has a fast start and can reach full power operation within 0.1 seconds.

6. The steel pipe treated by quenching and tempering furnace has strong toughness and will not produce small cracks.

7. Energy monitoring, equipped with key production parameters such as voltage, current, power, quenching fluid flow rate, quenching fluid temperature, etc., can continuously record and save historical data of steel pipe quenching equipment, with easy export for viewing

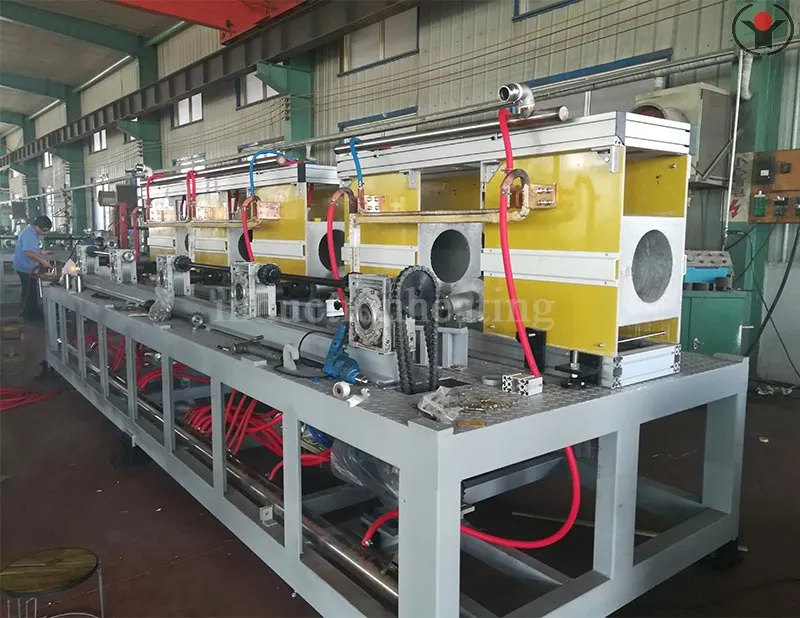

Round steel tube quenching and tempering furnace

After sales service

After sales service and technical support for round steel tube quenching and tempering furnace:

1. Responsible for the design and complete production of the steel pipe quenching equipment for this project, ensuring that the medium frequency induction hardening and tempering equipment meets the contract requirements.

2. Provide free theoretical and technical training on quenching electric furnaces for round steel pipes to the buyer's operators

3. From the date of acceptance of the quenching and tempering furnace for round steel pipes, responsible for 13 months of free warranty.

4. If a malfunction occurs during the operation of the intermediate frequency quenching and tempering heat treatment equipment, it should be resolved through telephone guidance within 2 hours. If the issue cannot be resolved, personnel should be dispatched to the site within 1 day and efforts should be made to eliminate the malfunction.

5. Provide consumables within this system at cost price after the warranty period, or introduce corresponding suppliers.

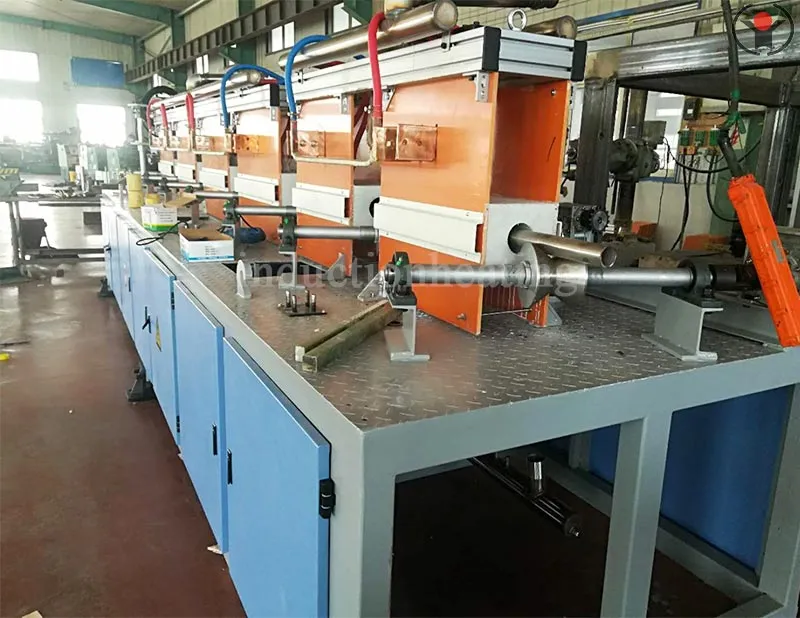

Round steel tube quenching and tempering furnace
