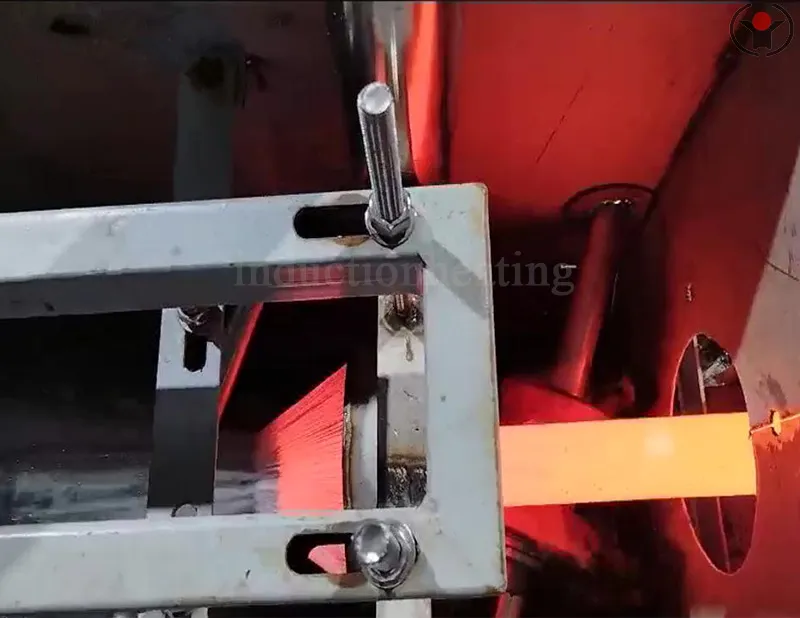

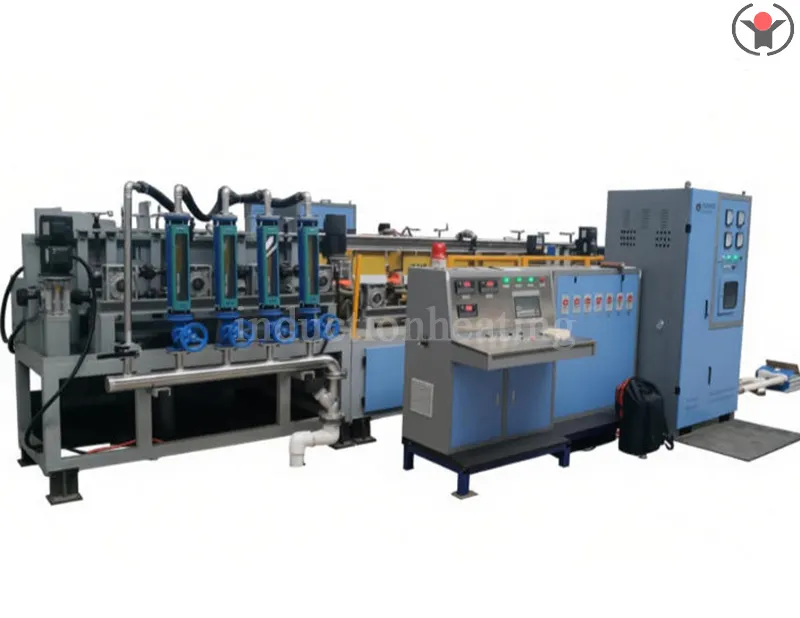

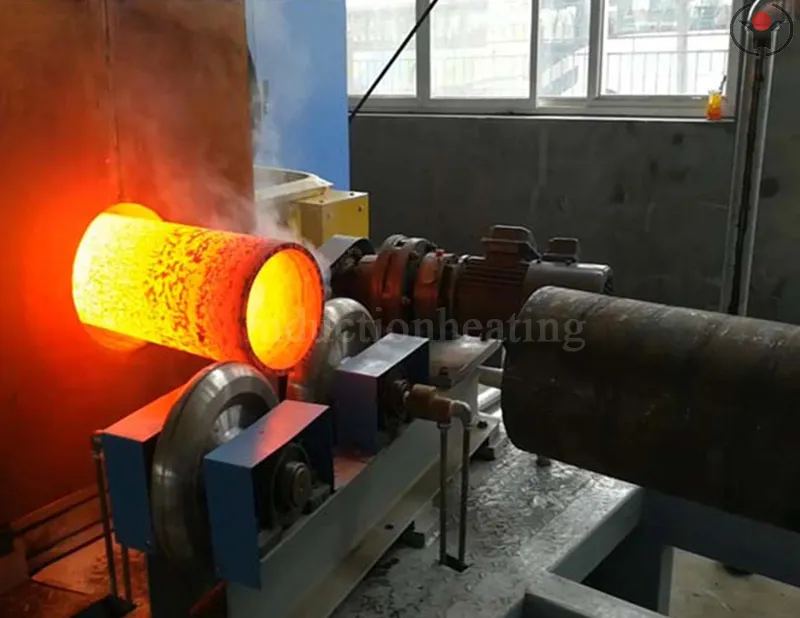

Square tube quenching and tempering heat treatment equipment

Main technical parameters of the equipment: · Main purpose: Suitable for quenching and tempering heat treatment of thin-walled rectangular tubes, square tubes, trailer collision beam tubes, etc. ·Power supply system: KGPS200~800KW/4~8KHZ or IGBT 200~800KW/4~15KHZ; The hourly output is 0.6-2.5 tons. Scope of application: Thickness 1.0mm-5.0mm, width 20mm-500mm, height 20mm-500mm. ·Multi channel closed-loop function: temperature, voltage and other multi-channel closed-loop systems.

Inquire Now Next Product

Product Details

Main technical parameters of square tube quenching and tempering production line:

Main application: Suitable for quenching and tempering heat treatment of thin-walled rectangular tubes, square tubes, trailer collision beam tubes, etc.

Power supply system: KGPS200~800KW/4~8KHZ or IGBT 200~800KW/4~15KHZ; The hourly output is 0.6-2.5 tons.

·Scope of application: Thickness 1.0mm-5.0mm, width 20mm-500mm, height 20mm-500mm.

Conveyor roller conveyor: The roller conveyor between the furnace bodies is made of 304 non-magnetic stainless steel and water-cooled.

Feeding system: Each axis is driven by an independent motor reducer and controlled by an independent frequency converter; Flexible design of differential output, segmented control of operating speed.

·Formula management function: A powerful formula management system that automatically calls relevant parameters after inputting the steel grade, outer diameter, and wall thickness parameters to be produced, eliminating the need for manual recording, viewing, and inputting of various workpieces

Required parameter values

Multi channel closed-loop function: A high-level temperature, voltage and other multi-channel closed-loop system has been designed to address the instability of power supply systems in underdeveloped areas and countries.

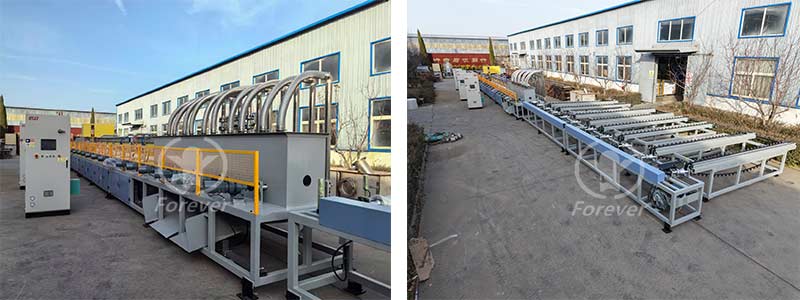

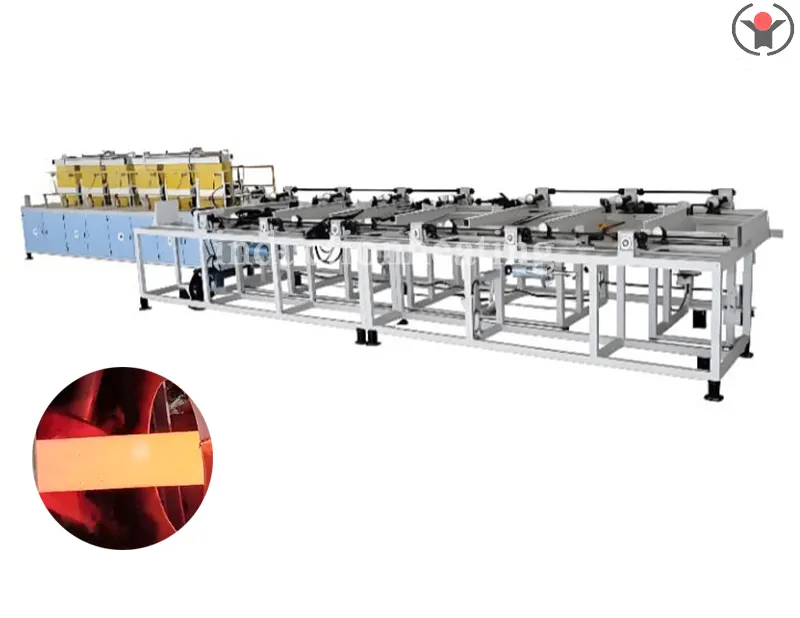

Square tube quenching and tempering heat treatment equipment

Advantages and characteristics

Advantages and characteristics of square tube quenching and tempering production line:

Good straightness

Adopting the Forever electromechanical square tube induction heating and heat treatment quenching and tempering production line, the straightening function is designed during the heat treatment process, and the square tube can achieve considerable straightness after heat treatment quenching and tempering. ·High level of intelligence, safe and easy to operate

The square tube induction quenching and tempering heat treatment production line adopts PLC control system+touch screen display, with high intelligence, one click control, more installation, and more convenience. ·Strong reliability for continuous operation

ForeverIGBT variable frequency power supply is used for square tube induction heating, heat treatment and tempering production lines. It operates continuously for more than a year without stopping for 24 hours, and during this period, it has repeatedly switched between heavy and light loads without any faults.

The production process of energy-saving and environmentally friendly square tube induction heating and heat treatment tempering line does not produce harmful substances, effectively improving the working environment of workers. Induction frequency is used to quench the square tube, resulting in high yield and more efficient production

Can.
