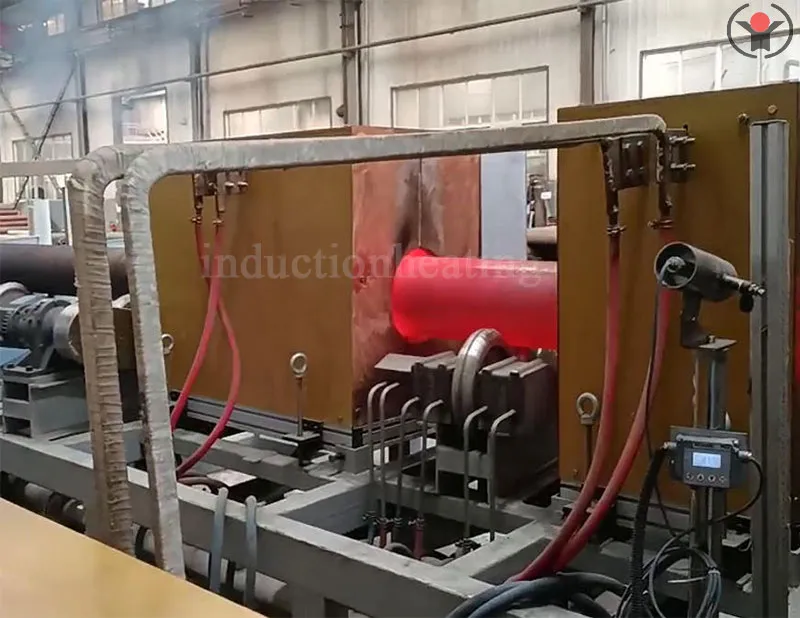

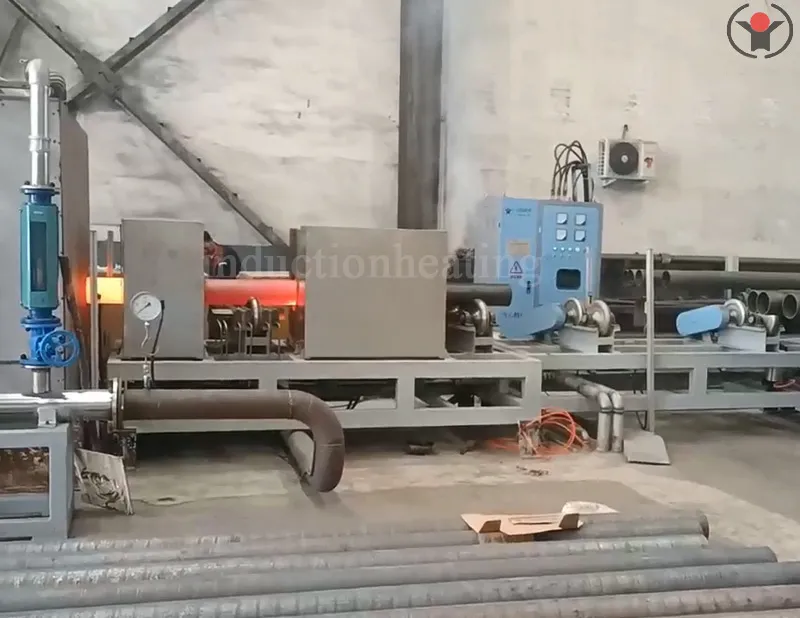

Square tube quenching production line

Main technical parameters of the equipment: · Main purpose: Suitable for quenching heat treatment of thin-walled rectangular tubes, square tubes, trailer collision beam tubes, etc. ·Power supply system: KGPS200~800KW/4~8KHZ or GBT200~800KW/4~15KHZ; The hourly output is 0.6-2.5 tons. ·Scope of application: Thickness 1.0mm-5.0mm, Width 20mm-500mm, Height 20mm-500mm

Inquire Now Next Product

Product Details

Main technical parameters of square tube quenching production line:

Main application: Suitable for quenching heat treatment of thin-walled rectangular tubes, square tubes, trailer crash beam tubes, etc.

Power supply system: KGPS200~800KW/4~8KHZ or IGBT 200~800KW/4~15KHZ; The hourly output is 0.6-2.5 tons.

Scope of application: Thickness 1.0mm-5.0mm, width 20mm-500mm, height 20mm-500mm.

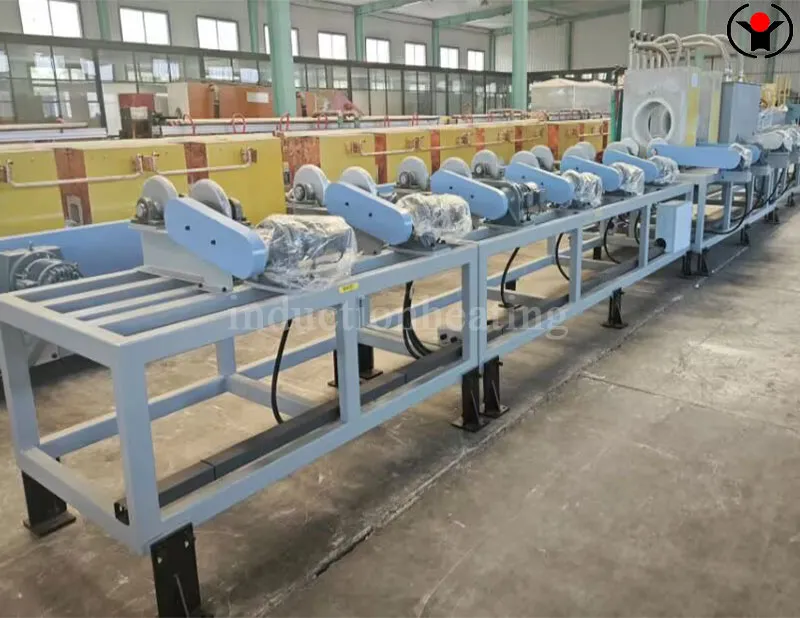

·Conveyor roller conveyor: The roller conveyor between the furnace bodies is made of 304 non-magnetic stainless steel and water-cooled. Feeding system: Each axis is driven by an independent motor reducer and controlled by an independent frequency converter; Flexible design of differential output, segmented control of operating speed. Formula management function: A powerful formula management system that automatically calls relevant parameters after inputting the steel grade, outer diameter, and wall thickness parameters to be produced, eliminating the need to manually record, view, and input the required parameter values for various workpieces.

Multi channel closed-loop function: A high-level temperature, voltage and other multi-channel closed-loop system has been designed to address the instability of power supply systems in underdeveloped areas and countries.

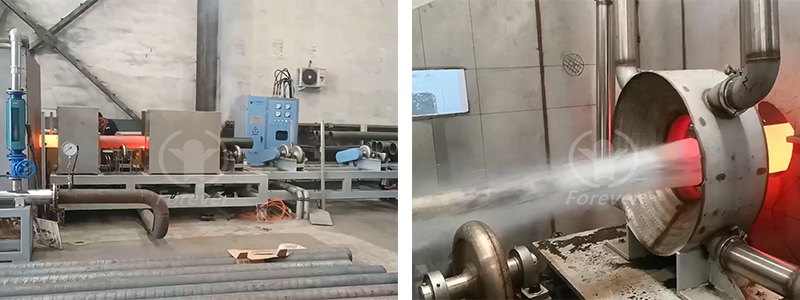

Square tube quenching production line

Advantages and characteristics

Advantages and characteristics of square tube quenching production line:

Good straightness

The Yuantuo square tube induction heating and heat treatment quenching production line is adopted, and the straightening function is designed during the heat treatment process. The square tube can achieve considerable straightness after heat treatment quenching. High degree of intelligence, safe and easy to operate

The square tube induction quenching heat treatment production line adopts PLC control system+touch screen display, with high intelligence, one click control, more installation, and more convenience. Strong reliability for continuous operation

Yuantuo IGBT variable frequency power supply is used for square tube induction heating heat treatment quenching production line. It has been running continuously for more than a year without stopping for 24 hours, and has undergone multiple load changes (switching between heavy and light loads repeatedly) without any faults.

Energy saving and environmental protection in production

The production process of square tube induction heating heat treatment quenching wire does not produce harmful substances, effectively improving the working environment of workers. By using induction frequency to quench the square tube, the yield rate is high and it is more energy-efficient.

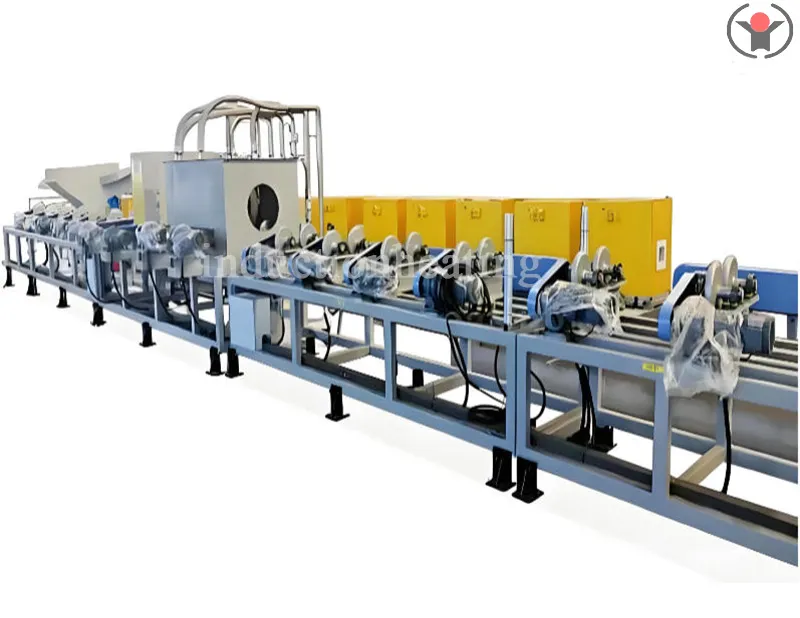

Square tube quenching production line
