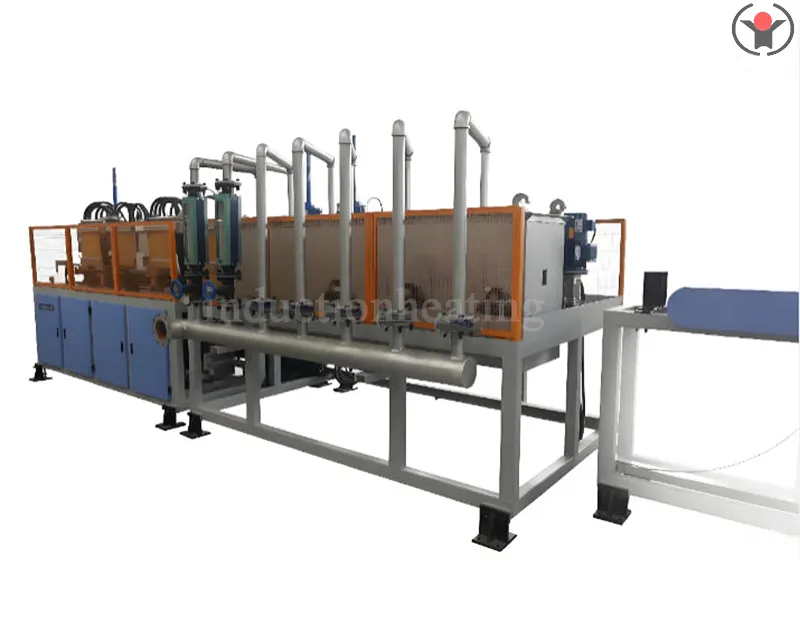

Stainless steel pipe heating and reheating production line

Stainless steel pipe heating and reheating production line:

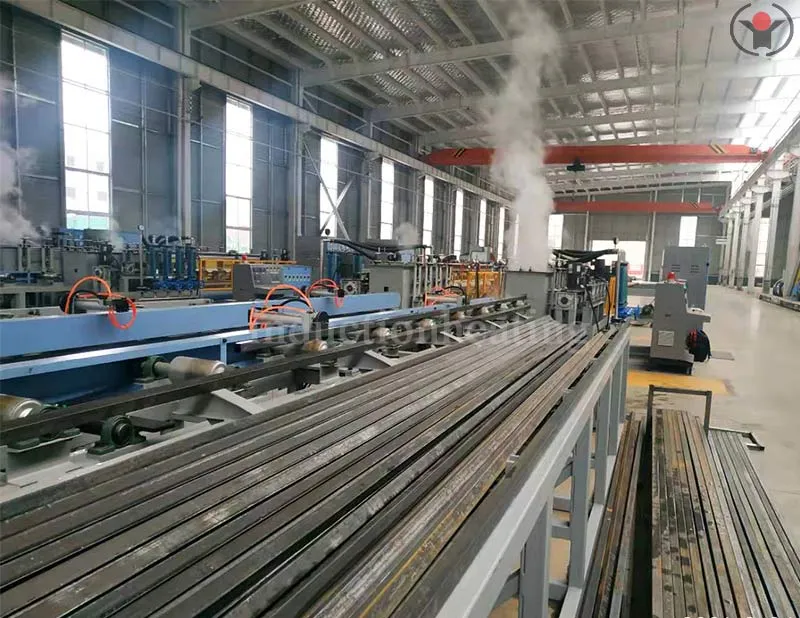

The stainless steel pipe heating and warming production line is customized by Forever Electromechanical Factory for users. Its equipment only requires manual placement of materials on the storage rack, and other actions are automatically completed by the system controlled by PLC, including flipping, feeding, preheating, heating, quenching spray, tempering, tempering spray, and discharging

Forever Electromechanical Equipment Manufacturing Co., Ltd. is one of the earliest suppliers of intermediate frequency heating equipment technology solutions in the field of induction heating in China. We have been researching and producing induction heating equipment for many years and have rich experience in the production of stainless steel tube heating and compensation equipment. The Forever Electromechanical Stainless Steel Pipe Heating and Compensation Production Line adopts air-cooled IGBT induction heating power supply control, which is efficient, energy-saving, environmentally friendly, reasonably priced, and guaranteed in quality. It can be customized according to your workpiece process to meet your personalized needs.

Inquire Now Next Product

Product Details

Equipment power

500KW-10000KW

[Device Frequency]

1000-2500HZ

[Control System] PLC Intelligent Electrical Control

[Energy Conversion]: Depending on the surface temperature of the workpiece, the power consumption per ton of steel is 40-60 degrees.

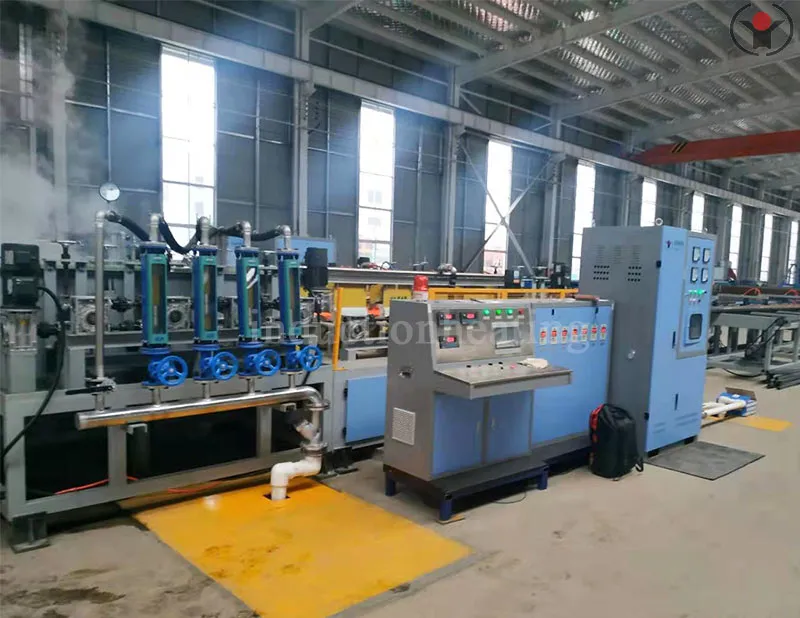

The stainless steel pipe heating and warming equipment adopts touch screen control and has complete fault display function, which can quickly find the fault point and is easy to maintain. The pipe heating equipment adopts DSP control technology, which has extremely high processing speed, ensuring the efficient and orderly operation of various functions of the device. It has real-time computing function and real-time simulation and emulation ability. Compared with conventional processors, the accuracy of control and measurement is significantly improved, the speed and reliability of limitation and protection are enhanced, the functions of data processing and display operation are greatly improved, and the angle adjustment has adaptive function. The replacement of the heating sensor can work without adjustment and operate in a reliable state.

Stainless steel pipe heating and reheating production line

Performance characteristics

Performance characteristics of stainless steel pipe heating and warming equipment:

1. Optimize the design of the induction coil to match the size of the workpiece, achieving efficient heating.

2. The transmission system of the stainless steel pipe heating and warming production line is equipped with a frequency converter on each axis, which can infinitely adjust the speed and achieve higher heating efficiency.

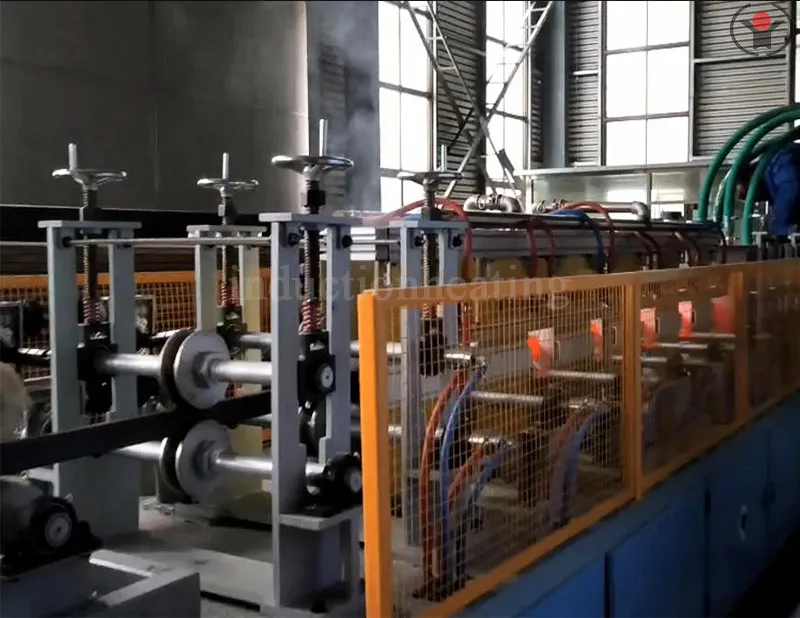

3. The rollers used for transporting workpieces in pipeline annealing equipment are made of 304 non-magnetic stainless steel material, which has good wear resistance and low workpiece wear rate.

4. The stainless steel pipe heating and reheating production line adopts a split type mechanism design, which is compact in structure, stable and reliable in operation.

5. The stainless steel pipe heating and warming equipment adopts advanced control components, with strong system performance and high degree of automation.

Stainless steel pipe heating and reheating production line

after-sale service

1. Ensure that the packaging of the stainless steel pipe heating and warming equipment meets the requirements of moisture resistance, rain resistance, rust prevention, corrosion prevention, and shock resistance, with clear and accurate labeling, so that the items can be safely and promptly delivered to the site.

2. High quality and fast technical services are provided to better ensure the normal operation of the stainless steel pipe heating and reheating production line, timely answer user questions, help users solve problems, rush to the site within 48 hours, and solve problems within 24 hours.

3. Free debugging and activation for users: Engineers are responsible for the installation, debugging, activation, and testing of on-site induction heating equipment. After the equipment is successfully debugged, the supplier shall provide the user with written test results, and the supplier's technical personnel can only evacuate the site after obtaining the user's consent. 5. Warranty period: The warranty period for the stainless steel pipe heating and warming equipment under the contract is 12 months after successful installation and commissioning. During the warranty period (except for damages caused by human factors), the cost of components, parts, and travel expenses shall be borne by the supplier.

6. The stainless steel pipe heating and reheating production line has exceeded the warranty period, and Forever Electromechanical still provides long-term technical service support. Only cost fees are charged for each repair and replacement of spare parts.

Stainless steel pipe heating and reheating production line
