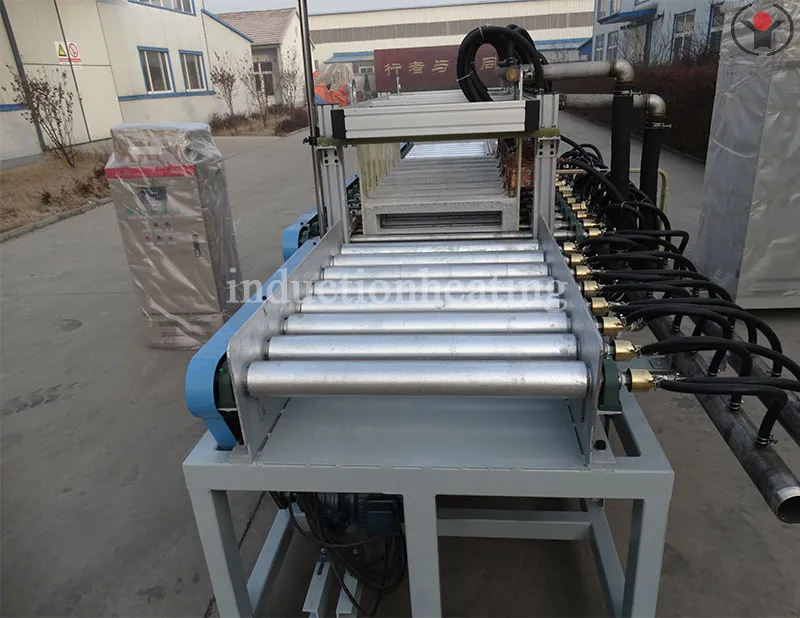

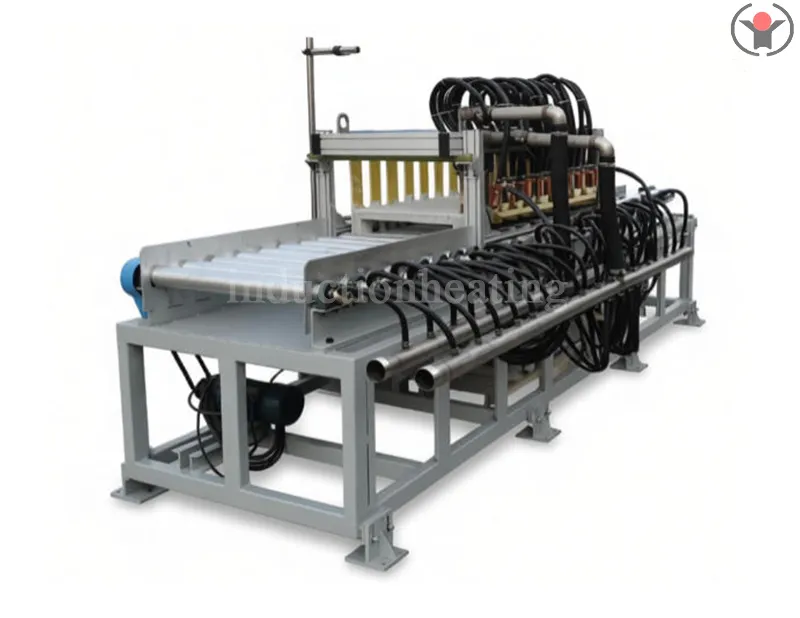

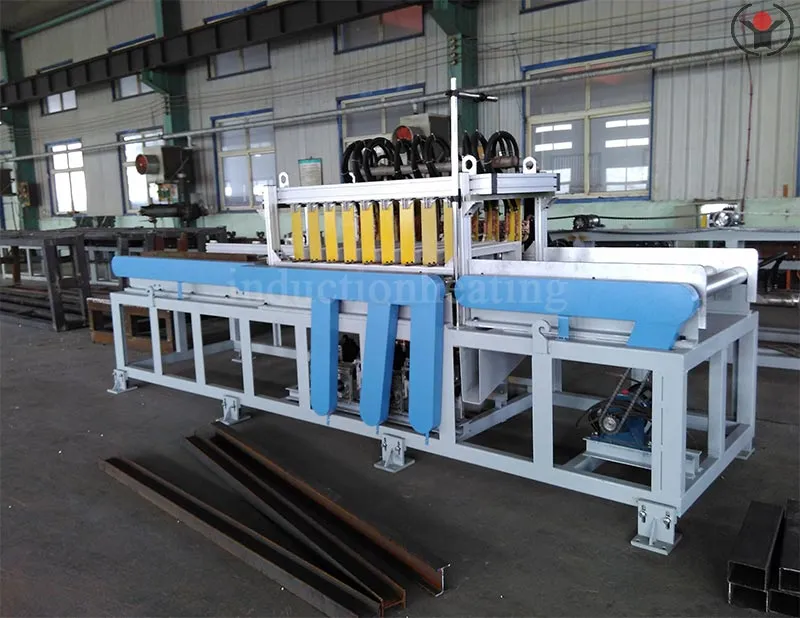

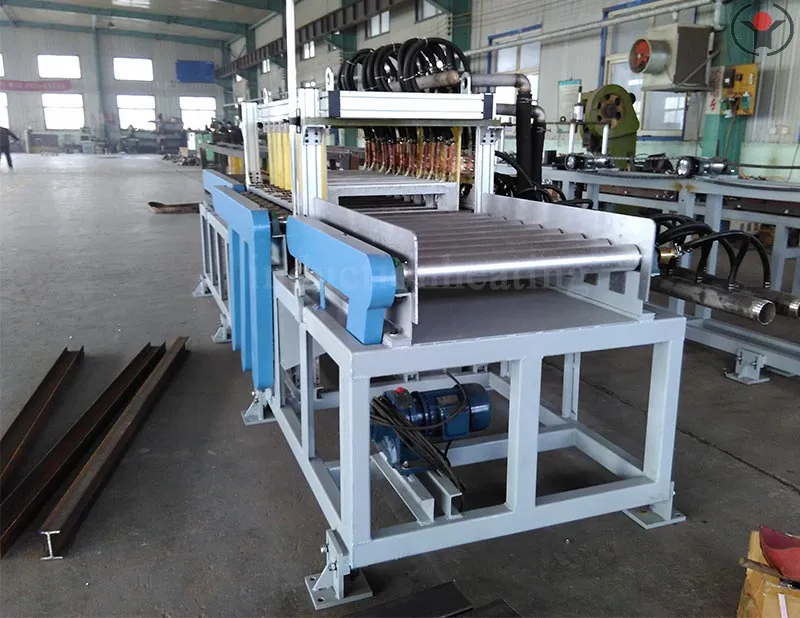

Knife blade plate induction hardening line

Working process of knife blade plate induction hardening line mechanical system:

The mechanical actions of this complete set of equipment are controlled by PLC, and the raw materials need to be manually placed on the conveyor rack. All other actions are automatically completed by the system under PLC control. A set of programs can be set according to each product specification of the user. When working, the product specification that needs to be produced needs to be clicked on the touch screen, and the entire line is automatically completed by the PLC program.

The knife blade plate induction hardening line has a series of advantages such as good quality, fast heating speed, low production oxidation, low cost, good working conditions, and easy implementation of mechanization and automation.

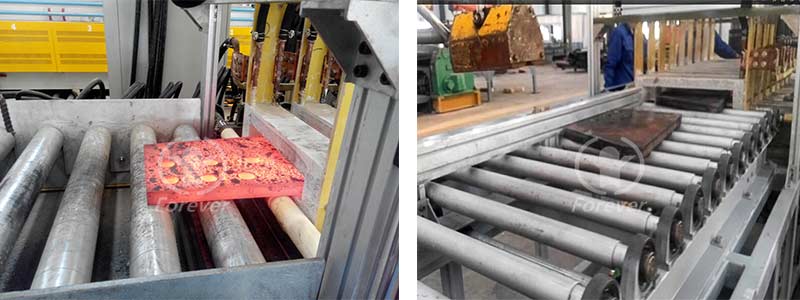

Knife blade plate induction hardening line

Main technical parameters of the knife blade plate induction hardening line

Power supply system: KGPS200~800KW/4~8KHZ or IGBT 200~800KW/4~15KHZ

Production efficiency: hourly output of 0.6-2.5 tons

Scope of application: Thickness 20mm-60mm, Width 220mm-510mm

Feeding system: roller conveyor+power double pinch roller, each axis is driven by an independent motor reducer and controlled by an independent frequency converter; Flexible design of differential output, segmented control of operating speed.

Industrial control computer system: Real time display of the current working parameter status, workpiece parameter memory
