Plate heating production line

Main technical parameters of the equipment: Power supply system: 100~4000KW/200~800HZ intelligent intermediate frequency power supply. ·Feeding system: roller conveyor+power double pinch roller, each axis is driven by an independent motor reducer and controlled by an independent frequency converter; Flexible design of differential output, segmented control of operating speed. Energy Conversion: Heating one ton of steel to 1150 ° C consumes 330-360 kWh of electricity; ·Applicable workpieces: Suitable for medium frequency induction heating of slab, steel plate, cutting edge plate, engineering blade plate, etc.

Inquire Now Next Product

Product Details

Main technical parameters of sheet heating equipment:

Applicable workpieces: Suitable for medium frequency induction heating of slab, steel plate, cutting edge plate, engineering blade plate, etc.

Power supply system: 100~4000KW/200~800HZ intelligent intermediate frequency power supply.

·Feeding system: roller conveyor+power double pinch roller, each axis is driven by an independent motor reducer and controlled by an independent frequency converter; Flexible design of differential output, segmented control of operating speed. ·Roller electrical isolation: In response to the problem of workpiece and roller ignition caused by equipment, we have designed a sturdy and durable roller electrical isolation system to solve the problem of workpiece ignition damage. Industrial control computer system: Real time display of the current working parameter status, workpiece parameter memory, storage, printing, fault display, alarm and other functions. ·Formula management function: A powerful formula management system that automatically calls relevant parameters after selecting the steel grade and plate type parameters to be produced, without the need to manually record, view, or input the required parameter values for various workpieces.

Energy Conversion: Heating one ton of steel to 1150 ° C, consuming 330-360 kWh of electricity

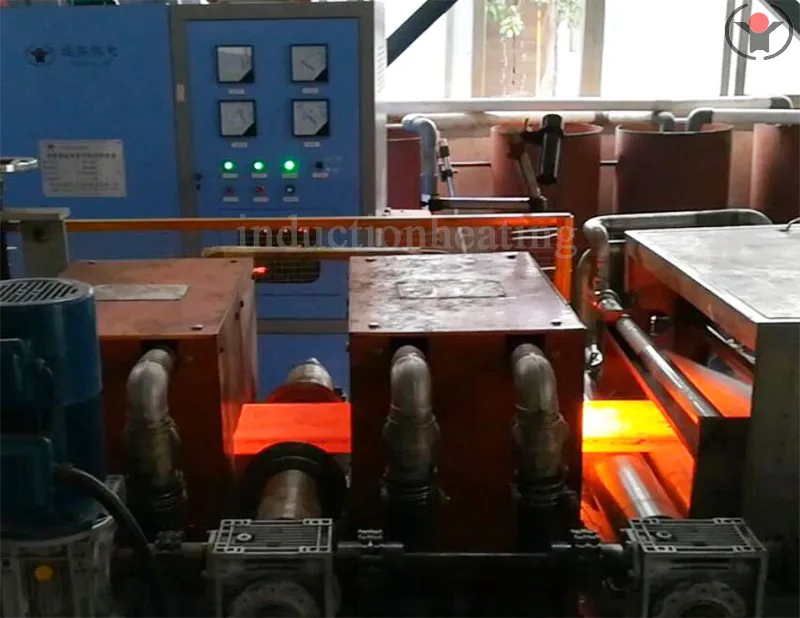

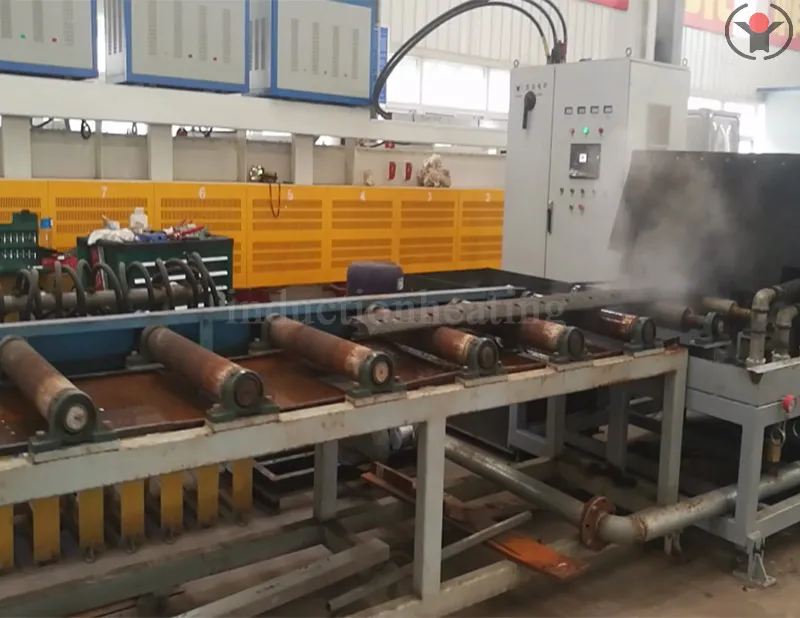

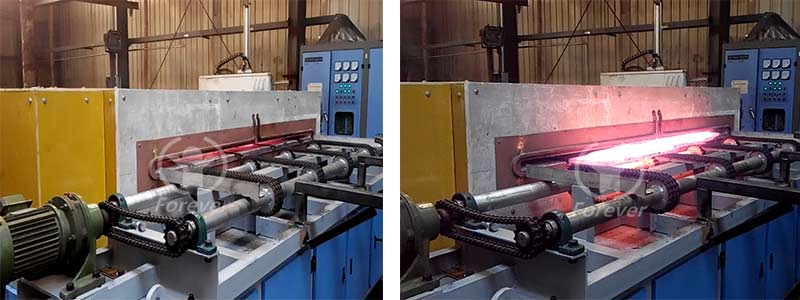

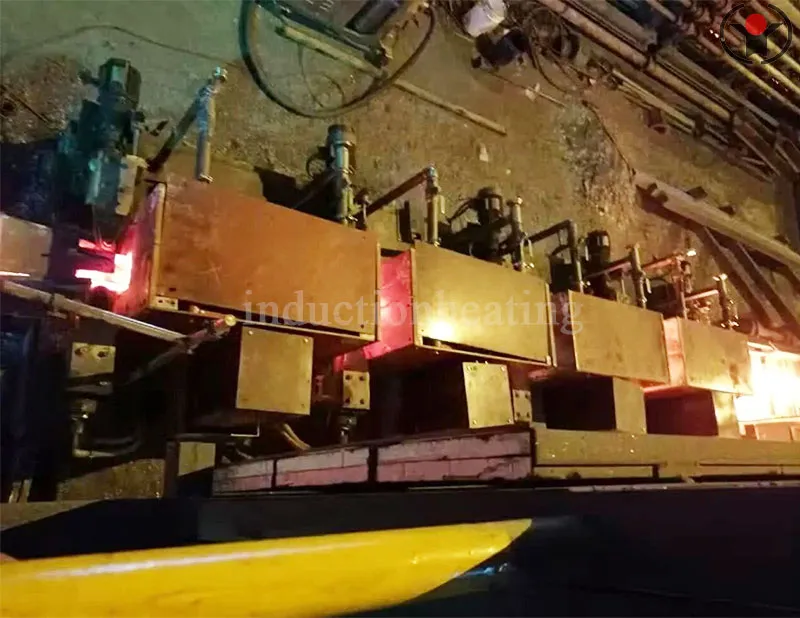

Plate heating production line

Advantages and characteristics

Advantages and characteristics of sheet heating equipment:

Fast heating speed, less oxidation and decarburization

Due to the principle of medium frequency induction heating being electromagnetic induction eddy current heating, the heat is generated by the workpiece itself. Therefore, the heating equipment for sheet metal has fast heating speed, less oxidation, high efficiency, good process repeatability, and high degree of automation, which can achieve fully automatic operation

Automatic feeding mechanism and discharge automatic sorting device are selected, and the sheet heating equipment can be fully automated with industrial computers or human-machine interfaces. Uniform heating temperature and high temperature control accuracy

The heating temperature is uniform and the radial temperature difference is small. The temperature can be precisely controlled through an automatic temperature control system.

The sensor has a long service life and is easy to replace

The furnace lining of the plate heating equipment adopts silicon carbide or integral knotting method, with a service temperature of 1250 ° C or above, and has good insulation, thermal insulation, and resistance to rapid cooling and impact.
