Plate quenching and tempering heat treatment equipment

The plate quenching and tempering heat treatment production line produced by Forever Electromechanical Equipment Factory has the ability to reduce energy consumption; Fully automatic control of the entire process of automatic feeding, heating, and discharging sorting; Adopting a fully automatic PLC central control system, providing users with simple and precise operability

Inquire Now Next Product

Product Details

【 Production Capacity 】【 Tempering Power Supply 】 200-800KW/2.5-4.0KHZ160-500KW/1.0-2.5KHZ0.6-2.5t/h

Quenching power supply

[Scope of Application]: Thickness 20mm-60mm, Width 80mm-500mm [Energy Conversion]: Self tempering after quenching, with a power consumption of 380-400 kWh per ton

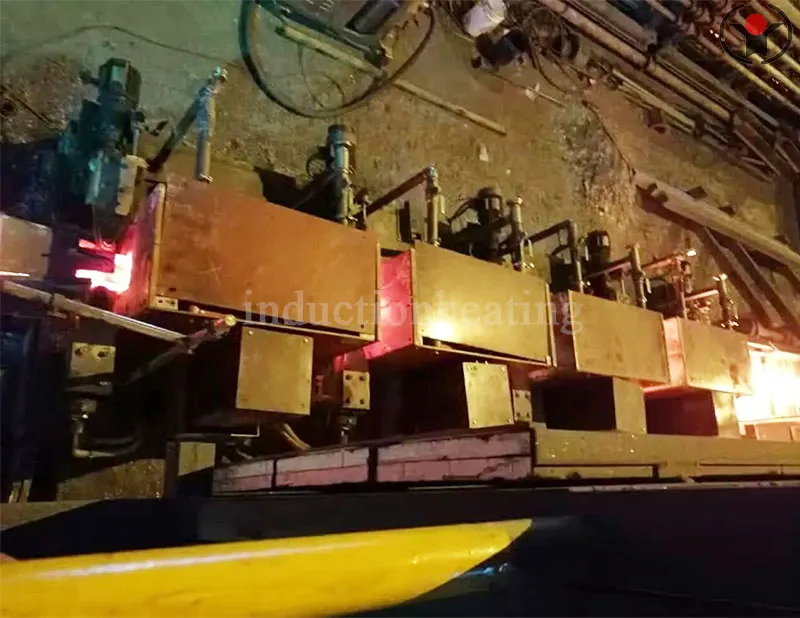

Plate quenching and tempering heat treatment equipment

To meet the heating efficiency requirements, the Forever electromechanical sheet quenching and tempering heat treatment equipment must ensure that the sheet is placed on the conveyor rack. The variable frequency transmission device sends the board into our factory's heating furnace for heating according to PLC instructions. The heating furnace is equipped with a variable frequency speed control drive device to ensure that the heated billet is uniformly heated according to temperature and efficiency requirements and sent to the conveying equipment before steel rolling. The temperature difference between the front and rear ends of the material is controlled within 50 ° C when it is discharged from the furnace.

Manufacturing standard

Manufacturing standard for plate quenching and tempering heat treatment furnace equipment ZBK46001-87 "Semiconductor frequency conversion device for induction heating" JB4086-85 "Technical conditions for electrical control equipment for medium frequency induction heating" GB10067.3-88 "Basic technical conditions for electric heating equipment Induction Heating Equipment "GB5959.3-88" Safety of Electric Heating Equipment - Special Requirements for Induction and Conductive Heating Equipment and Induction Melting "

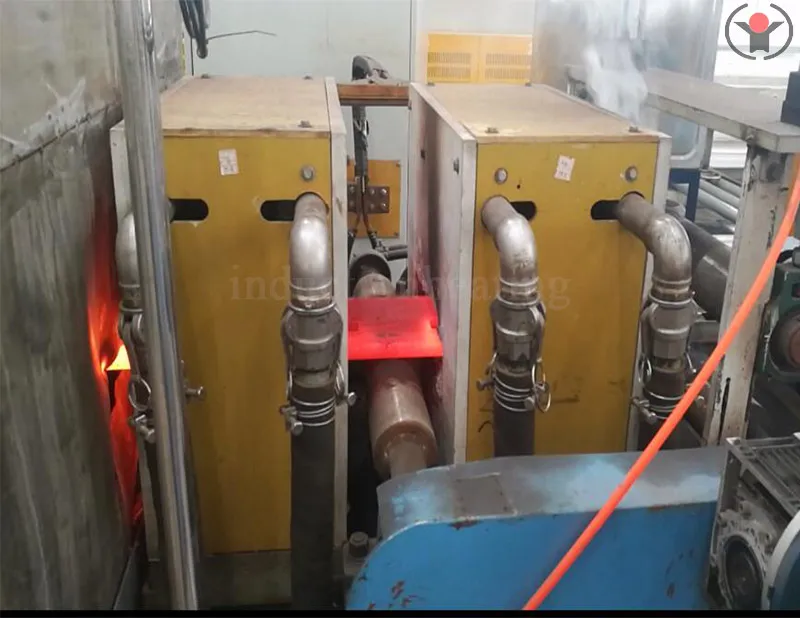

Plate quenching and tempering heat treatment equipment

Performance characteristics

Performance characteristics of Forever electromechanical sheet quenching and tempering heat treatment furnace equipment:

Strong systematicity

Split type structure, small footprint, strong completeness, fully automated production system from feeding to heating to discharging.

High heating efficiency

High heating efficiency, uniform heating of workpiece temperature, heating efficiency up to 85%, more energy-efficient and environmentally friendly compared to other heat treatment equipment of the same power. Strong performance and stable operation

The main components are all made of internationally renowned brands, and the entire set of plate local heating furnaces has excellent performance and economic benefits.

Easy and convenient operation.

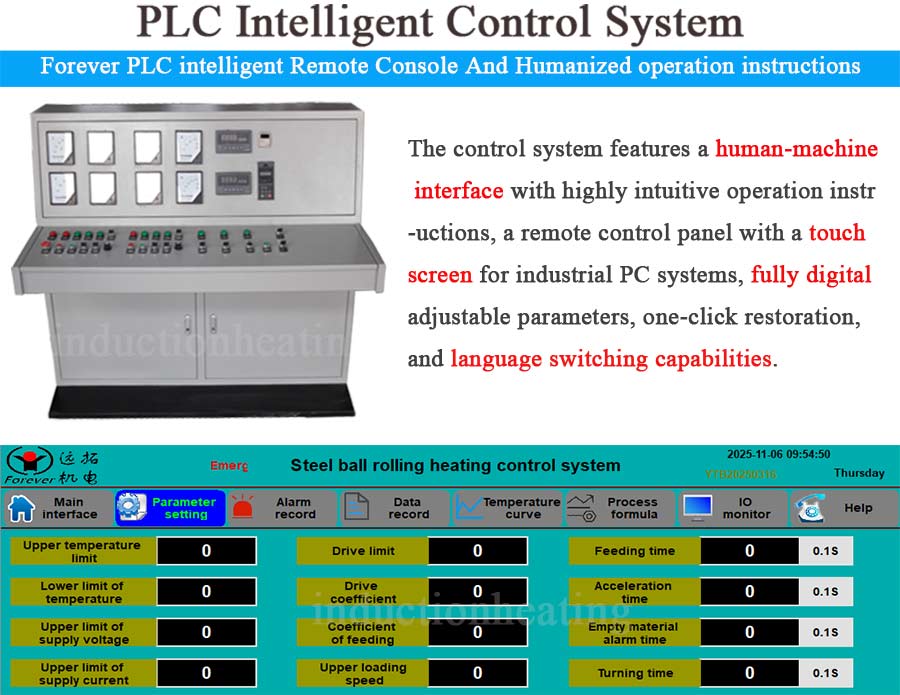

The electrical system of the plate quenching and tempering heat treatment production line adopts centralized control, and the heat treatment workshop can basically achieve unmanned operation and easy maintenance.

Equipment commitment

Equipment commitment for plate quenching and tempering heat treatment furnace:

1. We sincerely invite users to personally inspect the performance of the quenching and tempering heat treatment production line for the entire process and performance of the products. After the products are confirmed to be qualified, they will be packed and shipped.

2. In order to ensure the high reliability and progressiveness of the induction heating equipment, the equipment materials are selected from domestic or international high-quality brand-name products.

3. Under equal competitive conditions, our company sincerely offers you a discounted price without sacrificing product technical performance or changing the components of the sheet metal quenching and tempering heat treatment production line. The delivery time of the plate quenching and tempering heat treatment furnace equipment shall be on time according to the user's requirements. If there are special requirements that need to be completed in advance, our company can organize special production and installation to strive to meet the user's needs.

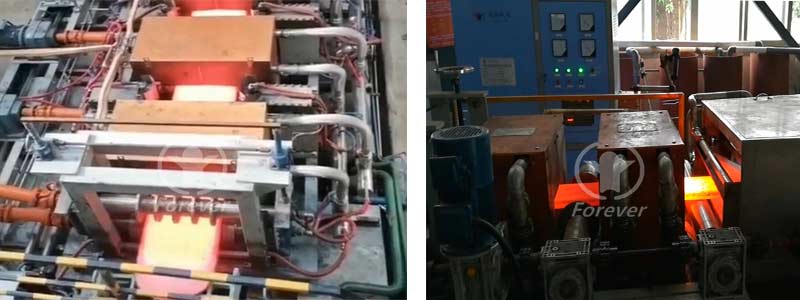

Plate quenching and tempering heat treatment equipment
