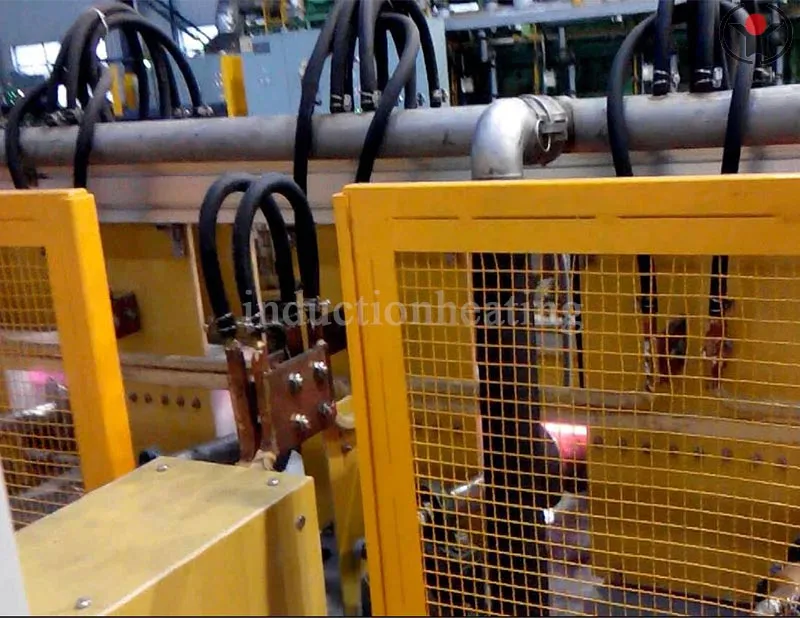

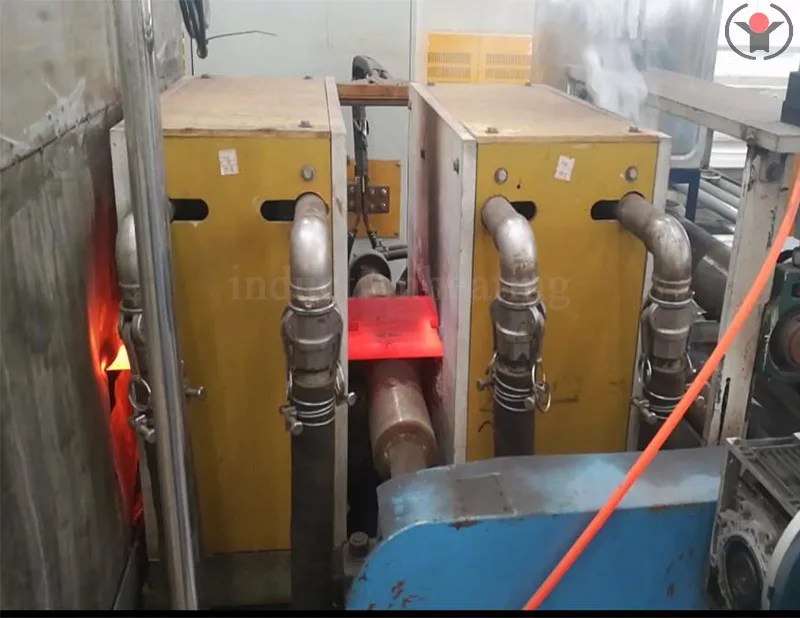

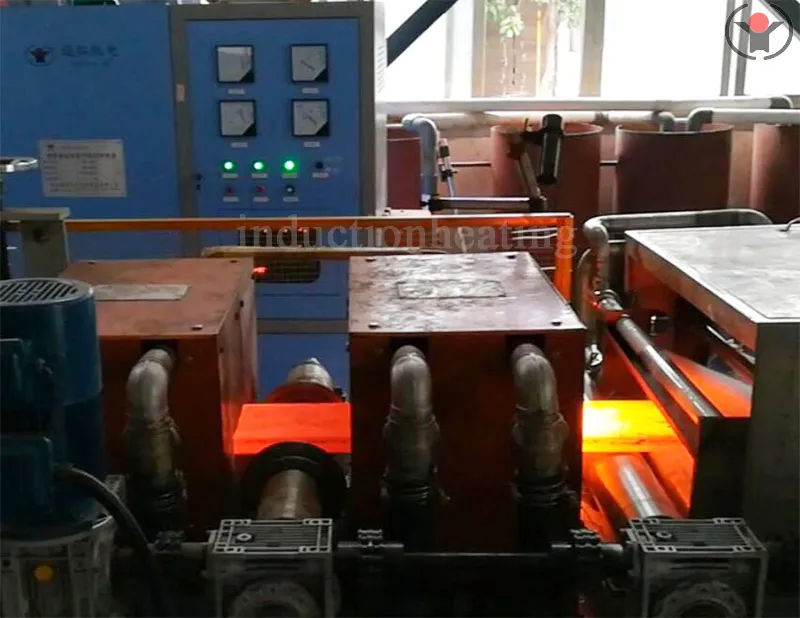

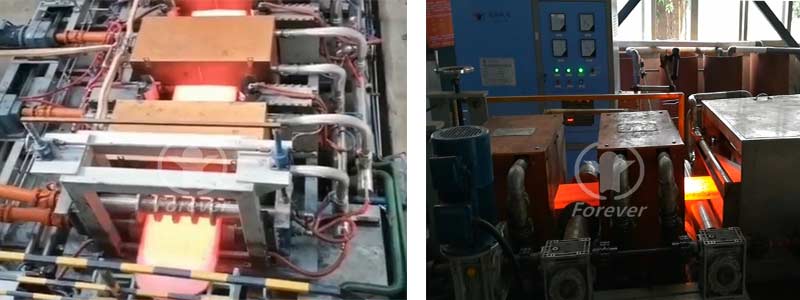

Steel plate induction heat treatment furnace

● Applicable workpieces: Suitable for medium frequency heat treatment of slab, steel plate, cutting edge plate, engineering blade plate, etc.

● Power supply system: quenching 200-800KW/2.5-4.0KHZ, tempering 160-500KW/1.0-2.5KHZ, hourly output 0.6-2.5 tons.

● Applicable range: thickness 20mm-60mm, width 80mm-500mm.

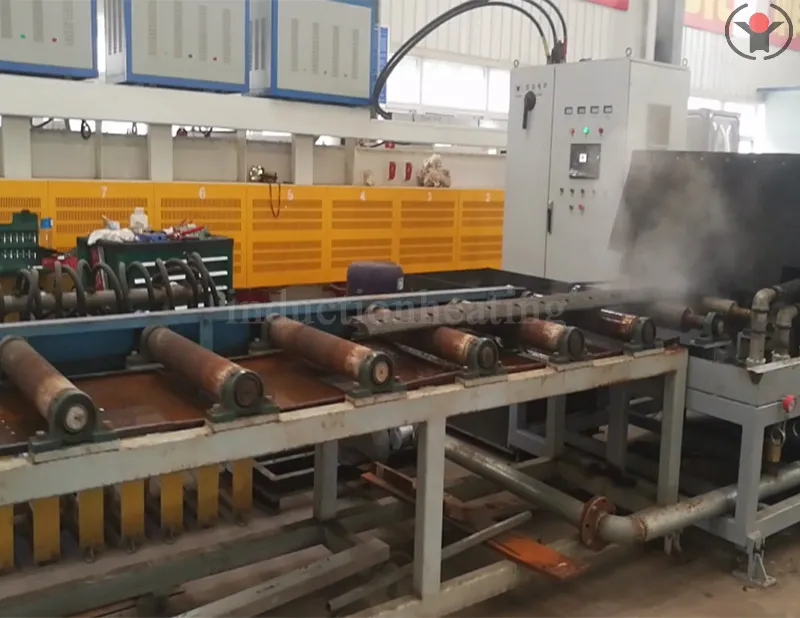

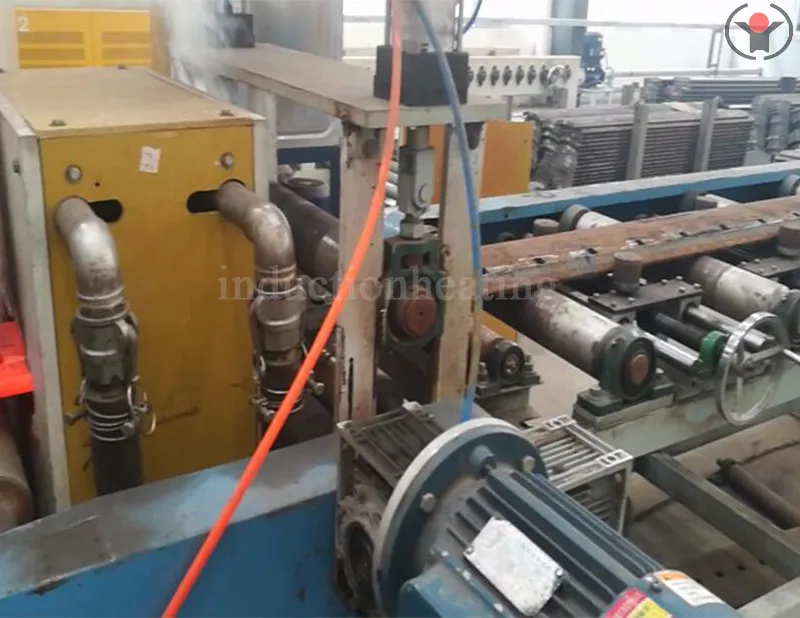

● Feeding system: roller conveyor+power double pinch roller, each axis is driven by an independent motor reducer and controlled by an independent frequency converter; Flexible design of differential output, segmented control of operating speed.

● Roller electrical isolation: In response to the problem of workpiece and roller ignition, we have designed a sturdy and durable roller electrical isolation system to solve the problem of workpiece ignition damage.

● Recipe management function: A powerful recipe management system that automatically calls relevant parameters after selecting the steel grade and plate type parameters to be produced, without the need to manually record, view, or input the required parameter values for various workpieces.

● Energy conversion: using quenching+tempering method, with a power consumption of 380-400 kWh per ton.

● Good straightness

Adopting the Forever steel plate induction heat treatment production line, the straightening function is designed during the heat treatment process, and the sheet metal can achieve good straightness after heat treatment;

● Uniform heating temperature, high temperature control accuracy, small temperature difference, and no pollution

The Forever series variable frequency power supply is easy to directly and accurately detect changes in load current, thereby achieving closed-loop control of output power. The product has high precision in heating temperature control and small temperature difference between the core and the surface. There will be no harmful gases, smoke, or other environmental pollutants during the production process.

● High degree of mechanization and automation

The high degree of intelligence in power supply, temperature adjustment, frequency conversion automatic tracking, variable load adaptive, power automatic adjustment and other intelligent advantages enable "one click" operation, truly realizing automated and intelligent induction heating.

● Temperature closed-loop, intelligent, PLC overall operation control system

Infrared thermometer measures the heating temperature of the billet at the outlet of the induction heating furnace, monitoring for overheating or incomplete heating. To control the temperature of the sheet metal within the target range. Reduced the generation of non-conforming products and ensured consistency in product quality.
