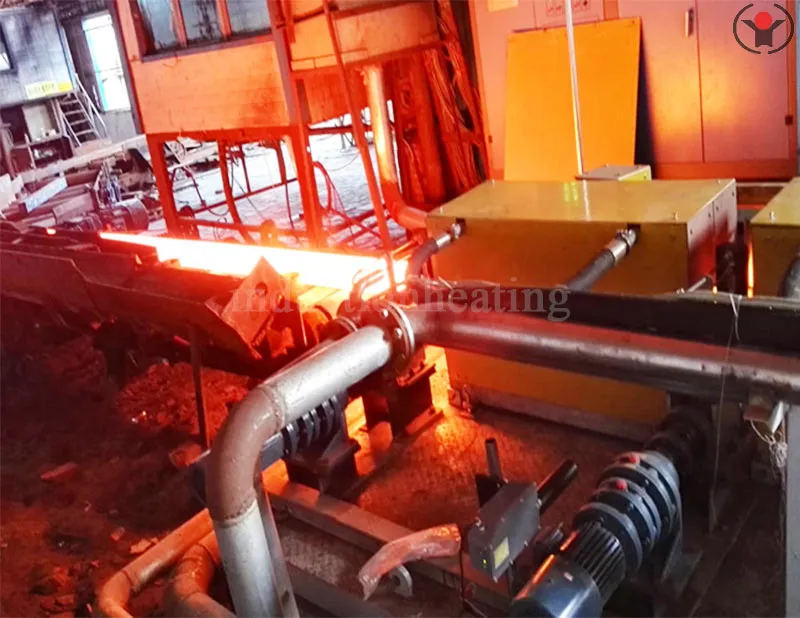

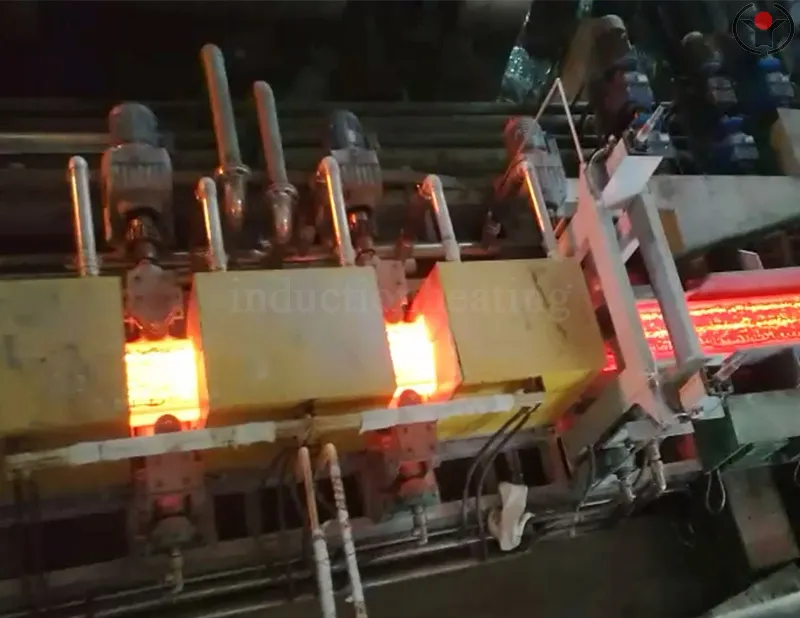

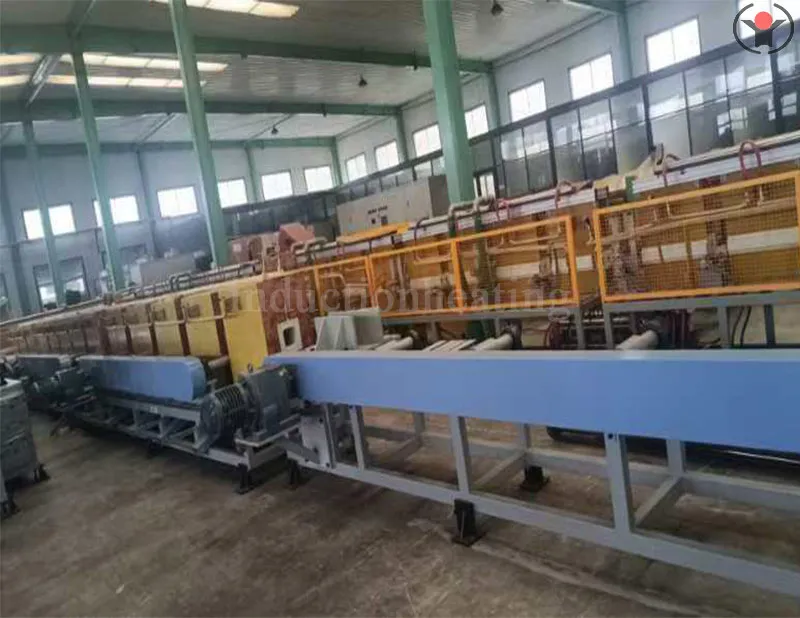

Steel billet continuous casting and rolling heating system

[Equipment power]

1000KW-12000KW

【 Device Frequency 】 500HZ-1200Hz

Production capacity

40-300t/h

[Workpiece size]: 120mm-160mm square billet, length 3000mm-12000mm

[Applicable workpieces]: Steel billets, square billets, square steel

Energy Conversion: Depending on the surface temperature of the steel billet, the power consumption per ton of steel is 40-60 degrees.

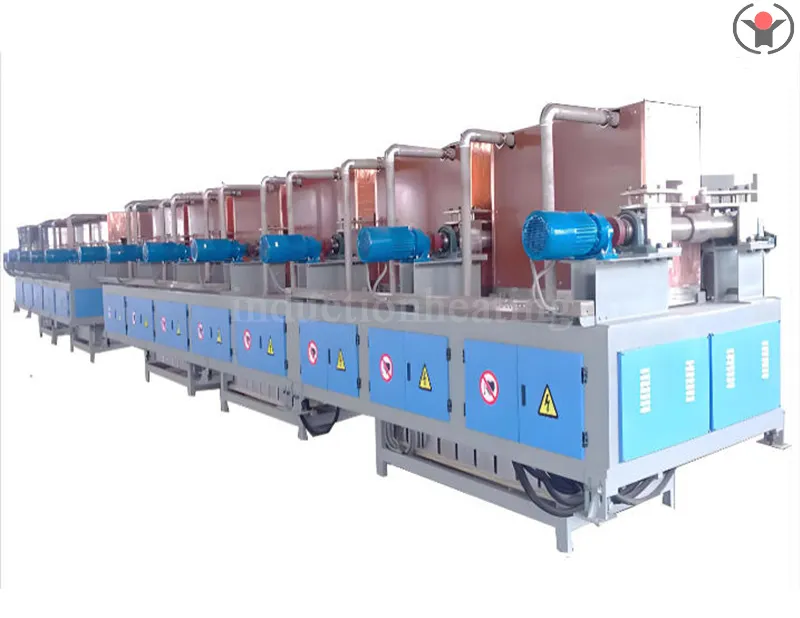

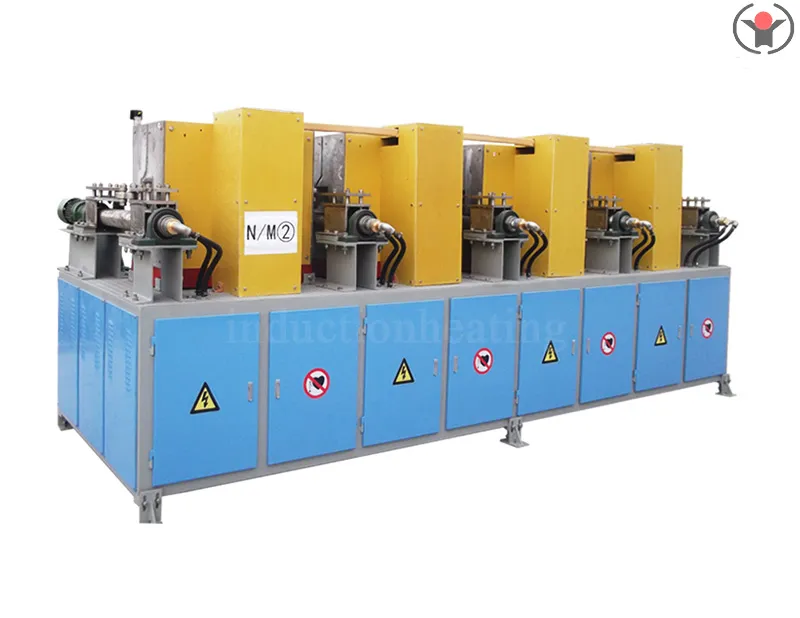

Technical parameters of steel billet continuous casting and rolling heating furnace:

Equipment brand: Forever Electromechanical

Equipment name: Steel billet continuous casting and rolling heating furnace

Steel material: Q235q, Q345q, Q245R, A32, D32, A36, D36, etc. Steel billet size range: (6mm * 6mm) - (500 * 500mm) Steel billet length range: 2 meters or more

Characteristics of steel billet continuous casting and rolling heating furnace:

1. The heating furnace for continuous casting and rolling of steel billets adopts induction heating technology for heat treatment, which not only has low environmental pollution and high production efficiency, but also has a higher cost than gas heating; If used during low peak periods of electricity consumption, the cost is lower. The engineer specifically designed the process parameters and process control design to be reasonable. The steel billet continuous casting and rolling heating furnace adopts the American Leitai thermometer to control the temperature, and displays the current temperature of the steel billet in real time at the discharge end, resulting in more uniform heating and higher production efficiency.

2. The heating equipment for continuous casting and rolling of steel billets is a non-standard product, and induction coils need to be designed according to the user's production requirements when ordering.

3. The maximum bending degree of steel before entering the furnace: there are different degrees of bending degrees depending on the type of steel. What should I do if the curvature of the steel is greater than 3mm/m before entering the electric furnace? Our designed continuous casting and induction heating equipment can meet your requirements by adjusting the size of the sensor according to the degree of bending of your steel grade.

4. Control system: The entire heating process of the steel continuous casting and rolling heating equipment is automatically controlled by PLC, and production records such as heating quantity are displayed in a timely manner. This console is used independently, with a specially customized human-machine interface for the continuous casting steel heating furnace, highly user-friendly operation instructions, fully digital and deep adjustable parameters, and a one click restore function. It is easy to operate. 5. Feeding and guidance system: each axis is driven by an independent motor reducer, with multiple axis drives set up and a single frequency converter controlled to synchronize the operation of multiple axes. The components are selected from well-known brands, with reliable quality and stable operation. Using 304 non-magnetic stainless steel guide wheels, the axial elasticity of the guide wheels is maintained to adapt to the allowable bending range of the steel billet. 6. The closed-loop temperature control system for the continuous casting and rolling heating furnace of steel billets is composed of the American Leitai infrared thermometer and the German Siemens S7. The power supply is automatically adjusted according to the initial temperature and feed rate of the steel billet entering the induction heater, so that the heating temperature remains constant before the furnace is discharged and the workpiece is heated uniformly. 7. Separate design of capacitor cabinet and furnace body cabinet for steel billet continuous casting and rolling heating furnace (capacitor cabinet location according to user requirements)
