Main technical parameters of the equipment: Power supply system: 160-1000KW/0.5-2.5KHz, hourly output of 0.5-3 tons. ·Scope of application: 015-0150. Energy conversion: using quenching method, with a power consumption of 260-280 kWh per ton. ·Main application: Suitable for medium frequency heat treatment of round steel, low-carbon alloy steel, steel bars, bar materials, etc. ·Temperature closed-loop control: The quenching adopts a Leitai infrared thermometer and forms a closed-loop control system with Siemens S7, with high temperature control accuracy.
Product Details

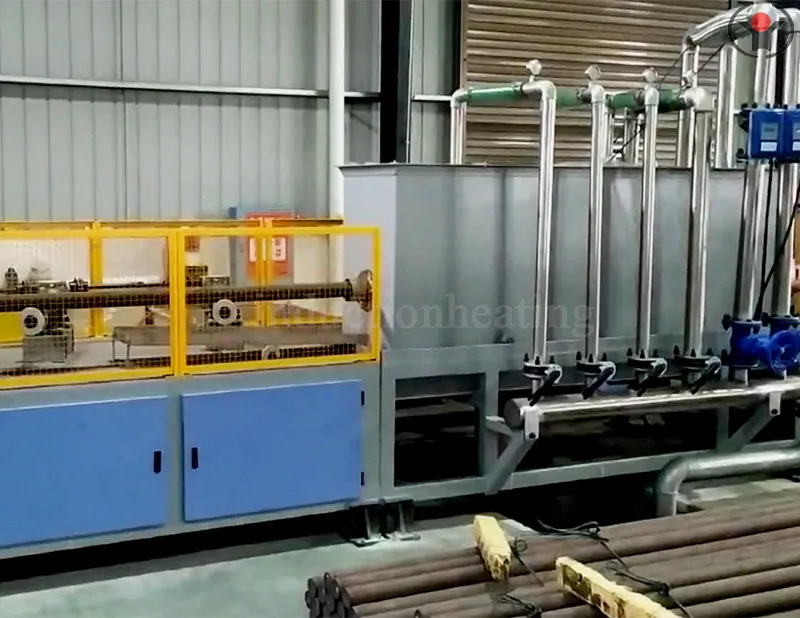

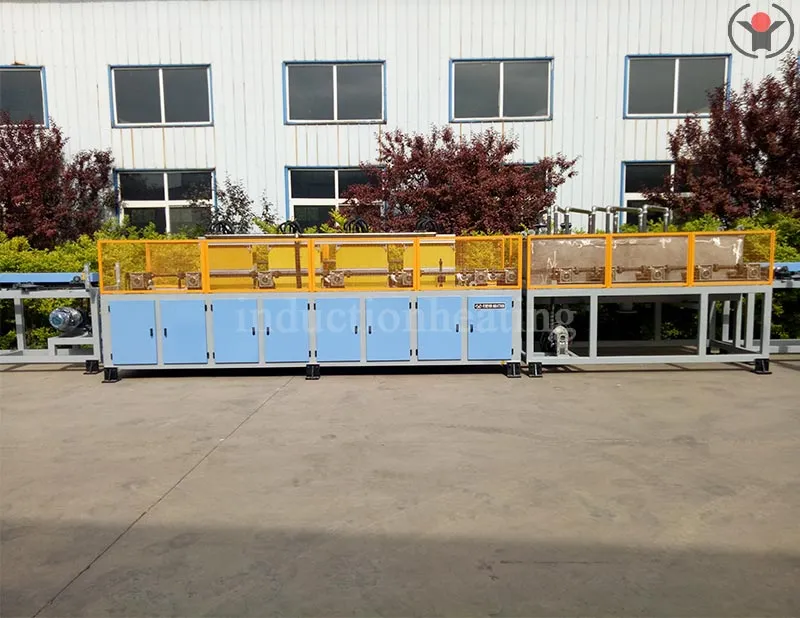

Main technical parameters of round steel heat treatment production line:
·Main application: Suitable for medium frequency heat treatment of round steel, low-carbon alloy steel, steel bars, bar materials, etc.
Power supply system: 160-1000KW/0.5-2.5KHz, hourly output of 0.5-3 tons.
Scope of application: 015-0150.

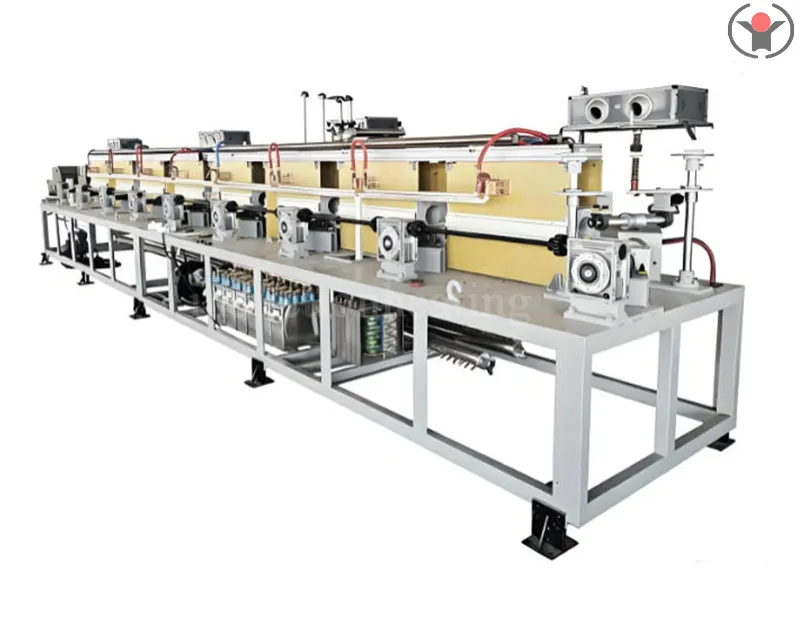

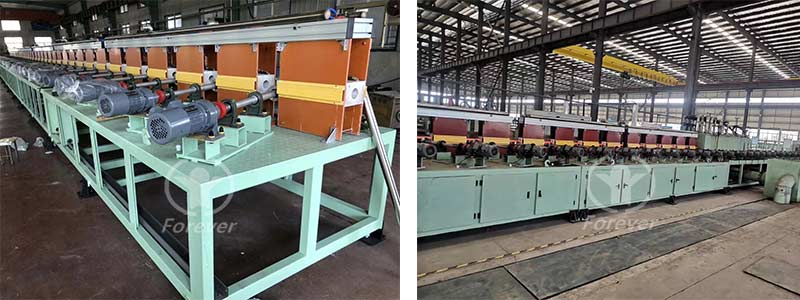

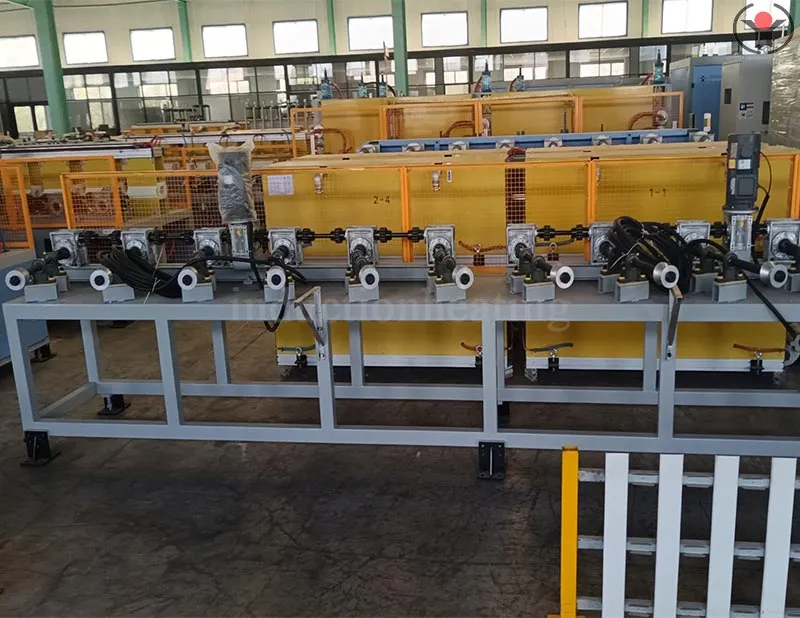

Conveyor roller conveyor: The axis of the roller conveyor forms an angle of 18-21 ° with the axis of the workpiece. The workpiece rotates while moving forward at a constant speed, making heating more uniform. The roller conveyor between the furnace bodies is made of 304 non-magnetic stainless steel and water-cooled.
Roller grouping: The feeding group, sensor group, and discharge group are independently controlled, which is beneficial for continuous heating without creating gaps between workpieces.
Spray system: It adopts multi-stage spray cooling, and the pressure and flow rate between each level of spray ring can be adjusted to meet the requirements of different hardenability.
Temperature closed-loop control: The quenching adopts a Leitai infrared thermometer and forms a closed-loop control system with Siemens S7, with high temperature control accuracy.
Industrial control computer system: Real time display of the current working parameter status, workpiece parameter memory, storage, printing, fault display, alarm and other functions.
Energy conversion: using quenching method, with a power consumption of 260-280 kWh per ton.
Advantages and characteristics
Advantages and characteristics of round steel heat treatment production line:
1. High degree of automation, capable of achieving intelligent management and unmanned operation;
2. The equipment adopts induction heating, which improves heating speed, shortens production cycle, and improves working conditions;
3. One click operation improves production organization level and ensures product quality;
4. Improved the production environment, purified the workshop, and reduced the labor intensity of operators;
5. Reduced the oxidation process of round steel, increased the utilization rate of round steel, and saved production costs.
