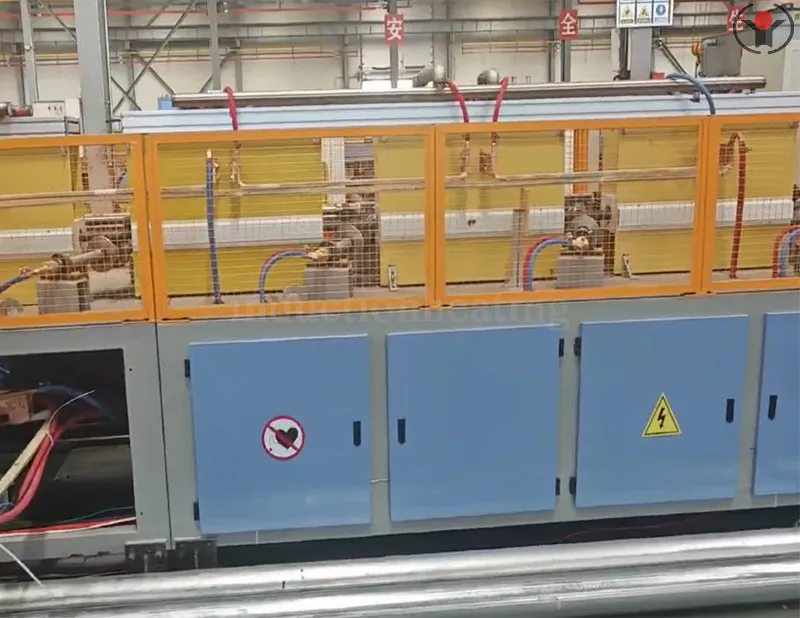

PC steel bar quenching and tempering furnace

Product Details

Quenching power/frequency :160-1000KW/0.5-4KHz

Tempering power/frequency: 100-600KW/0.5-2.5KHz

Production capacity:0.5-3.5t/h

Scope of application: 20mm-0120mm

Main Application: Suitable for quenching and tempering heat treatment of steel bars, low-carbon alloy steel, wind turbine bolts, lead screws, and hydraulic cylinder rods.

Energy Conversion: Adopting self tempering method after quenching, with a power consumption of 360-400 kWh per ton.

Forever Electromechanical specializes in providing customers with energy-saving, environmentally friendly, and efficient PC steel bar quenching and tempering furnaces, PC steel bar heat treatment quenching furnaces, and PC steel bar electric heating equipment. The input and output systems are made of 304 non-magnetic stainless steel material welded together, which is wear-resistant and has a long service life. After quenching and tempering treatment, there is less oxidation and decarburization. When purchasing

medium frequency induction heating equipment, choose Forever Electromechanical Equipment Manufacturing Co., Ltd.

Process parameters of PC steel bar heat treatment quenching furnace:

1.Round steel material: Q195、Q235,10#、20#、35#、45#、304,316,20Cr、40Cr、20CrMo、35CrMo、42CrMo, 40CrNiMo, GCr15, 65Mn, 50Mn, 50Cr, 3Cr2W8V、 20CrMnTi, 5CrMnMo

2. Workpiece diameter range: 10mm~150mm in diameter

3.Workpiece length range: 2m or more

4. Intelligent quenching intermediate frequency power supply power range: KGPS160KW-1000KW

IGBT induction power supply range: KGPS100KW-600KW4. Power consumption: calculated based on the material and diameter of the customer's workpiece, the heating temperature of the workpiece, the operating speed, etc.

PC steel bar quenching and tempering furnace

Product execution standards

GB/T10067.1-2005 "Basic Technical Conditions for Electric Heating Equipment - General Part" 2. GB/T10066.1-2004 "Test Methods for Electric Heating Equipment - General Part" 3. GB/T10067.3-2005 "Basic Technical Conditions for Electric Heating Equipment - Induction Electric Heating Equipment"

PC steel bar quenching and tempering furnace

characteristics

The characteristics of PC steel bar heat treatment quenching furnace are:

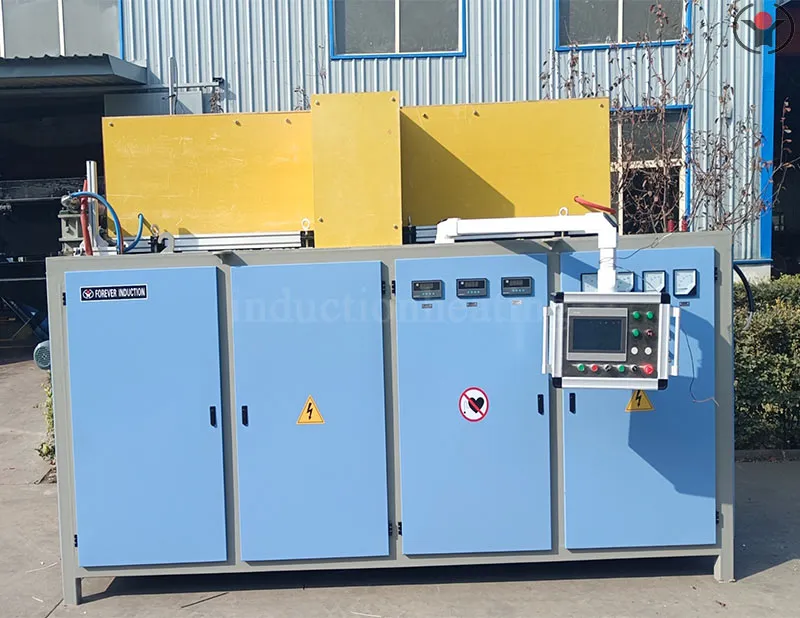

1. The PC steel bar quenching and tempering machine is controlled by an intermediate frequency series resonant induction heating power supply, fully digital, and displayed on a touch screen.

2. PC steel bars require uniform heating, quenching, and tempering, high temperature control accuracy, easy to achieve uniform heating, and small temperature difference between the core and surface. The temperature control system can achieve precise temperature control.

3. Fast heating speed, less oxidation and decarbonization, long service life of PC steel bar quenching and tempering furnace

4. Carefully designed according to the user's required process, with a high degree of automation, coupled with pLc control system, it can achieve fully automatic operation. 5. The PC steel rod electric heating equipment adopts imported motors, with each axis motor driven by a reducer, independent frequency converter control, and segmented control of operating speed, so that the PC steel rod workpiece can move forward at a constant speed, heat evenly, and quench evenly.

6. The replacement of induction furnace body is simple. Different specifications of induction furnace body can be configured according to the different dimensions of the workpiece. Each furnace body is designed with quick change connectors for water and electricity, making it easy, fast, and convenient to replace the furnace body. The furnace body can be replaced within 2 minutes.

7. The PC steel bar quenching and tempering equipment has low energy consumption, no pollution, and stable process.

After sales Service

Forever Electromechanical PC round bar heat treatment production line After sales Maintenance Service:

Forever Electromechanical specializes in producing PC steel bar heat treatment quenching furnaces, which can provide customers with systematic process development, complete engineering design, manufacturing, debugging, and maintenance of PC steel bar electric heating equipment, after-sales service, etc. For detailed information about PC steel bar electric heating equipment, please consult Yuantuo Electromechanical technicians. We provide reasonable quotations and solutions for PC steel bar quenching and tempering furnaces. Our medium frequency induction heating equipment has a one-year warranty period and provides lifelong technical and maintenance services.
