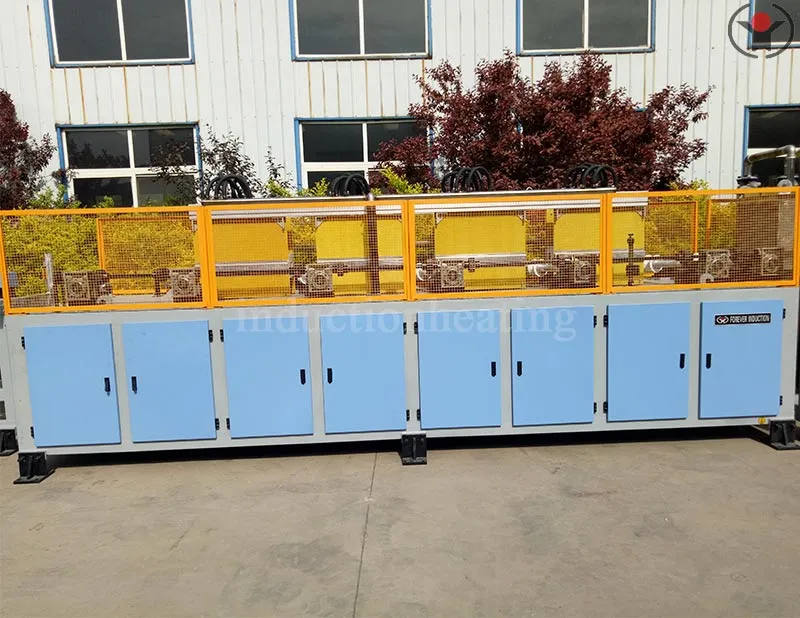

Round steel bar heat treatment and tempering equipment can improve product quality, shorten production cycles, improve working conditions, and enhance production organization level. The widely used surface heat treatment currently is induction heat treatment, which can be applied to quenching, tempering, normalizing, quenching and tempering, heat transfer, etc.
Product Details
【 Quenching power/frequency 】
160-1000KW/0.5-4KHz
【 Tempering power/frequency 】 100-600KW/0.5-2.5KHz
Production capacity
0.5-3.5t/h
[Scope of application]: 20mm-0120mm
【 Main Application 】: Suitable for quenching and tempering heat treatment of steel bars, low-carbon alloy steel, wind turbine bolts, lead screws, and hydraulic cylinder rods.
[Energy Conversion]: Adopting self tempering method after quenching, with a power consumption of 360-400 kWh per ton.
Forever Electromechanical Equipment Manufacturing Co., Ltd. is a strong enterprise specializing in the research and development, design, manufacturing, sales, and service of steel bar quenching and tempering furnaces. Forever electromechanical round steel bar quenching and tempering equipment realizes automation and mechanization production, reducing labor intensity for workers. Welcome to Forever Electromechanical Equipment. We provide you with a constructive technical solution for round steel bar heat treatment furnaces
working principle and the applications
What is the working principle of bar heating equipment?

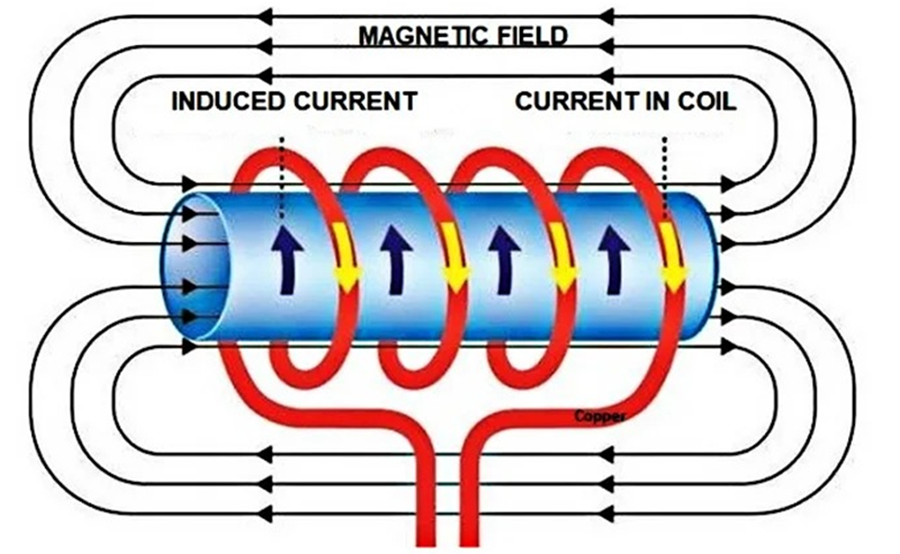

The principle of induction heating: Place the workpiece inside the sensor to generate an alternating magnetic field. Induced current of the same frequency is generated in the workpiece, which is unevenly distributed on the surface and weak inside, approaching zero at the center. By utilizing this skin effect, the surface of the workpiece can be rapidly heated, and the surface temperature can rise to 800-1000 ° C within a few seconds; C， And the temperature rise in the core is very small.
What are the applications of round steel bar quenching and tempering equipment?
Round steel bar heat treatment furnace can improve product quality, shorten production cycle, improve working conditions, and enhance production organization level. The widely used surface heat treatment at present is induction heat treatment, and the round steel bar heat treatment furnace is suitable for mechanized large-scale production, which can be controlled by computer and achieve unmanned operation.
Performance characteristics
Performance characteristics of steel bar quenching and tempering furnace:
1. The central control circuit board of the round steel bar quenching and tempering equipment is optimized by computer design, with optimized combination of unit circuits. The device has stable performance, reliable quality, and strong anti-interference ability.
2. The round steel bar quenching and tempering equipment is equipped with automatic frequency scanning and repeated start-up function, with a high success rate of over 99% in equipment start-up.
3. The steel bar quenching and tempering treatment equipment is small in size and easy to install. It can be connected to a 380V three-phase power supply, with water inlet and outlet, and can be completed in a few minutes.
4. The layout of equipment components is coordinated and reasonable, and maintenance is convenient.
5. The protection systems for overvoltage, overcurrent, undervoltage, water shortage, phase loss, voltage and current limiting of the steel bar quenching and tempering furnace are complete and complete, thereby ensuring the reliability and stability of the equipment's use;
6. The round steel bar heat treatment furnace has low heat dissipation and high heating efficiency, and the overall efficiency can reach over 85%.
7. Due to the use of energy-saving and excellent components, the entire machine has a long lifespan.
