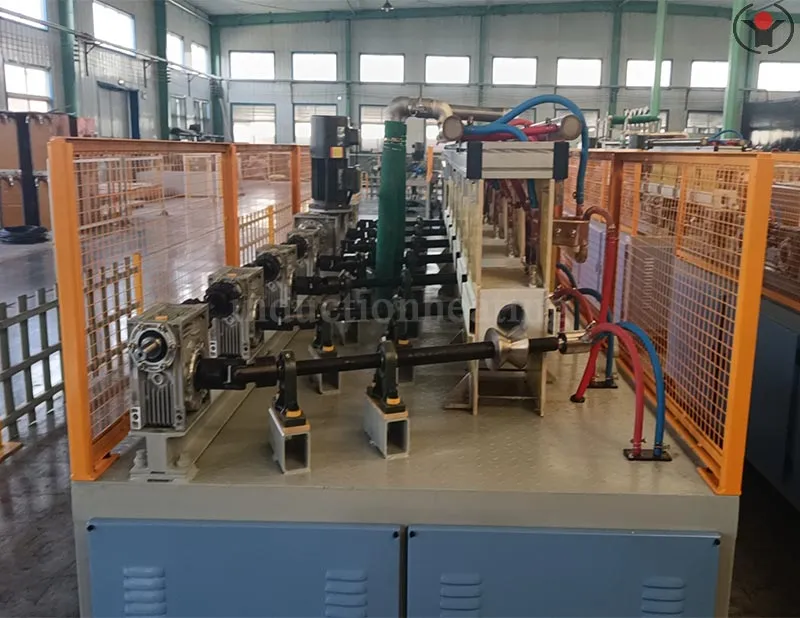

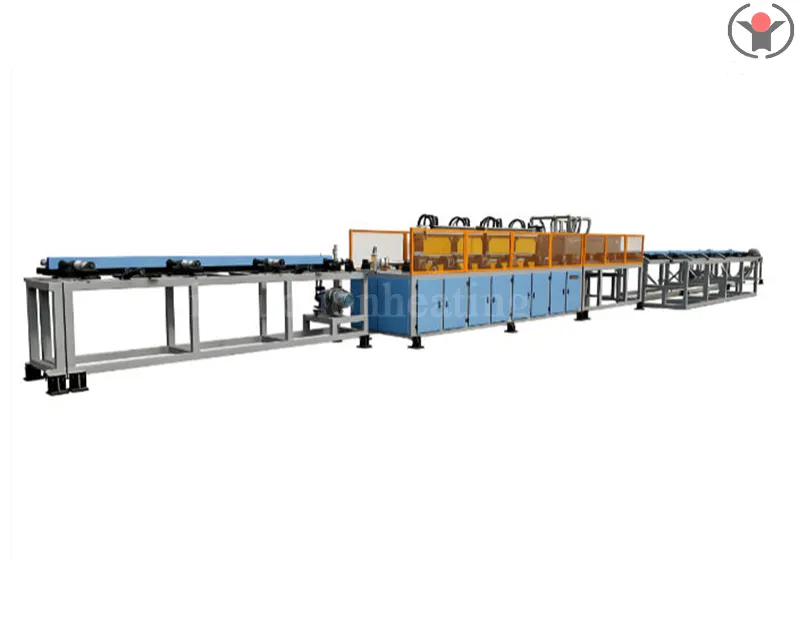

Steel bar induction quench and temper machine
Hebei Forever Electromechanical Equipment Manufacturing Co., Ltd. is a professional manufacturer of steel bar induction quench and temper machine in China. The steel bar induction quench and temper machine is a device that uses induction heating technology to perform quenching and tempering heat treatment on steel bars.
The core of the equipment consists of an intermediate frequency power supply and an inductor. The current passes through the inductor to generate an alternating magnetic field, which induces current on the surface of the steel rod and instantly heats it up to 850-920 ℃. Subsequently, the steel rod enters the annular spray system, and the surface rapidly cools, forming a high hardness martensitic layer. Finally, through induction tempering, the temperature is controlled at 500-650 ℃ to eliminate stress and improve toughness, achieving "external hardness and internal toughness".
Design concept of teel bar induction quench and temper machine
Power supply: 1600-5000kW medium frequency series power supply, ensuring uniform heat transfer of large-sized steel bars;
Induction heater: 3-5 zone independent power regulation, compatible with Φ 20-150mm steel bars;
Cooling system: annular segmented spray, adjustable flow rate and water pressure, hardened layer depth of 2-6mm;
Tempering system: Induction tempering, temperature control range of 500-650 ℃, rapid stress relief;
Control system: PLC centralized control, equipped with infrared temperature measurement, flow monitoring, and energy consumption statistics.

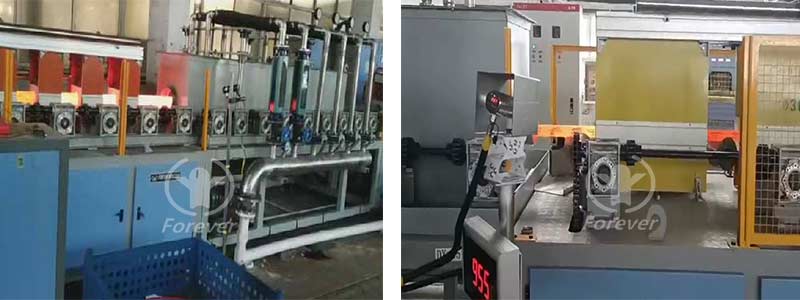

Induction heat treatment furnace case

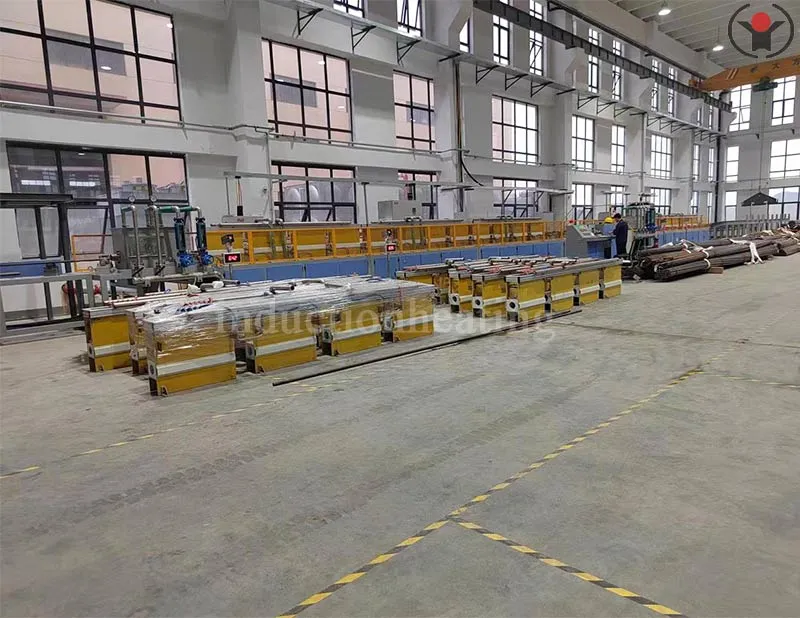

Workshop
Customer visiting
Transportation
Contact Us
If you are also interested in this machine,please don’t hesitate to contact us:
Overseas manager: Tom Wang
Email:tom@foreverfurnace.com
Phone/Wechat/Whatsapp:+86 13303078975
