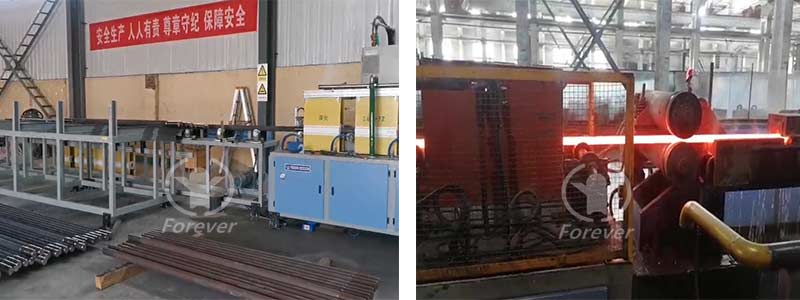

Wind turbine bolt induction hardening and tempering equipment

Inquire Now Next Product

Forever Wind Power Bolt Quenching and Tempering Heat Treatment Equipment is a fully automatic quenching and tempering heat treatment production line designed specifically for long axis workpieces such as wind power bolts. It uses medium frequency induction heating technology to achieve a seamless process of heating, spray quenching, and tempering.

Wind turbine bolt induction hardening and tempering equipment

Tempering power/frequency: 160-1000KW/0.5-4KHz

Quenching power/frequency: 100-600KW/0.5-2.5KHz

Production capacity: 0.5-3.5t/h

Scope of application: 20mm-120mm

Main application: Suitable for quenching and tempering heat treatment of steel bars, low-carbon alloy steel, wind turbine bolts, lead screws, and hydraulic cylinder rods.

Energy conversion: using quenching and self tempering method, with a power consumption of 360-400 kWh per ton.

Characteristics of Wind turbine bolt induction hardening and tempering equipment

Highly automated: supports one click start, unmanned operation, equipped with data traceability system.

Efficient and energy-saving: The electricity consumption per ton is about 260kWh, and it can process workpieces with diameters ranging from 6mm to 80mm and lengths ranging from 500mm to 8000mm.

Widely used: specially designed for wind power anchor bolts, lead screws, hydraulic rods, etc., with production and quality ranking among the top in the industry.

Wind turbine bolt induction hardening and tempering equipment
