Steel ball rolling preheating furnaces are sold both domestically and internationally, and Forever Electromechanical provides comprehensive quotations and consulting solutions The steel ball rolling heating equipment adopts a PLC control system, with touch screen display and operation, high degree of automation, energy saving and environmental protection.
Product Details
[Equipment power] KGPS200KW-6000KW or IGBT200KW-IGBT2000KW
Production capacity
0.2-16t/h
[Raw materials]: B2, B3, B6, 70Cr2, 75Mncr, 65Mn, 60Mn, GCr15, 40Cr, 45 # [Energy conversion]: Heating to 930 ° C~1050 ° C, power consumption 260~280 ° C
The main configuration of Forever Electromechanical Steel Ball Rolling Preheating Furnace includes: intermediate frequency power supply, heating furnace body, infrared temperature measurement, PLC automatic temperature control, material storage platform and automatic flipping, conveyor roller, etc.

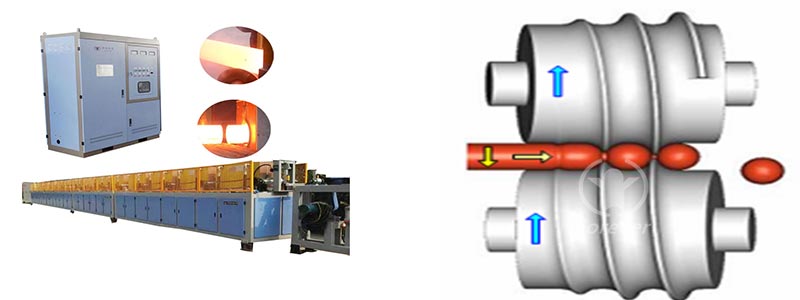

The composition and purpose of steel ball rolling heating equipment, steel ball production line and temperature control device are composed of induction heating power supply, furnace cabinet, capacitor group, heat transfer furnace body, pinch roller, power furnace body connection line, operation console, infrared thermometer, PLC control system, etc. Used for heating the billet to the rolling temperature and entering the inclined rolling mill for rolling, the heating furnace of the steel ball rolling preheating furnace adopts advanced infrared temperature measurement control, which can automatically control the production efficiency and heating temperature of the steel ball rolling heating equipment through PLC parameter setting. It can fully match the rolling speed of the rolling mill to achieve isothermal rolling in the rolling process. The steel ball continuous rolling heating equipment adopts the principle of electromagnetic induction heating. Compared with traditional heating equipment such as gas furnaces and coal-fired furnaces, the heating is more uniform, and the surface of the billet does not produce oxide scale or burn damage. It has high automation production capacity
characteristics
1. The ball rolling machine adopts a cast steel semi closed frame with good rigidity of the base;
2. The bar heating equipment is easy to adjust and operate;
3. Secure locking and high stability;
4. The guide plate replacement is simple, fast, and efficient. To ensure the stable, efficient, and high-quality operation of the steel ball rolling production line.
5. Automatic control of heat treatment and quenching temperature for steel ball continuous rolling heating equipment to ensure quenching quality;
6. Automatic feeding function to improve yield.
7. The produced steel balls have exquisite appearance, high hardness, and low damage rate.
Steel ball rolling preheating furnace service
commitment
1. Our company promises to provide steel ball rolling heating equipment with a warranty period of twelve months.
2. The induction heating equipment provided by our company is a brand new, complete, and high-quality product.
3. Our company promises that the maintenance organization has sufficient spare parts to meet the maintenance needs.
4. After the warranty period of the steel ball rolling heating equipment, if there are any problems with the user's equipment, they can contact our after-sales maintenance department at any time. We will promptly solve the equipment problems for the user and ensure the normal operation of the equipment.
