Steel ball skew rolling process

【Equipment power】KGPS200KW-6000KW or IGBT200KW-IGBT2000KW

【Production capacity】0.2-16t/h

【Raw Material】B2, B3, B6, 70Cr2, 75Mncr, 65Mn, 60Mn, GCr15, 40Cr, 45#

【Energy Conversion】Heating to 930C-1050C, consuming 260-280 kWh of electricity

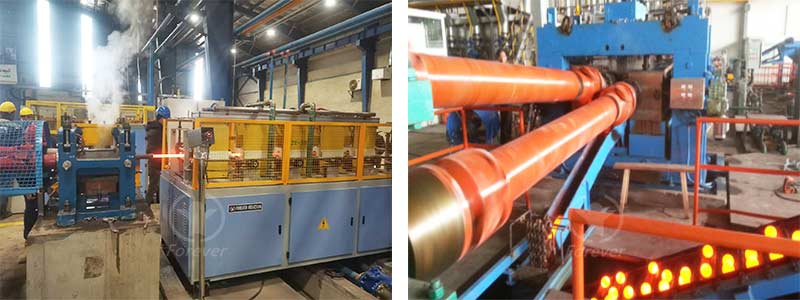

Steel ball skew rolling process

Composition and Application of steel ball skew rolling process

Composition: The induction heating furnace and temperature control device consist of an induction heating power supply, furnace cabinet, capacitor group, heat transfer furnace body, clamping roller, power supply furnace body connection line, operation console, infrared thermometer, PLC control system, etc., forming a steel ball heating heat treatment furnace.

Purpose: Used for heating round steel billets to the rolling temperature and entering the inclined rolling mill for rolling. The heating furnace adopts advanced infrared temperature measurement and closed-loop control. The production efficiency and heating temperature of the steel ball heating treatment equipment can be fully matched with the rolling speed of the rolling mill through PLC parameter setting, achieving isothermal rolling in the rolling process. Secondly, compared with gas furnaces and coal-fired furnaces, induction heating heats the surface of the billet without oxidation and uniformly, and can be used and stopped immediately. It occupies a small area and can be connected to an automated production line to avoid waste of billet heating caused by subsequent mechanical failures.
