Automatic feeding steel billet induction heating process,steel billet induction heating machine,billet heater

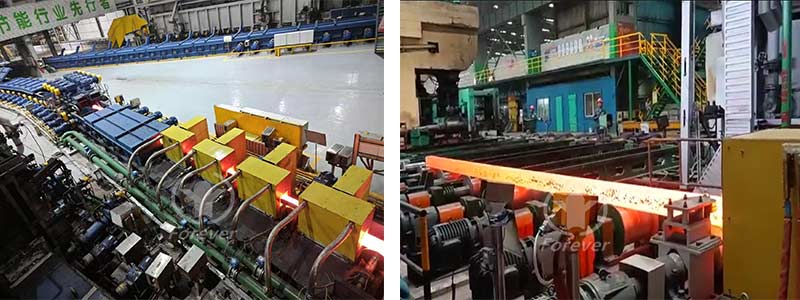

Automatic feeding steel billet induction heating process

Forever Electromechanical custom-manufactures this steel billet induction heating furnace. Dual 22kV/660V power transformers are available, providing a 5000kVA output. The medium-frequency power supply uses 12-pulse rectification to minimize harmonic pollution and improve efficiency.

Automatic feeding steel billet induction heating process

【Power Range】1000kW-12000kW

【Frequency】500Hz-1200Hz

【Production Capacity】40-300t/h

【Workpiece Size】120mm-160mm square billets, 3000mm-12000mm in length

【Applicable Workpieces】Billets, billets, and square steel

【Energy Conversion】Depending on the billet surface temperature, the power consumption per ton of steel is 40-60kWh.

The main features of the Automatic feeding steel billet induction heating process

1. The steel billet induction heating furnace does not produce ignition during the heating process, and operates reliably and stably;

2. The temperature inspection device unique to each branch of the fully digital control and thyristor is intuitive and convenient.

3. Low power consumption, good economy, long operation, and low cost.

4. The entire set of steel billet induction heating furnace can be designed in a fully enclosed form with clear warning signs, which not only looks beautiful but also greatly improves safety; The implementation of multiple protective measures provides reliable guarantees for the safe operation of equipment.

5. Mature design and continuous improvement have resulted in almost zero failure rate of steel billet induction heating equipment.

6. Flexible use and reduced operator requirements. The entire set of steel billet induction heating furnace is controlled by full digitization and equipped with various instrument displays, which are intuitive and convenient; The button based operation method is simple and easy to learn, reducing the requirements for the operator.

7. Good economy, excellent performance, high quality, reasonable price, long-term benefits from one investment, completely eliminating the expenditure of later costs caused by performance and quality issues.

After Sales Service Commitment

1. Technical after-sales service with professional engineers for overseas equipment.

2. On site technical service guidance and training for operators to proficiently operate the entire equipment.

3. The warranty period is 12 months and online permanent service is provided.

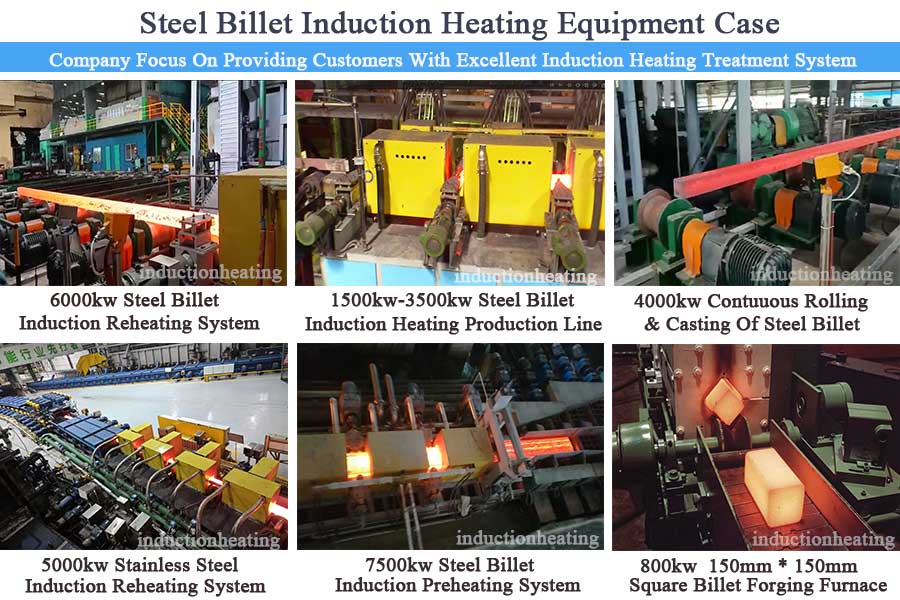

steel billet induction heating equipment case

Steel Billet Induction Heating Furnace
