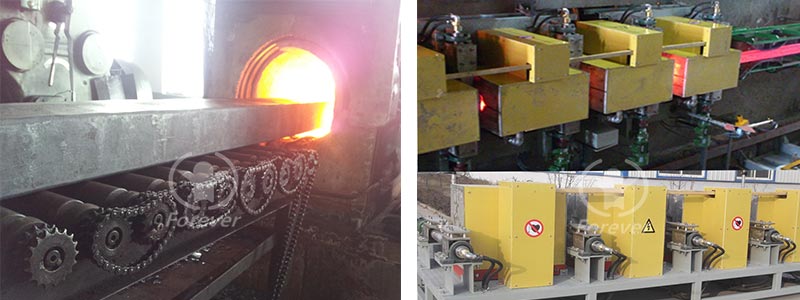

Continuous casting billet heating and reheating equipment

Forever Electromechanical is a comprehensive enterprise that integrates research and development, production and operation, and technical services of induction heating equipment. With rich experience in manufacturing secondary heating equipment for steel billets, the quality is stable and reliable. We are dedicated to providing you with fast and thoughtful one-stop services for the installation, commissioning, warranty, and training of steel billet heating equipment. We sincerely welcome people from home and abroad to call us for negotiation.

Inquire Now Next Product

Product Details

Equipment power

1000KW-12000KW

[Device Frequency]

500HZ-1200Hz

Production capacity: 40-300t/h

[Workpiece size]: 120mm-160mm square billet, length 3000mm-12000mm

【 [Applicable workpieces]: Steel billets, square billets, square steels

Energy Conversion: Depending on the surface temperature of the steel billet, the power consumption per ton of steel is 40-60 degrees.

Continuous casting billet heating and reheating equipment

Advantages and characteristics

Advantages and characteristics of secondary heating equipment for steel billets:

1. Medium frequency induction heating power supply: reliable, energy-saving, and high-efficiency.

2. Induction steel billet heater: The furnace body is sealed at both ends with purple copper plates, and the bottom plate is made of high-strength aluminum alloy.

3. Connecting cable: Connect the capacitor cabinet to the power supply.

Continuous casting billet heating and reheating equipment

4. Steel billet heating furnace capacitor: enclosed stainless steel water pipe.

5. Control box: Siemens PLC can automatically control the temperature of the steel billet. When the induction heater of the steel billet is working without load, the system will reduce to the minimum power. When the steel billet enters the induction heater, the power of the secondary heating equipment of the steel billet will increase to the maximum. Strong work ability can greatly reduce power consumption.

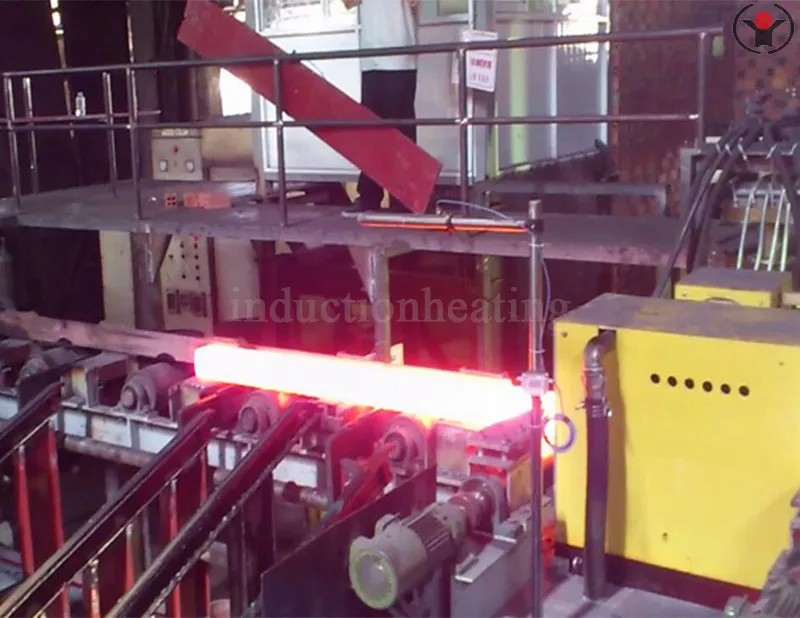

7. Infrared thermometer: Non contact infrared thermometer can measure the temperature of steel billets at the outlet, resulting in more uniform heating.

8. Safe and reliable. A perfect protection system that is very safe for operators. Automatically protect water temperature, water pressure, overcurrent, and undervoltage.

6. High reliability: Using branded components to reduce failure rates and ensure reliable operation of the secondary heating equipment for steel billets. The continuous innovation of the secondary heating furnace for steel billets, coupled with detailed process management of production standards, is a reliable guarantee of product quality. Provide users with reliable construction plans and rational suggestions for medium frequency induction heating equipment to meet their special quality requirements.

after service

After sales service for secondary heating equipment for steel billets: 1. Once you purchase our secondary heating equipment for steel billets, one technician and one salesperson will serve you and keep records of the condition of the secondary heating equipment for steel billets.

2. With the use of the secondary heating equipment for steel billets, we will send a free spare parts list.

3. We will provide complete technical documents for your reference.

4. After we complete your order, we will invite you to participate in the operational testing of our factory. We will only ship if there are no issues. When you receive our secondary heating equipment for steel billets, our engineers will go to your factory to install and adjust the small billet heating and reheating furnace. In addition, we will also teach your workers how to operate it. 5. The secondary heating equipment for steel billets comes with a one-year warranty, long-term technical service, and spare parts support.

Continuous casting billet heating and reheating equipment
