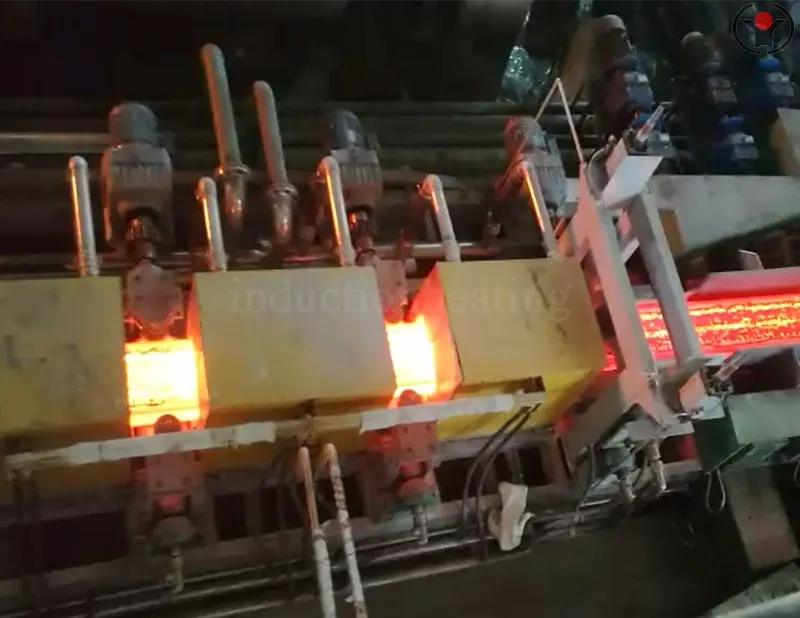

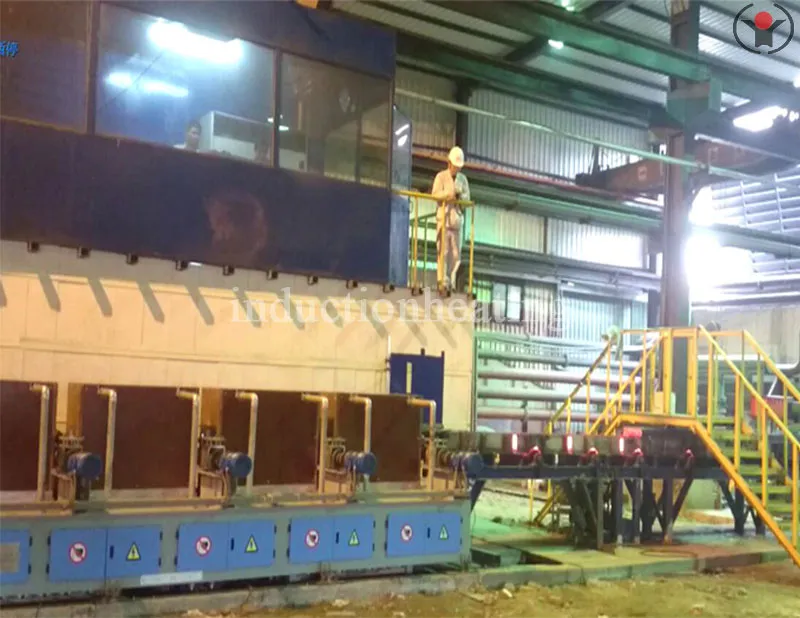

Large billet induction heating furnace

[Equipment power] 1000KW-1200KW

[Device frequency] 500HZ-1200Hz

[Production capacity] 40-300t/h

[Workpiece size]: 120mm-160mm square billet, length 3000mm-12000mm

[Applicable workpieces]: steel billet, square billet, square steel

[Energy Conversion]: Depending on the surface temperature of the steel billet, the power consumption per ton of steel is 40-60 degrees

Forever Electromechanical is a comprehensive enterprise that integrates research and development, production and operation, and technical services of induction heating equipment. With rich experience in manufacturing large billet induction heating furnace, the quality is stable and reliable. We are dedicated to providing you with fast and thoughtful one-stop services for the installation, commissioning, warranty, and training of steel billet heating equipment. We warmly welcome people from home and abroad to call us for negotiations.

1. Medium frequency induction heating power supply: reliable, energy-saving, and high-efficiency.

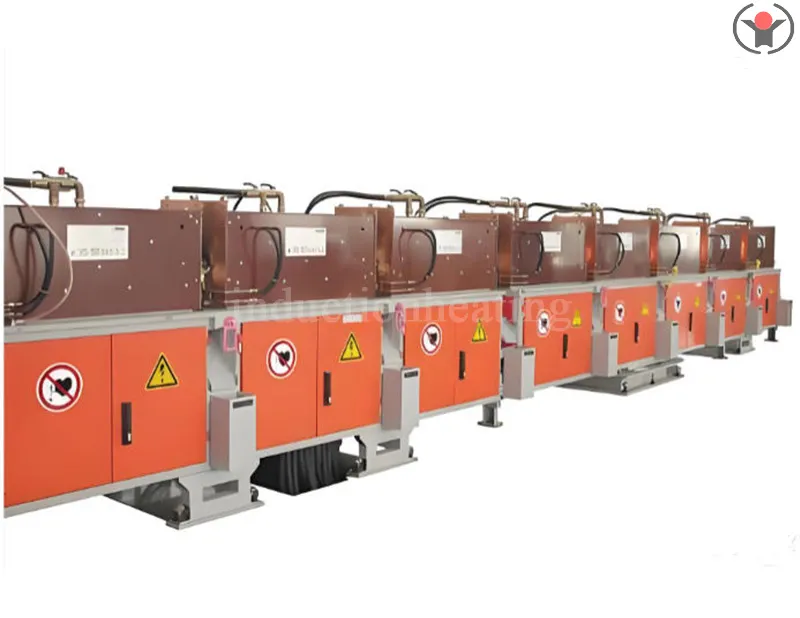

2. Induction steel billet heater: The furnace body is sealed with purple copper plates at both ends, and the bottom plate is made of high-strength aluminum alloy.

3. Connecting cable: Connect the capacitor cabinet to the power supply.

4. Steel billet heating furnace capacitor: enclosed stainless steel water pipe.

5. Control box: Siemens PLC can automatically control the temperature of steel billets.

6. When the steel billet induction heater is operating without load, the system will reduce to its minimum power. When the steel billet enters the induction heater, the power of the steel billet induction reheating furnace will increase to its maximum. Strong work ability can greatly reduce power consumption.

7. Infrared thermometer: Non contact infrared thermometer can measure the temperature of steel billets at the outlet, resulting in more uniform heating.

8. Safe and reliable. A perfect protection system that is very safe for operators. Automatically protect water temperature, water pressure, overcurrent, and undervoltage.

6. High reliability: Using branded components to reduce failure rates and ensure reliable operation of the secondary heating equipment for steel billets.

Continuous innovation and strict detailed process management in the steel billet induction reheating furnace are reliable guarantees for product quality. Provide users with reliable construction plans and rational suggestions for medium frequency induction heating equipment to meet their special quality requirements.
