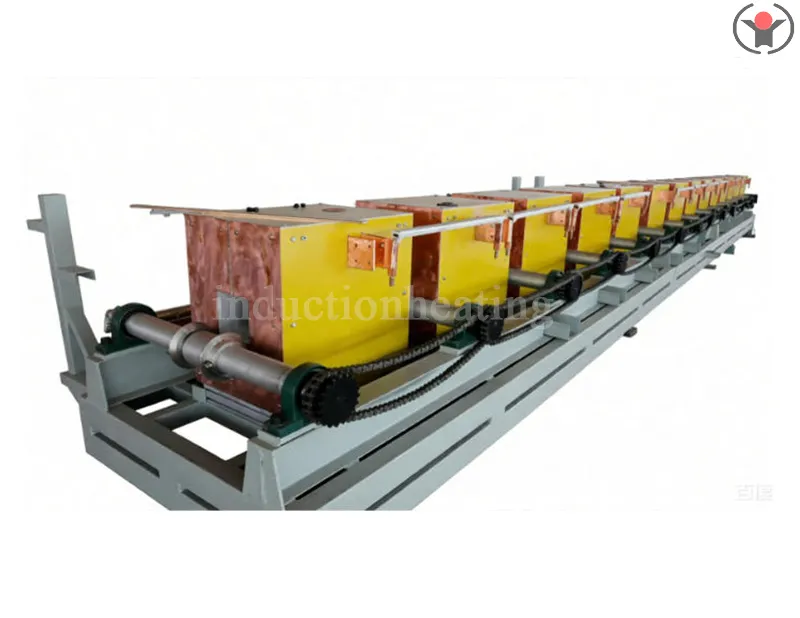

Square billet induction heating equipment

Inquire Now Next Product

Main technical parameters

Main technical parameters of billet heating equipment:

·Applicable workpieces: Suitable for medium frequency induction heating of square billets, square steels, steel billets, continuous casting billets, slabs, etc.

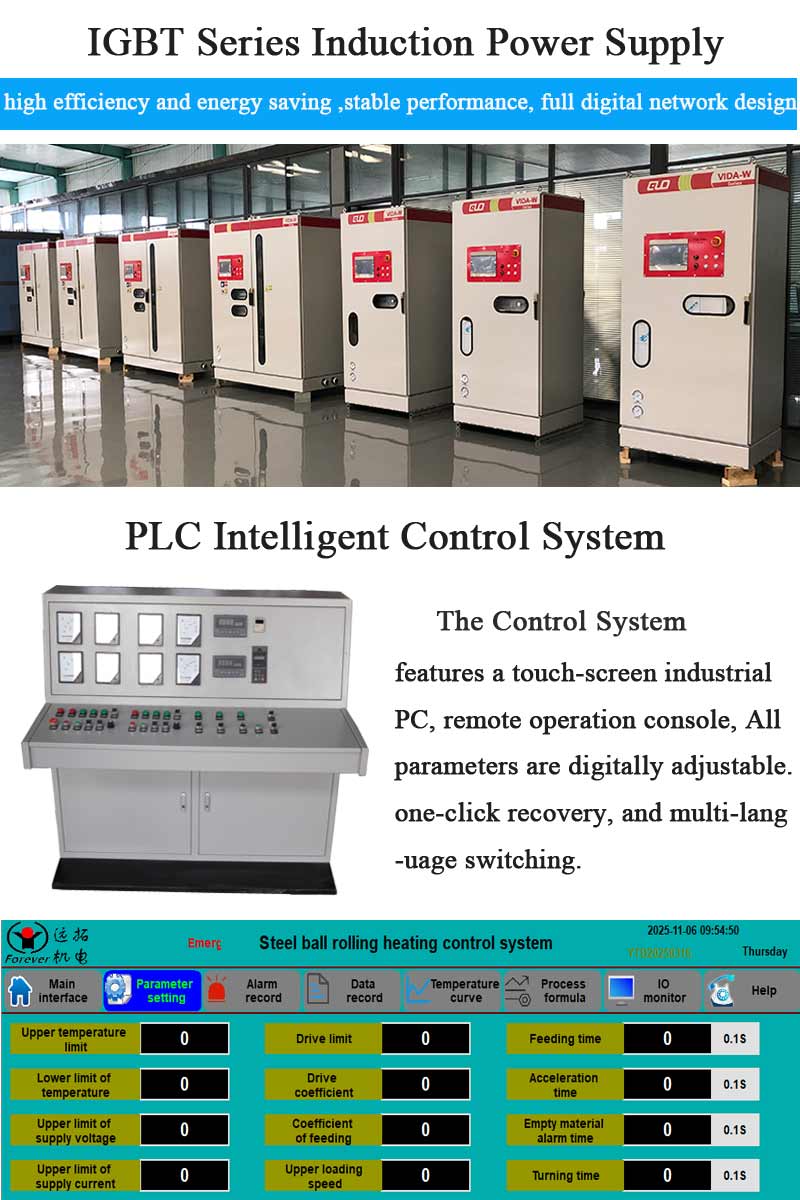

Power supply system: Dual rectifier 12 pulse or 24 pulse 1000-12000KW/500-1200Hz, single power supply can be used independently or multiple power supplies can be used in parallel; The hourly output is 40-300 tons.

·Scope of application: 120mm~160mm square billet, length 3000mm~12000mm.

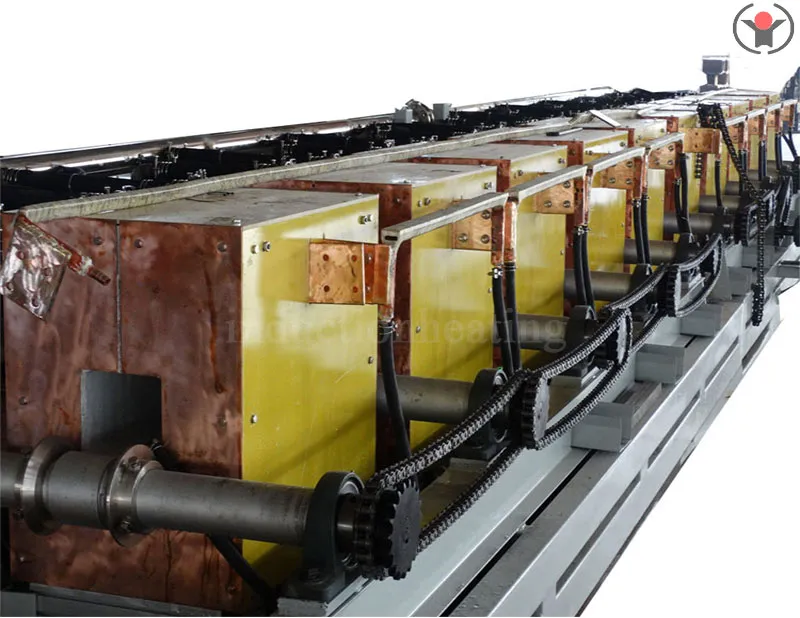

·Feeding system: Each axis is driven by an independent motor reducer, with multiple axis drives set up and controlled by a single frequency converter to synchronize the operation of multiple axes.

·Guidance system: using 304 non-magnetic stainless steel guide wheels, and maintaining moderate elasticity in the axial direction of the guide wheels to adapt to the allowable bending range of the billet. Temperature closed-loop system: A closed-loop control system consisting of a Leitai infrared thermometer and a Siemens S7, which automatically adjusts the power supply according to the initial temperature and feed rate of the billet entering the sensor, so that the heating temperature remains constant before it is discharged from the furnace.

Energy conversion: Depending on the surface temperature of the billet, the power consumption per ton of steel is 40-60 degrees.

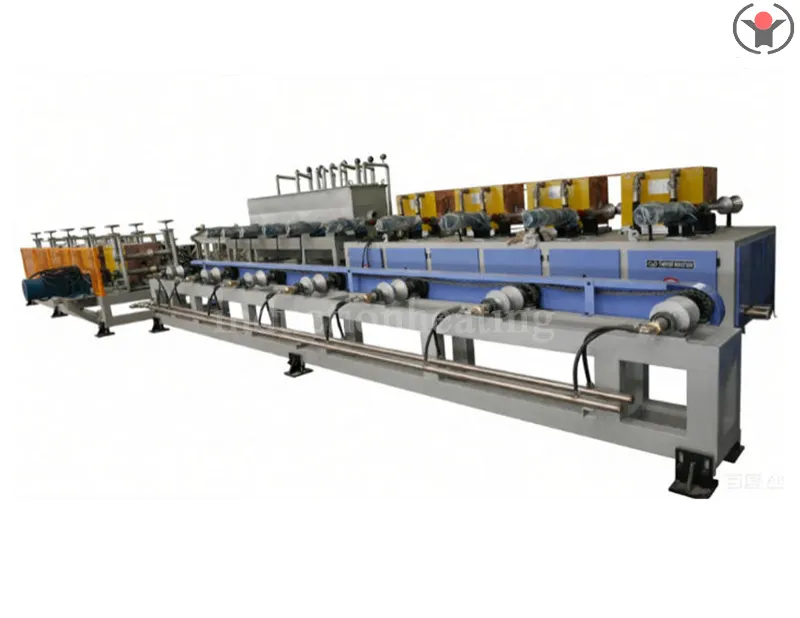

Square billet induction heating equipment

Advantages and characteristics

Advantages and characteristics of billet heating equipment:

Efficiency: The Forever billet heating equipment adopts electric heating, which heats up quickly and has high efficiency; 2. Mature technology: Forever has been engaged in the billet induction heating industry for more than ten years, designing and producing billet induction heating electric furnaces for many large steel enterprises; 3. The square billet electric heating furnace does not require preheating during billet processing, reducing customer start-up time; 4. The Forever billet electric heating equipment adopts PLC intelligent control technology, with high precision in power and temperature control; 5. Both cables and capacitors have good protective performance and long service life.
