Forever Electromechanical Induction Heating Equipment has been focusing on the industry for over 22 years. Tailored suitable steel billet heating and reheating equipment according to user needs, the equipment adopts a human-machine interface touch screen PLC fully automatic intelligent control system
Unified, easy to operate, high production efficiency, stable performance. The input and output system is made of 304 non-magnetic stainless steel welded together, which is wear-resistant and has a long service life
Product Details
Equipment power
1000KW-12000KW
[Device Frequency]
Production capacity: 40-300t/h
500HZ-1200Hz
Workpiece size: 120mm-160mm square billet, length 3000mm-12000mm
Applicable workpieces: steel billet, square billet, square steel
Energy Conversion: Depending on the surface temperature of the steel billet, the power consumption per ton of steel is 40-60 degrees.
Reasons for choosing us
PLC fully automatic intelligent control of the entire steel billet induction heating process, Forever steel billet heating and compensation equipment is safe, environmentally friendly, and energy-saving. One click operation makes the operation easier and the product quality is trustworthy. By choosing steel billet induction heating equipment, you can enjoy superior prices for small billet heating and reheating furnaces, as we are a direct manufacturer.
configuration
Steel billet induction heating equipment configuration:
1. 12 pulse medium frequency induction heating power cabinet
2. Medium frequency capacitor cabinet

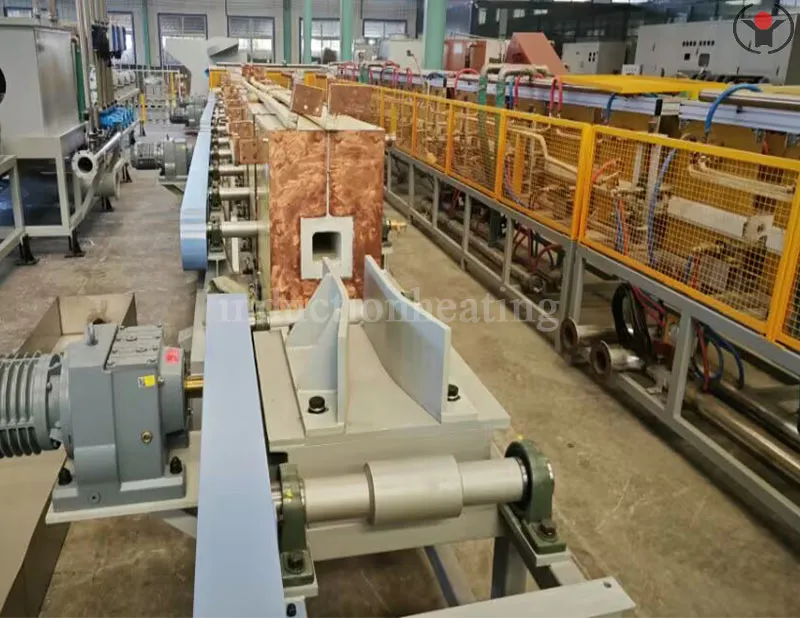

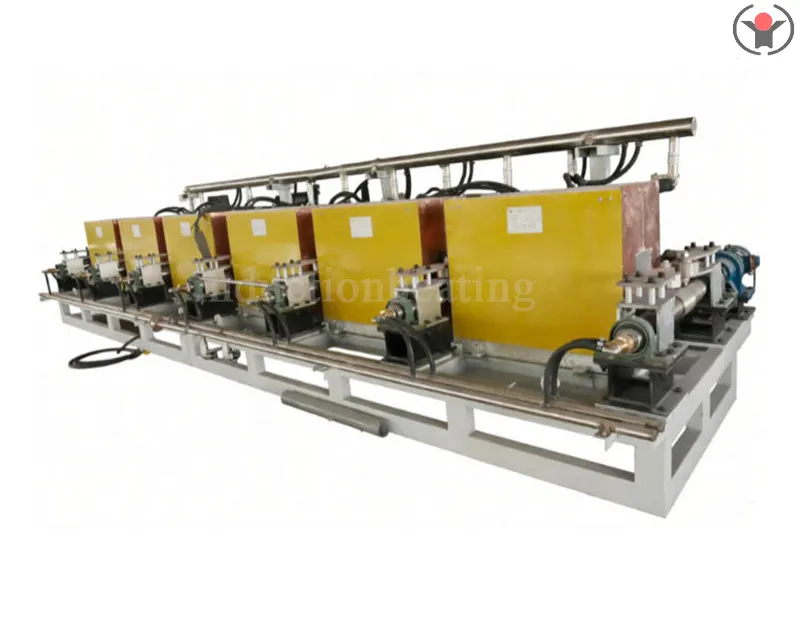

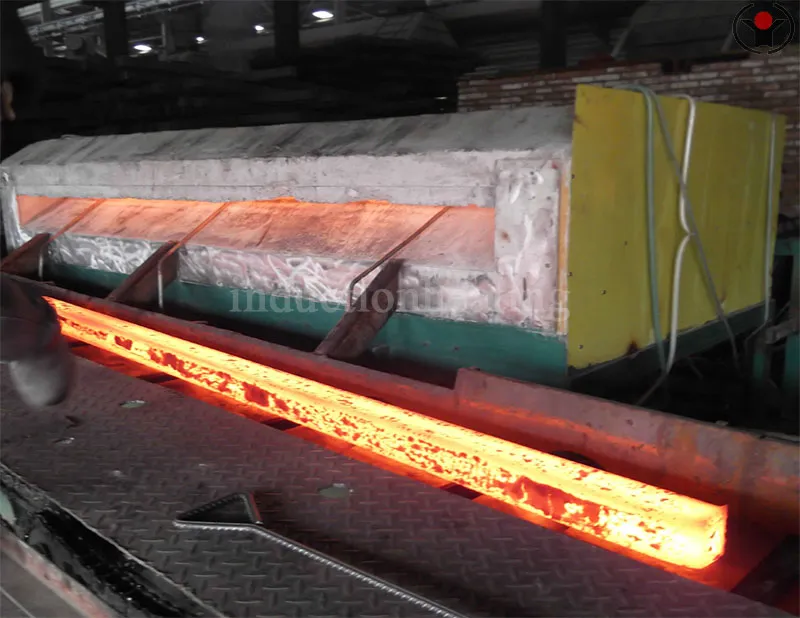

3. Induction steel billet heater
4. Connection line from induction heater to intermediate frequency power cabinet

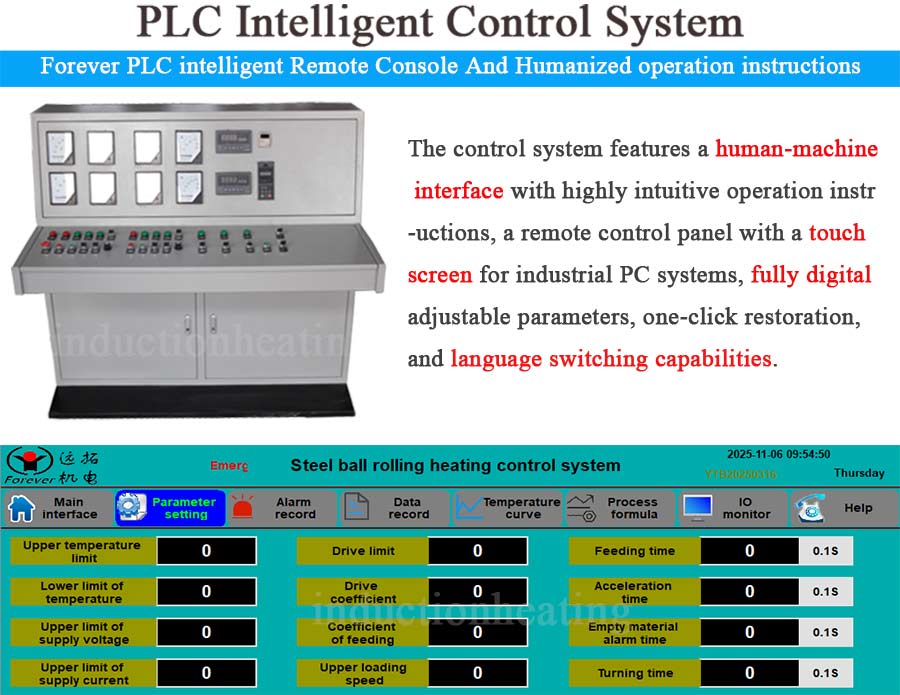

5. Console, including variable frequency speed regulation, PLC， Touch screen, temperature controller, etc
6. Two color American Raytheon infrared thermometer.
7. High voltage distribution cabinet.
8. Feeding device, including independent motor, reducer, roller, etc.
Characteristics
Characteristics of induction heating equipment for steel billets:
·The T2 copper tube of the induction heating equipment for steel billets uses oxygen free copper winding.
The wall thickness of the furnace is greater than or equal to 2.5 chamber meters.
The material used to maintain temperature in the furnace has good characteristics, high strength, high temperature resistance, and long service life.
·It can reduce magnetic leakage and improve the service life of the steel billet heating furnace.
The lining of the furnace is made of high-strength aluminum alloy, which can reduce magnetic leakage.
