Steel rod induction hardening production line

Power supply system: 160-1000KW/0.5-2.5KHz, hourly output of 0.5-3 tons, applicable range o15-0150; Energy conversion: using quenching method, with a power consumption of 260-280 kWh per ton; ·Main application: Suitable for quenching heat treatment of steel bars, low-carbon alloy steels, round steels, bar materials, etc; ·Spray system: It adopts multi-stage spray cooling, and the pressure and flow rate between each level of spray ring can be adjusted to meet the requirements of different hardenability.

Inquire Now Next Product

Product Details

Main technical parameters of steel bar quenching production line:

·Main application: Suitable for quenching heat treatment of steel bars, low-carbon alloy steels, round steels, bar materials, etc;

·Power supply system: 160-1000KW/0.5-2.5KHz, hourly output of 0.5-3 tons, applicable range o15-0150; Conveyor roller conveyor: The axis of the roller conveyor forms an angle of 18-21 with the axis of the workpiece. The workpiece rotates while moving at a constant speed, making heating more uniform. The roller conveyor between the furnace bodies is made of 304 non-magnetic stainless steel and water-cooled;

Roller grouping: The feeding group, sensor group, and discharge group are independently controlled, which is conducive to continuous heating without creating gaps between workpieces; Spray system: adopts multi-stage spray cooling, and the pressure and flow rate between each level of spray ring can be adjusted to meet the requirements of different hardenability;

Temperature closed-loop control: Quenching uses a Leitai infrared thermometer and forms a closed-loop control system with Siemens S7, with high temperature control accuracy; ·Industrial control computer system: Real time display of the status of working parameters, workpiece parameter memory, storage, printing, fault display, alarm and other functions; Energy conversion: using quenching method, with a power consumption of 260-280 kWh per ton.

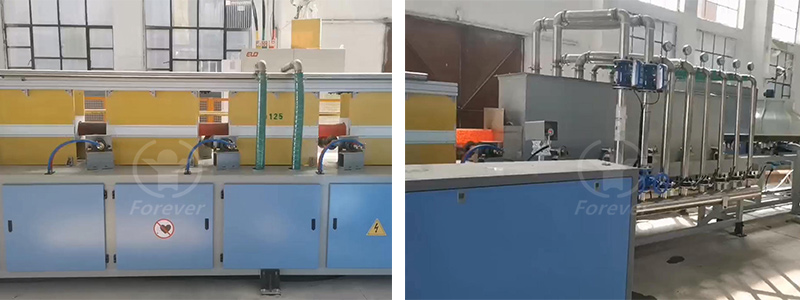

Steel rod induction hardening production line

Advantages and characteristics

Advantages and characteristics of steel bar quenching production line:

·Good straightness

The Forever steel rod induction heating and quenching production line is adopted, and the straightening function is designed during the heat treatment process. The steel rod can achieve good straightness after quenching; Uniform heating temperature, high temperature control accuracy, small temperature difference, and no pollution

Forever series variable frequency power supply is easy to directly and accurately detect changes in load current, thereby achieving closed-loop control of output power. The product has high precision in heating temperature control and small temperature difference between the core and the surface. There will be no harmful gases, smoke, or other environmental pollutants during the production process.

High degree of mechanization and automation

The high degree of intelligence in power supply, temperature adjustment, frequency conversion automatic tracking, variable load adaptive, power automatic adjustment and other intelligent advantages enable "one click" operation, truly realizing automated and intelligent induction heating.

·Temperature closed-loop, intelligent, PLC overall operation control system

Infrared thermometer measures the heating temperature of the billet at the outlet of the induction heating furnace, monitoring for overheating or incomplete heating. To control the temperature of the billet within the target range. Reduced the generation of non-conforming products and ensured consistency in product quality.

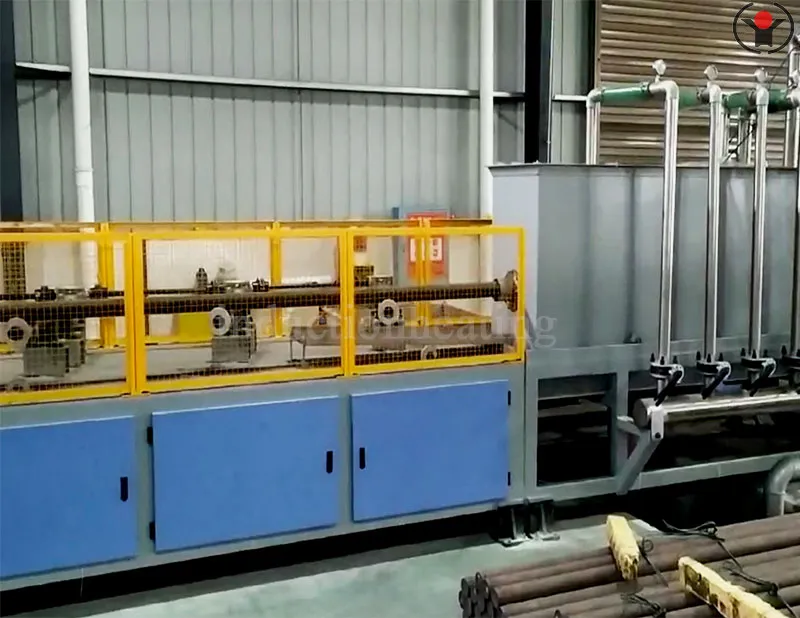

Steel rod induction hardening production line
