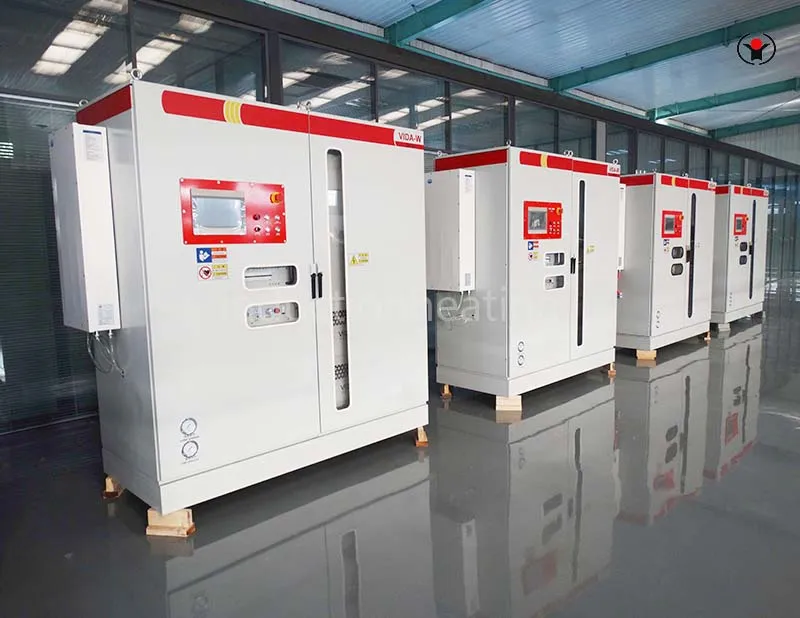

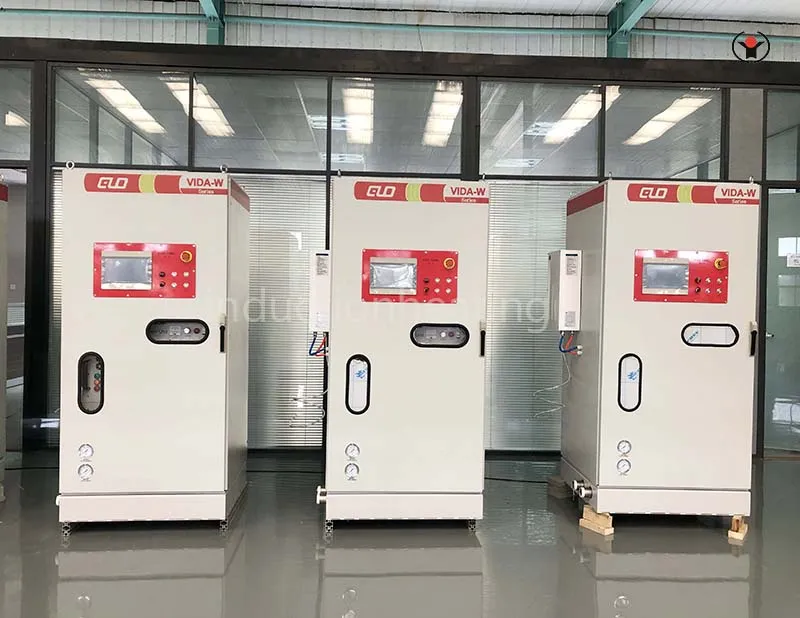

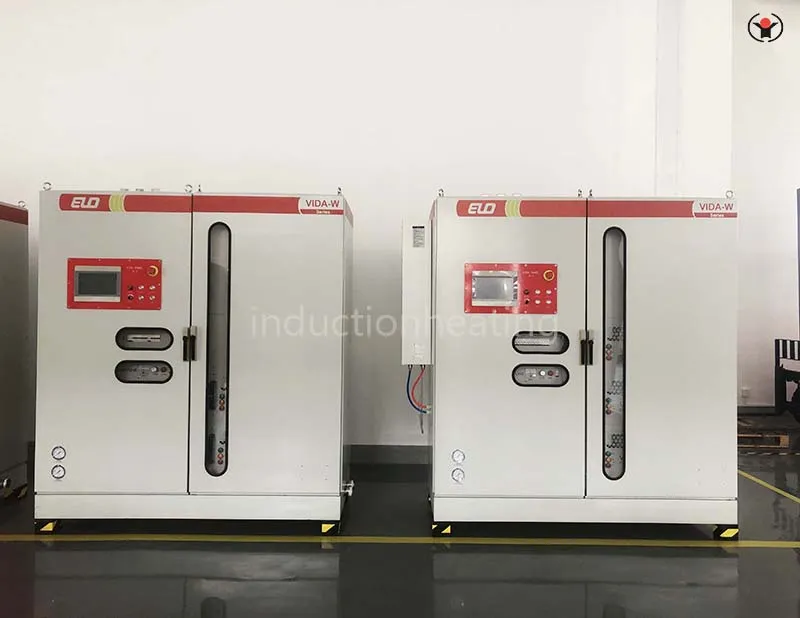

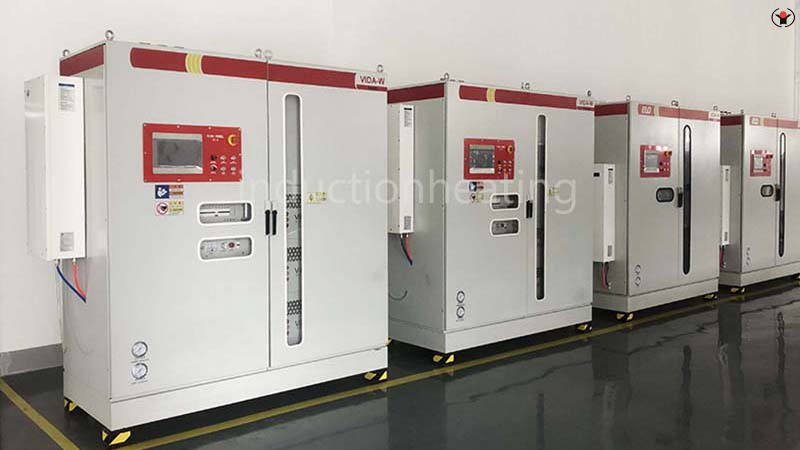

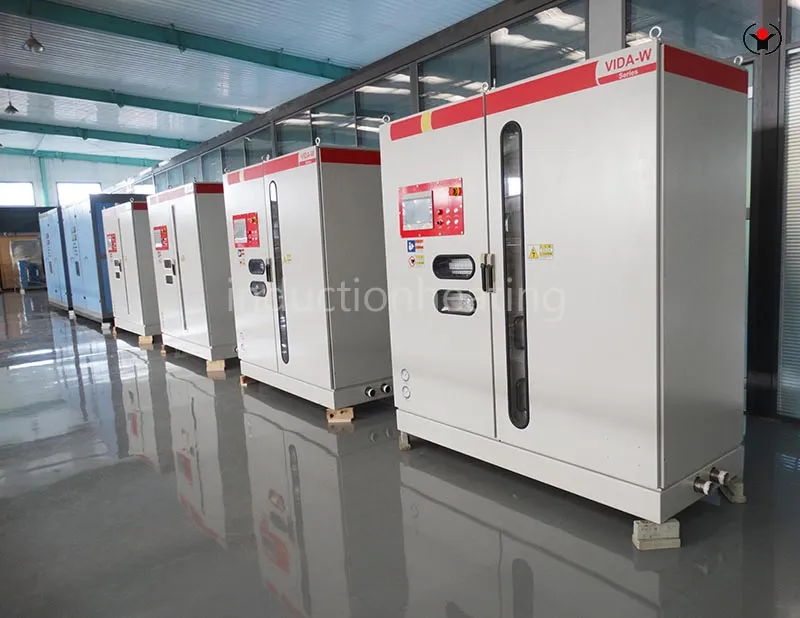

Intermediate frequency heating power supply

The intermediate frequency heating power supply is divided into two types: series and parallel. It should be equipped reasonably when matched with equipment according to its different needs. The SCR fully automatic intelligent series resonant intermediate frequency power supply has the following characteristics:

Series resonant design, fully open rectification, high power factor, and small harmonic components. The power supply and induction furnace are always reliably matched, with full power output. Low shutdown loss, small reactive power component, low slot loss, and 5% -20% savings compared to traditional parallel inverter power supplies.

Single machine dual frequency or multi frequency output, low-frequency preheating, high-frequency heating; Energy saving technology. Heating to 1150 ° C consumes 310 kWh per ton.

T2 copper bars are used inside the cabinet, which have been sandblasted and passivated; Low leakage inductance, anti-oxidation, effectively reducing line losses.

Full touch screen control, pure digital tuning, with complete process records and strict level permissions. The main parameters can be restored to factory settings with just one click.

The power supply has a single unit power of 50-3000KW and a frequency of 200-16000Hz.

In terms of design, the Forever electromechanical induction heating power supply is designed to be very energy-efficient and environmentally friendly. Using Forever electromechanical SCR fully automatic series intermediate frequency power supply consumes less power and has lower losses. Compared to other heating methods such as coal, natural gas, etc., it has a significant energy-saving effect. And it has no open flame, non-contact heating method, and will not produce any physical pollution.

If you are also interested in this machine,please don't hesitate to contact us:

Overseas manager: Tom Wang

Email:tom@foreverfurnace.com

Phone/Wechat/Whatsapp:+86 13303078975
