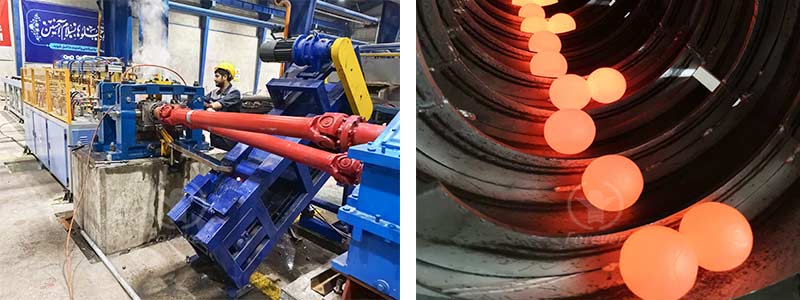

Customized Hot Rolling Steel Ball Heating Furnace

With the rapid upgrading of the steel ball manufacturing industry, downstream markets including mining, cement, machinery and new energy equipment have put forward increasingly differentiated requirements for steel ball specifications, material properties and production processes. Traditional hot rolling steel ball heating furnaces feature fixed parameters, single applicability and poor adaptability to multi-variety and small-batch production, which greatly restricts manufacturers’ flexible production capacity and market response speed. Focusing on industry pain points, Forever Mechanical has independently developed a new-generation flexible customized hot hot rolling steel ball heating furnace breaking the limitations of conventional fixed-mode equipment and bringing highly adaptable, efficient and intelligent heating solutions to the global steel ball processing industry.

Different from standardized heating equipment with rigid operation logic, Forever Mechanical’s steel ball rolling heating machine takes full-scenario flexible customization as its core advantage. The equipment supports personalized customization covering raw material specifications, heating processes, production capacity and on-site layout. It can perfectly adapt to multiple steel materials such as 45# steel, 60Mn, 65Mn and 40Cr alloy steel, and stably process steel ball blanks with diameters ranging from 20mm to 120mm. Whether for large-batch standardized production or small-batch customized processing of special-specification steel balls, the furnace can complete rapid parameter switching without repeated equipment modification, effectively solving the industry’s dilemma of “one equipment for single use”.

In terms of technological optimization, the furnace adopts advanced medium-frequency induction heating technology and modular structural design. The segmented adjustable heating unit supports dynamic temperature calibration according to material characteristics and rolling process requirements, achieving a heating temperature accuracy of ±1°C. It ensures uniform heating of steel ball blanks, effectively avoiding quality defects such as uneven hardness and internal stress concentration caused by inconsistent heating, and greatly improving the roundness, surface finish and mechanical stability of finished hot-rolled steel balls. Meanwhile, the modular structure realizes quick disassembly, replacement and upgrade of core components, shortening equipment adjustment time by more than 60% and significantly improving production line turnover efficiency.

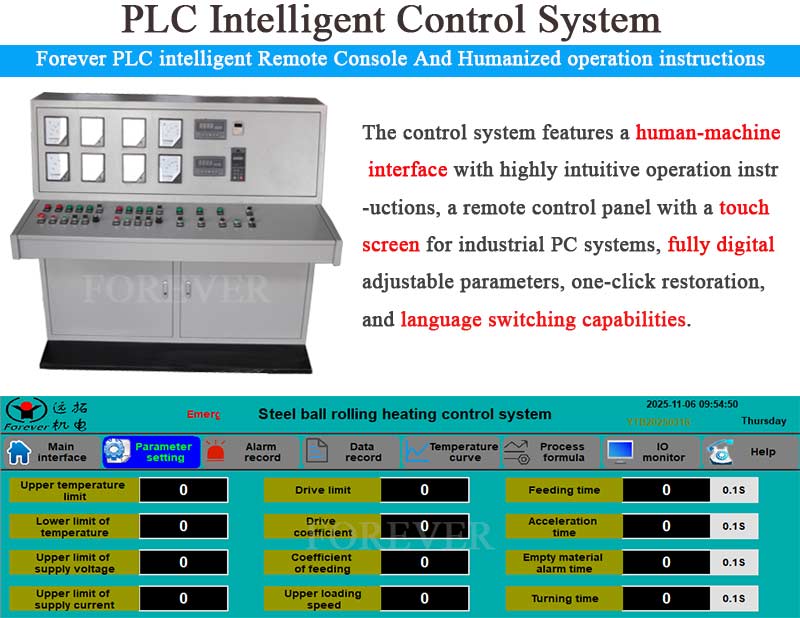

To meet the personalized layout demands of different manufacturers, Forever Mechanical provides all-round customized services including on-site space adaptation, automated line matching and remote intelligent monitoring. The professional technical team can tailor exclusive process schemes according to customers’ production scale, product positioning and future expansion plans, delivering turnkey solutions from design, manufacturing and installation to after-sales commissioning.
