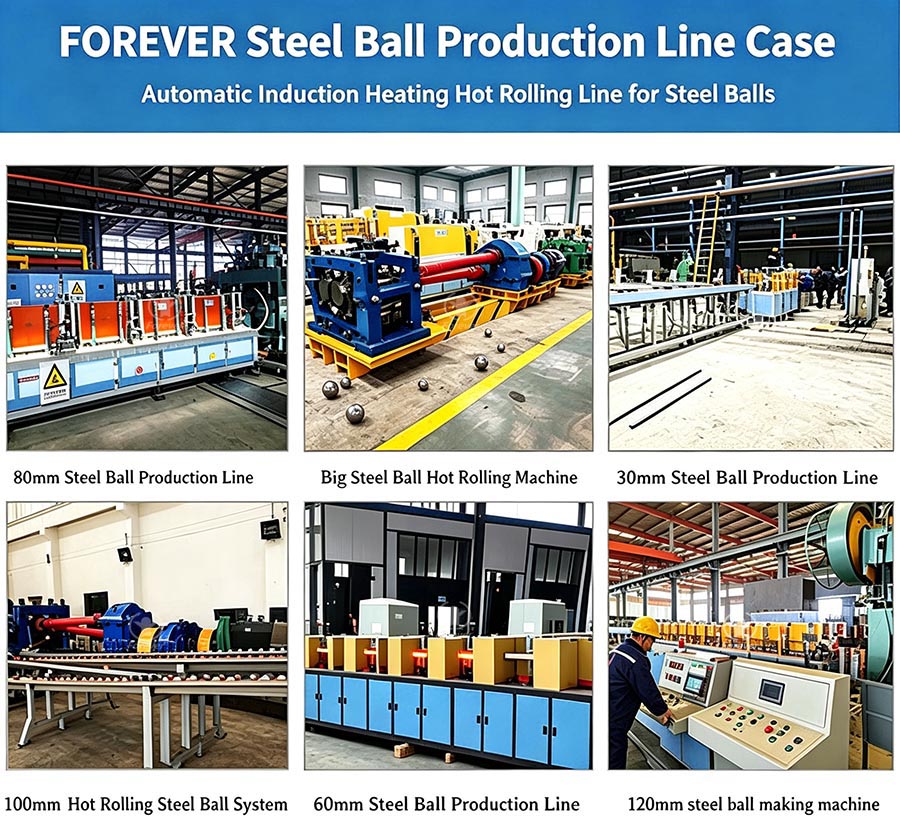

Forged Steel Grinding Ball Production Line

Introduction

Forged steel grinding balls are core wear-resistant media widely used in mining ball mills, cement plants and mineral processing industries. The hardness, impact toughness and wear resistance of finished balls directly determine grinding efficiency and consumption cost of milling systems. Traditional production modes often adopt scattered heating, manual forging and irregular heat treatment, which easily lead to unstable metallographic structure, inconsistent hardness and high breakage rate during operation. Forever Electromechanical’s integrated induction heating production line for forged steel grinding balls realizes continuous feeding, uniform preheating, controlled forging temperature and follow-up tempering treatment in one line. It solves many long-standing production bottlenecks for grinding ball manufacturers and provides a clean, automatic and stable thermal processing scheme for forged ball manufacturing.

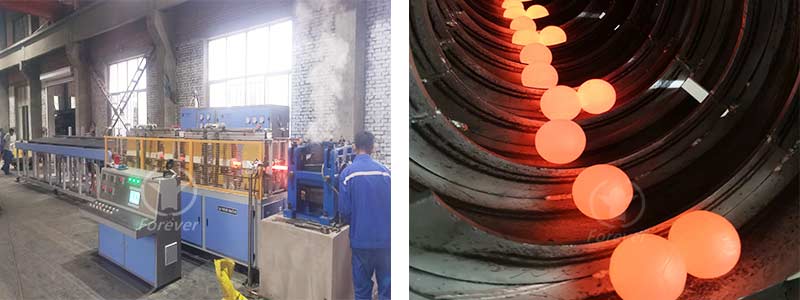

Forged steel grinding ball production line

Main Industry Difficulties in Forged Steel Grinding Ball Manufacturing

Unstable Heating Temperature and Uneven Internal Structure

Many small and medium grinding ball factories still use flame furnaces for blank heating. Flame heating causes large temperature differences between the surface and core of steel blanks. Partial overheating will lead to coarse grains, while insufficient heating results in difficult forming during forging. After forging, the balls have scattered hardness values, and cracks appear under repeated impact inside the ball mill, raising the ball breakage rate. Temperature fluctuation also makes product quality hard to meet uniform standard requirements for large orders.

Heavy Oxide Scale and Low Material Yield

Open flame heating makes the steel blank contact with high-temperature air for a long time. A large amount of oxide scale forms and peels off during forging. Metal loss not only reduces finished product yield, but also brings scale dust pollution on site. For enterprises with large daily output, cumulative material loss forms a considerable invisible cost, squeezing profit space severely.

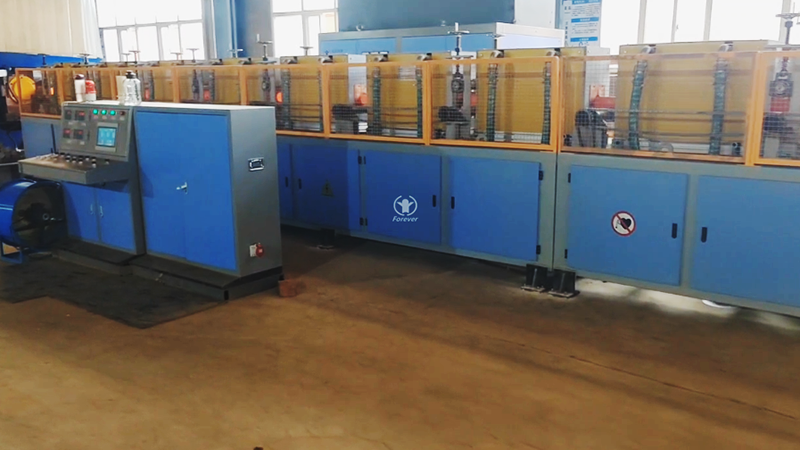

grinding ball production line

Low Automation and Dependence on Skilled Workers

Old heating lines lack matched automatic feeding and temperature feedback systems. Workers judge heating time and temperature by experience. Production rhythm cannot be adjusted synchronously with forging presses. When shifting operators or changing ball specifications, quality fluctuation is prominent. It is difficult to achieve standardized and repeatable mass production.

High Energy Consumption and Environmental Compliance Pressure

Gas-fired heating has low energy conversion efficiency. A great deal of heat is discharged through flue gas. Continuous production consumes massive fuel, while flue gas, nitrogen oxides and dust emissions bring environmental assessment pressure. In many regions, outdated flame furnaces face rectification and elimination requirements, forcing grinding ball producers to upgrade heating equipment.

Inconvenient Parameter Switching for Multi-Specification Production

Manufacturers usually need to produce forged balls of different diameters for different mines. Traditional furnaces require long time to stabilize temperature after changing specifications. Slow recipe switching reduces production flexibility and cannot adapt to current multi-batch, diversified order demands.

Forever Electromechanical Integrated Induction Heating Production Line Solution

Modular IGBT Induction Heating with Zoned Temperature Control

Forever grinding media production line adopts IGBT medium-frequency induction power modules and multi-stage segmented heating layout. The system heats round steel blanks from inside out. Temperature rise is stable and controllable, which ensures consistent core and surface temperature before forging. It effectively avoids overheating burning or underheating, improves forging forming performance and stabilizes the internal metallographic structure of finished grinding balls.

Closed-Loop Infrared Temperature Monitoring and Automatic Feeding

Equipped with real-time infrared temperature sensors, the line forms closed-loop power adjustment. The conveying speed and heating power automatically match according to blank temperature. Operators can quickly call preset parameters for different ball diameters. The whole process realizes continuous automatic feeding, reducing manual intervention and avoiding quality difference caused by human judgment error.

Short Heating Time, Less Oxidation and Higher Yield

Induction heating heats rapidly without open flame. The heating cycle is greatly shortened, which suppresses the oxidation reaction of steel blanks. Oxide scale loss is significantly reduced, improving metal yield. The equipment supports instant startup and shutdown, eliminating long preheating and standby heat loss, bringing obvious energy-saving effects compared with gas furnaces.

Clean Operation and Easy Connection with Forging Equipment

This grinding ball heat treatment line has no combustion system or flue gas discharge. The working site is cleaner and meets environmental protection requirements. The compact layout is convenient to dock with existing forging presses and tempering devices. The protection modules of overcurrent, over-temperature and water shortage ensure safe long-time continuous operation. Regular maintenance is simple, and the downtime rate is effectively controlled.

Conclusion

With the mining industry pursuing low consumption and high-efficiency grinding media, forged grinding ball manufacturing is transforming toward automation, energy saving and stable quality. Forever Electromechanical’s induction heating production line targets the pain points of traditional flame heating. By virtue of precise temperature control, low oxidation, flexible parameter switching and clean production features, it helps grinding ball manufacturers reduce breakage rate, raise yield and cut energy cost. It becomes a reliable thermal processing upgrade choice for forged steel grinding ball production enterprises.
