Integrated Steel Ball Production Line with Heat Treatment

Overview

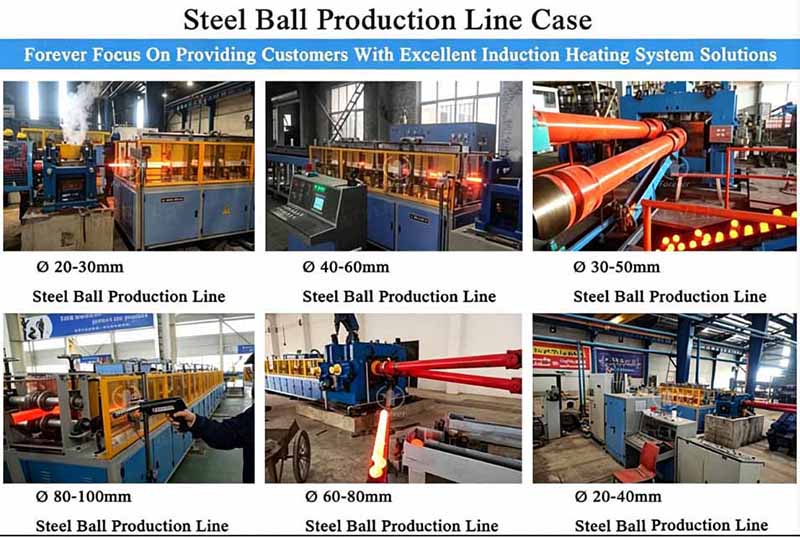

The mining, cement and thermal power industries keep raising standards for grinding media quality, demanding steel balls with stable hardness, high impact resistance and long service life. Forever Electromechanical launches the integrated steel ball production line with full heat treatment function, integrating bar feeding, induction heating, skew rolling forming, quenching, tempering and online quality inspection into one continuous automated system. This all-in-one solution eliminates disconnected separate procedures in traditional workshops, stabilizes metallographic structure and reduces manual intervention. The complete line has been delivered and commissioned for multiple overseas projects in Europe, Russia, Middle East and Southeast Asia, winning wide recognition from wear-resistant material manufacturers.

Full Closed-Loop Workflow from Raw Bar to Finished Steel Ball

Different from fragmented standalone machines, this integrated line realizes seamless material transfer across every stage. Raw steel bars are automatically cut and conveyed into twin parallel induction heating furnaces. The IGBT heating power supply ensures uniform through-heating for billets before skew rolling. After rolling and shaping, hot steel balls directly enter the continuous heat treatment module, completing quenching and low-temperature tempering in sequence. The whole workflow avoids temperature fluctuation caused by repeated material handling. PLC and HMI touch screen synchronously monitor feeding speed, heating temperature, quenching flow and tempering holding time. Operators can save multiple process recipes for different steel grades and ball diameters, from small 20mm balls up to 120mm large grinding balls.

Heat Treatment Module: Core for Consistent Wear Resistance

The built-in heat treatment unit is the key upgrade of this production line. Precise quenching controls cooling speed to form dense martensite structure, while subsequent tempering removes internal quenching stress. This balanced process prevents steel balls from brittle fracture under repeated impact. Hardness can be steadily maintained within HRC55–65 with small deviation batch by batch. Compared with lines without integrated heat treatment, finished products feature better roundness, lower oxidation scale and fewer surface defects. The system adopts real-time infrared temperature tracking, automatically adjusting parameters once temperature drift appears, greatly cutting reject rates and raw material waste.

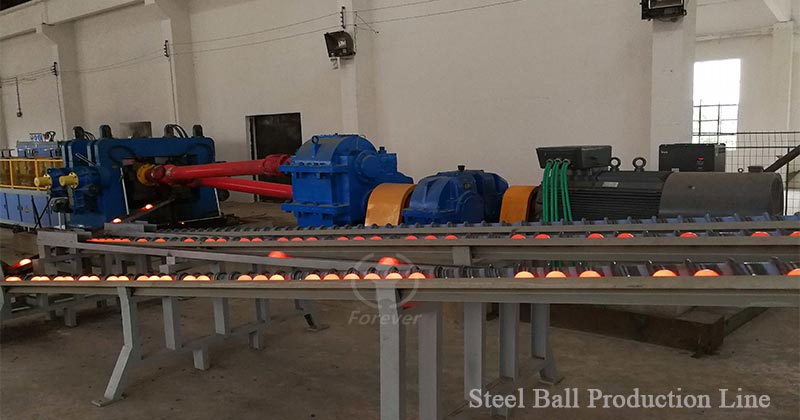

automatic steel ball production line

Energy Saving & Stable Long-Time Continuous Operation

Forever Electromechanical retains high-efficiency induction heating technology for the front-end heating station. High power factor IGBT power units cut power consumption obviously. The steel ball hot rolling induction furnace adopts modular mechanical structure, with independent protection against overcurrent, overvoltage, water shortage and overtemperature. It supports 24-hour non-stop heavy-duty running. Centralized lubrication and easy-to-replace wearing parts simplify daily maintenance and shorten downtime. The compact layout saves workshop floor space and improves site utilization, which brings obvious cost advantages for medium and large-scale steel ball factories.

Customization & Global After-Sales Service

Forever Electromechanical offers flexible customization on production capacity, ball size range and automation level. Customers can select partial modules or the full integrated line according to existing workshop layout. Before shipment, every set undergoes full linkage test inside the factory. The company provides one-stop service including technical proposal, drawing confirmation, container loading, remote guidance and on-site commissioning. Spare parts supply and long-term technical support are available globally.

Market Prospect

As global mineral processing plants pursue lower operating cost and longer grinding media life, integrated steel ball production machine with in-line heat treatment will gradually replace old discrete equipment. Forever Electromechanical will continue optimizing induction heating and heat treatment parameters to improve steel ball performance. The manufacturer welcomes worldwide customers for project discussion, quotation and factory inspection, to build reliable steel ball manufacturing lines together.
