Induction furnace for steel ball hot rolling

Hebei Forever Electromechanical Equipment Manufacturing Co., Ltd. is a professional enterprise that integrates scientific research and production to design and manufacture steel ball heat treatment furnaces. Forever Electromechanical's main product, the steel ball heating heat treatment furnace, achieves excellence in quality and has gained the trust of a large number of users.

Induction furnace for steel ball hot rolling

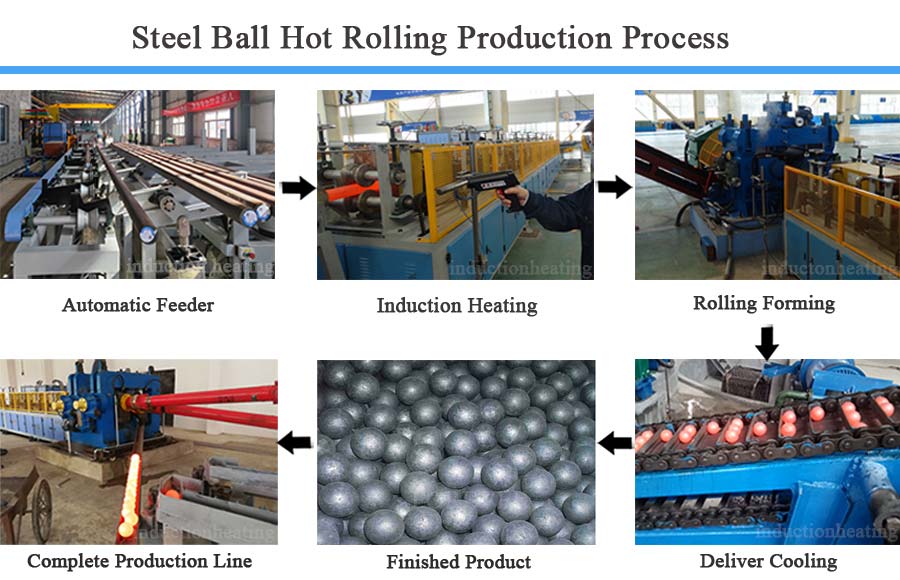

Process flow and description of Induction furnace for steel ball hot rolling

Steel bar inspection: mainly inspecting straightness and surface cracks;

Loading: Generally lifted onto the material rack by a crane, the rod material is pulled into the conveyor roller by an automatic flipping mechanism;

Heating: After setting the heating temperature of the steel ball production line, it is automatically controlled by PLC;

Rolling: The main motor has variable frequency speed regulation to meet the speed requirements of different specifications of steel balls, and is matched with intermediate frequency induction heat treatment equipment;

Conveyor lifting isothermal machine: Conveyor lifting variable frequency speed regulation, adjusting the quenching temperature of steel balls;

Quenching: Variable frequency speed regulation of the inner spiral drum for quenching, adjusting the water outlet temperature of the steel ball after quenching;

Aggregate and cooling enter the offline resistance furnace for tempering treatment (steel balls below 50mm can directly enter the insulation box for residual temperature self tempering)

Cooling: Cool the tempered steel ball to room temperature;

Inspection packaging and storage: After inspection, package and store according to packaging requirements.
