Forging & rolling steel ball production line,forging steel ball furnace,hot rolling steel ball heating line

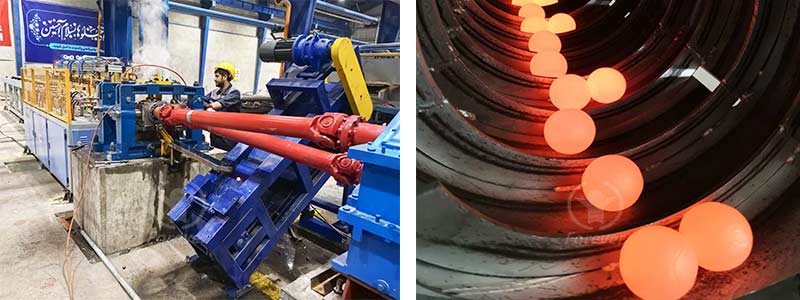

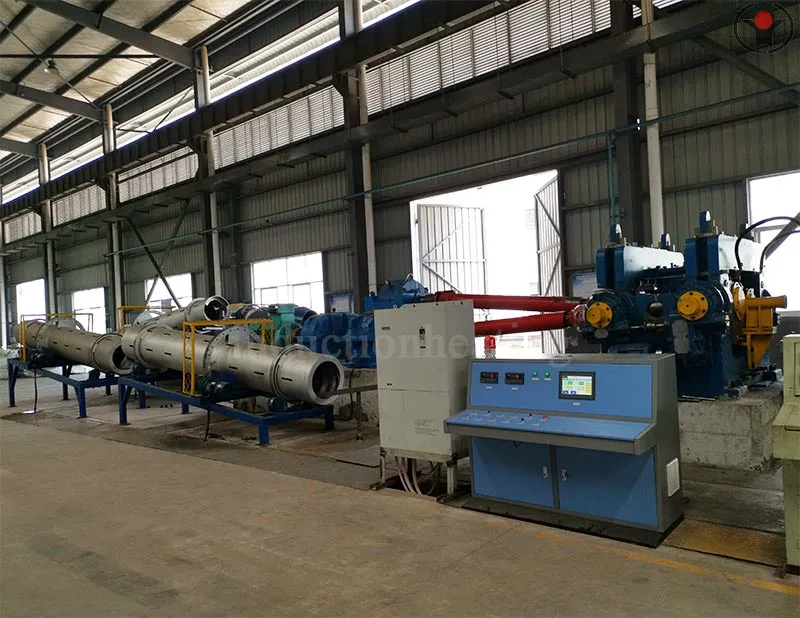

Forging & rolling steel ball production line

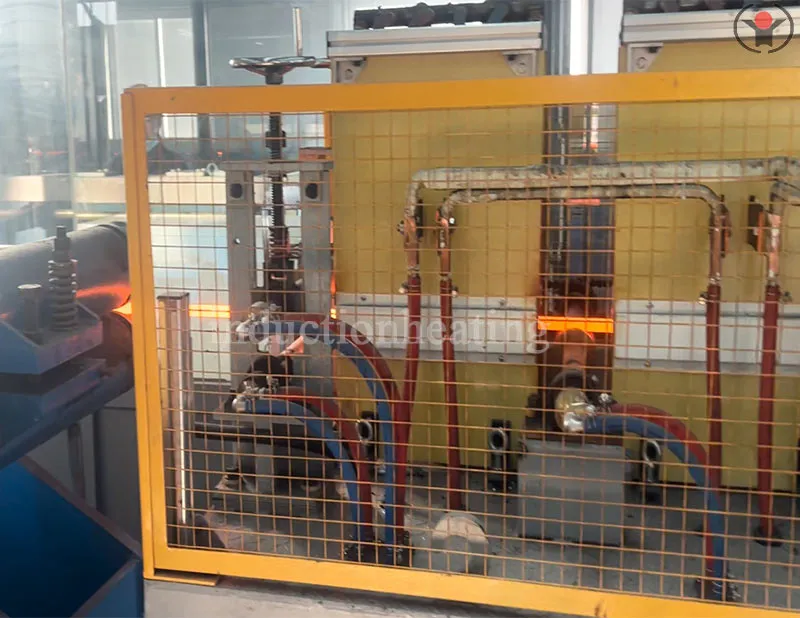

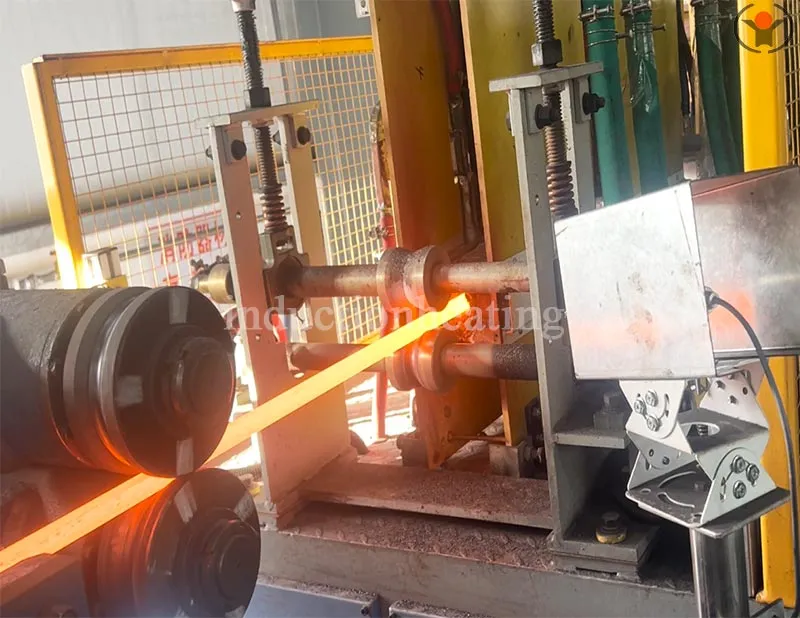

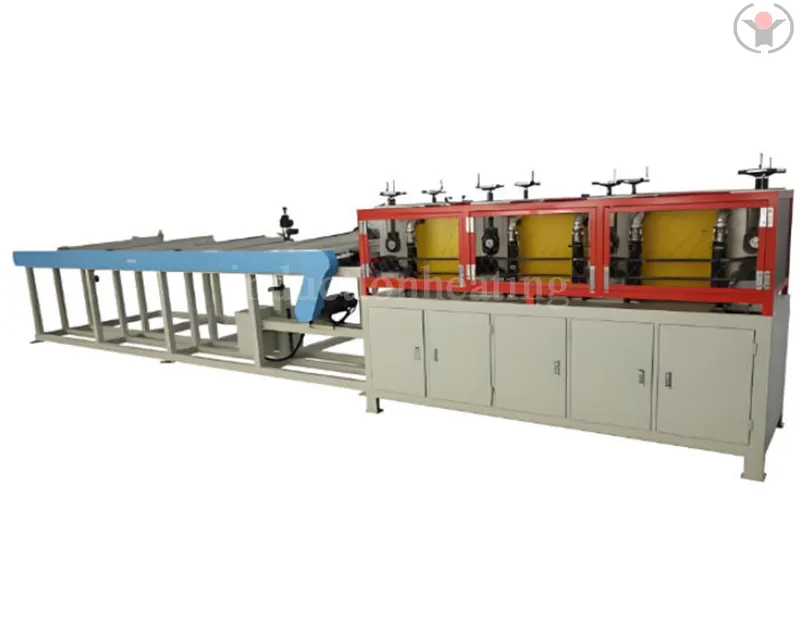

The steel ball rolling heating furnace adopts a new energy-saving air-cooled IGBT induction heating power supply control, which can be used by connecting the power supply. It has low power consumption, professional technology, and provides free consultation on induction heating equipment quotation plan. Forever is a high-tech enterprise specializing in customized steel ball rolling and heating production lines, with over 20 years of professional manufacturing experience

Forging

【Equipment power】KGPS200KW-6000KW or IGBT200KW-IGBT2000KW

【Production capacity】0.2-16t/h

【Raw Material】B2, B3, B6, 70Cr2, 75Mncr, 65Mn, 60Mn, GCr15, 40Cr, 45#

【Energy Conversion】Heating to 930C-1050C, consuming 260-280 kWh of electricity

The core advantages of steel ball skew rolling process

Its core advantages lie in:

1. Heating and temperature control technology

Electromagnetic induction heating: The surface of the billet is free of oxide skin, and the heating uniformity is improved by 40% compared to traditional gas stoves.

PLC closed-loop control: Temperature fluctuations are controlled within ± 5 ℃ to ensure isothermal rolling process.

2. Equipment configuration and performance

Power range: 500KW-350KW, suitable for the production of steel balls with different diameters.

Automation level: automatic feeding, flipping, and conveying, reducing manual intervention.

3. Application Cases

Türkiye Steel Plant: Ø 40mm steel ball production line, with the yield rate increased to 98%.

Indian steel mills: Ø 40-60mm steel ball equipment, with an efficiency 30 times higher than air hammer forging.

4. Service guarantee

Warranty period: 12 months, with sufficient spare parts.

Technical support: Lifetime maintenance, providing suggestions for optimizing process parameters.
