Steel Ball Production Line — See How Steel Balls Are Made (Full Process)

Forever Electromechanical Demonstrates Complete Grinding Media Manufacturing WorkflowWord count: 782

Wuqiao, Hebei, China — Forever Electromechanical, a seasoned specialist in induction heating and metal heat treatment systems, showcases its

full-automatic steel ball production line, revealing the complete manufacturing journey from raw steel bar to finished wear-resistant grinding balls for global mining and cement customers. The integrated line combines medium-frequency induction heating, skew rolling forming and online quenching & tempering, delivering a transparent, repeatable production process for high-performance grinding media.

Raw Material Inspection & Automatic Feeding

The whole process starts with strict raw steel bar inspection. Operators verify material composition, surface quality and dimension tolerance before loading round steel bars onto the automatic feeding rack. The conveyor system steadily sends steel blanks into the induction furnace at a controlled speed, avoiding manual handling errors and ensuring continuous non-stop production. This pre-processing stage eliminates defective billets in advance and stabilizes the foundation for subsequent hot forming.

Induction Heating: Uniform, Low-Oxidation Heating

As the core heating module of the line, Forever’s IGBT medium-frequency induction furnace rapidly heats steel bars to the target rolling temperature between 950℃ and 1050℃. Different from gas furnaces, induction heating achieves through-heating with tiny temperature deviation. Thermal efficiency exceeds 90%, cutting power consumption by over 30%. Oxide scale on the steel surface is greatly reduced, which improves surface finish and lowers material waste. Real-time infrared temperature sensors feed data back to the PLC control system for closed-loop adjustment.

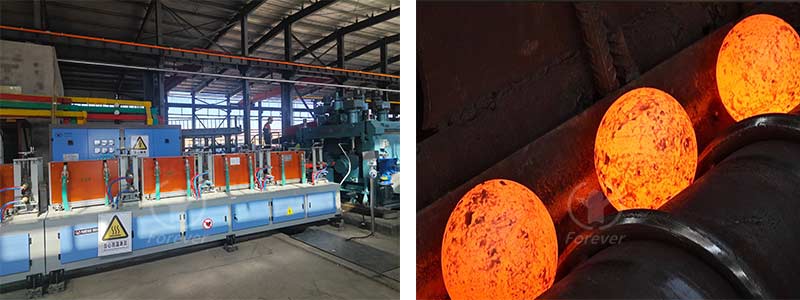

steel ball induction heat treatment production line

Skew Rolling to Shape Steel Balls

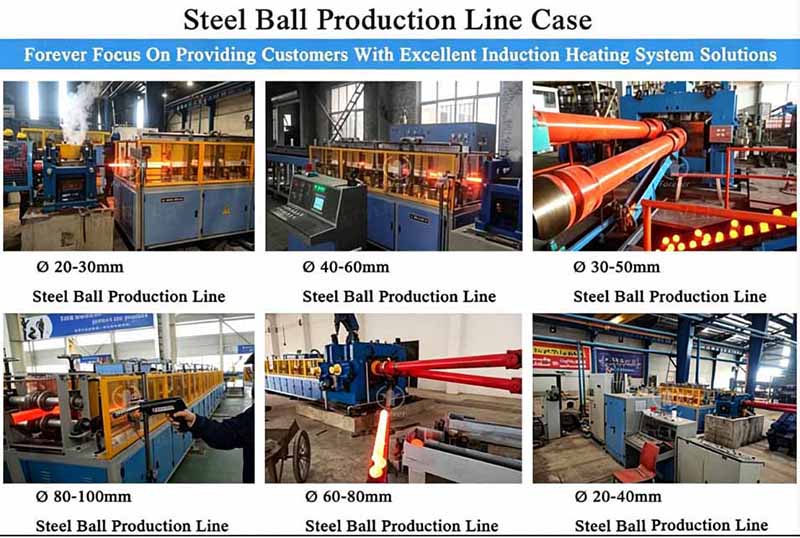

Heated steel bars enter the skew rolling mill. Spiral rollers continuously twist and squeeze the hot steel, forming round steel balls in one continuous pass. The rolling mill is calibrated for target diameters ranging from 20 mm up to 150 mm. Adjustable rolling speed supports flexible capacity tuning, producing dozens to hundreds of balls every minute. This skew rolling technology guarantees superior roundness and consistent internal metal structure, the key to preventing ball breakage in ball mill operation.

Online Quenching and Tempering Heat Treatment

Freshly rolled hot steel balls are immediately transported to the integrated heat treatment station. Segmented spray quenching rapidly cools the balls to gain high surface hardness, while follow-up tempering removes internal stress and avoids cracking defects. The matched induction tempering unit balances hardness and toughness, keeping finished balls at stable HRC 58–65 hardness. This inline heat treatment is one major advantage of Forever’s complete line: no repeated heating or transfer between separate workshops.

Finished Sorting, Inspection and Packaging

After cooling, finished steel balls go through automatic sorting and quality sampling. The system screens out out-of-round, cracked or under-hardened products. Random lab tests check hardness, impact toughness and microstructure. Qualified grinding balls move to automatic counting and packaging for sea shipment. Every batch is traceable for overseas buyers.

Why Forever Electromechanical’s Integrated Line Stands Out

Forever Electromechanical designs the whole line with modular structure and intelligent PLC central control. One line only requires a small operator team, reducing labor cost significantly. The equipment supports 24-hour continuous stable running, with low maintenance demand. The company provides turnkey services including factory testing, on-site installation, commissioning, operator training and long-term spare parts supply. Its steel ball lines have been delivered to customers across Europe, Middle East, Russia and Southeast Asia.

Outlook for Global Grinding Media Manufacturing

As mining and cement industries pursue lower operating costs and longer service life of grinding media, demand for automated, energy-saving

steel ball rolling induction heating furnace keeps rising. Forever Electromechanical continues upgrading its induction heating and heat treatment technology, helping manufacturers cut energy use, reduce scrap and boost product consistency. The full-process steel ball production line shows how advanced induction thermal processing transforms simple steel bars into high-value precision grinding media.
