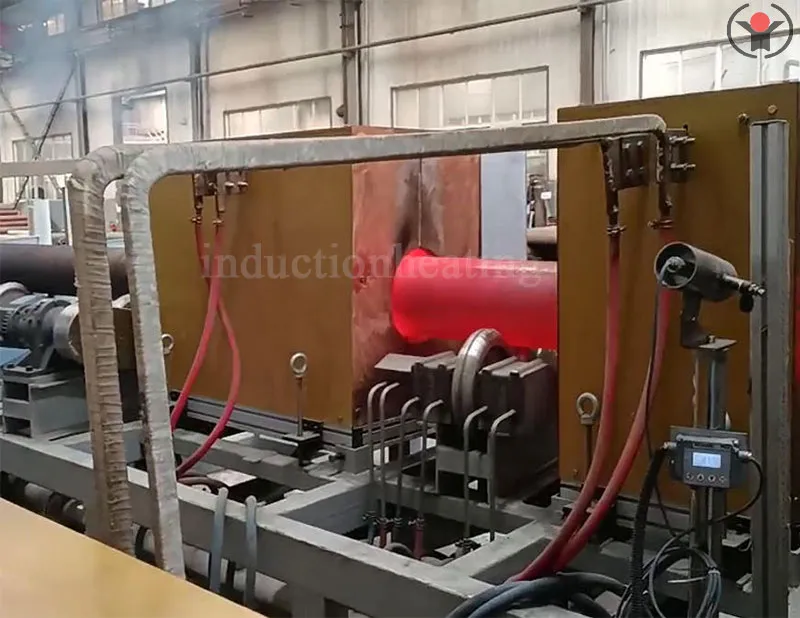

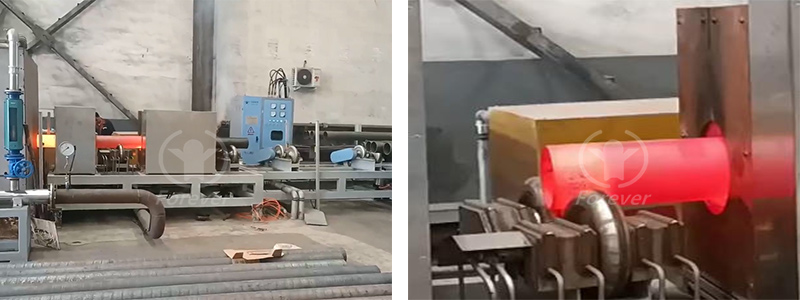

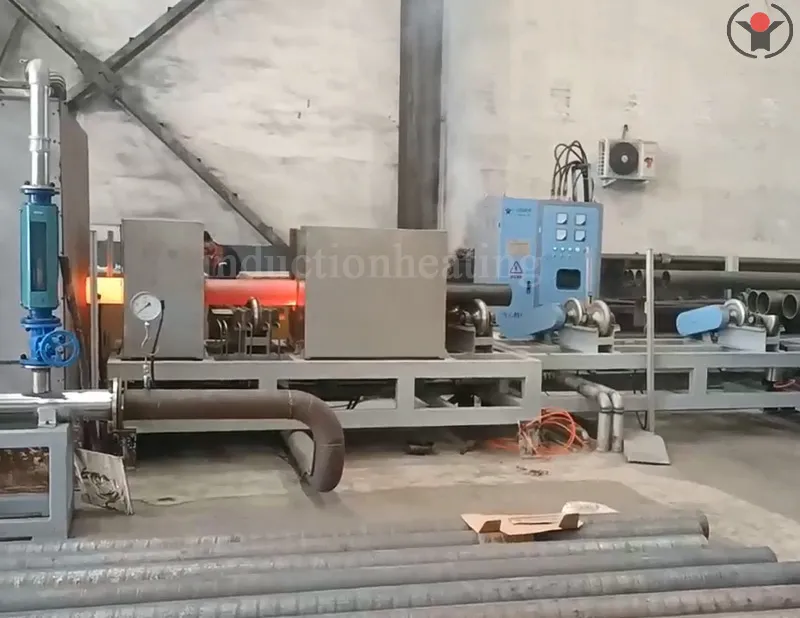

seamless steel pipe induction hardening heat treatment furnace

Hebei Forever Electromechanical Equipment Manufacturing Co., Ltd. is a smart choice for seamless steel tube induction quenching furnaces. The price is reasonable, the technology is advanced, and the seamless steel tube induction quenching furnace is energy-saving and environmentally friendly. It occupies a small space, heats evenly, has less oxidation and decarbonization, and has high production efficiency. We can customize a suitable induction quenching furnace according to your process needs.

Main application: Suitable for hardening heat treatment of steel pipes, seamless steel pipes, thick walled steel pipes, stainless steel pipes, etc.

Power supply system: The power supply consists of 500~3200KW/1000~800HZ.

Applicable range: ø 20~ø 600, wall thickness 2.5mm~10mm, hourly output: 1.5~10 tons.

Controlled by a series resonant intermediate frequency power cabinet, with a composite resonant design, fully open rectification, all digital, and capable of achieving high power.

The heating speed is fast, which can double the production efficiency of the precision seamless steel pipe quenching production line. It can produce continuously for 24 hours without interruption, with a long service life, no noise and dust, no pollution, and high production efficiency. It belongs to the energy-saving and environmentally friendly series of products.

Carefully designed according to the user's required process, with a high degree of automation, it can achieve fully automatic operation, and the equipment operation is simple, which can be learned in just a few minutes.

Using the American Leitai thermometer to control the temperature of the steel pipe and display it in real-time. It can store information for a long time and retrieve the required parameters using a USB drive.

Each axis is driven by an independent motor reducer, controlled by an independent frequency converter, with segmented control of operating speed. The steel pipe moves forward at a uniform speed, with even heating and quenching.

The surface induction hardening equipment has treated the tube blank without cracks, overburning, or deformation.

A professional formula management system that automatically calls relevant parameters after inputting the steel grade, outer diameter, and wall thickness parameters to be produced, without the need to manually record, view, or input the required parameter values for various workpieces.

We use ceramic rollers for input and output, which can prevent the workpiece from overheating.
