Steel pipe quenching production equipment

Main technical parameters of the equipment: Power supply system: Power supply composition: 500~3200KW/1000~800HZ. ·Scope of application: 020~0600, wall thickness 2.5mm~10mm, hourly output: 1.5~10 tons. Energy conversion: using quenching method, with a power consumption of 280-320 kWh per ton. ·Main application: Suitable for quenching heat treatment of steel pipes, seamless steel pipes, thick walled steel pipes, stainless steel pipes, etc. ·Multi channel closed-loop function: A high-level temperature, voltage and other multi-channel closed-loop system has been designed to address the instability of power supply systems in underdeveloped areas and countries.

Inquire Now Next Product

Product Details

Main technical parameters of steel pipe quenching production line:

·Main application: Suitable for quenching heat treatment of steel pipes, seamless steel pipes, thick walled steel pipes, stainless steel pipes, etc.

Power supply system: The power supply consists of 500~3200KW/1000~800HZ.

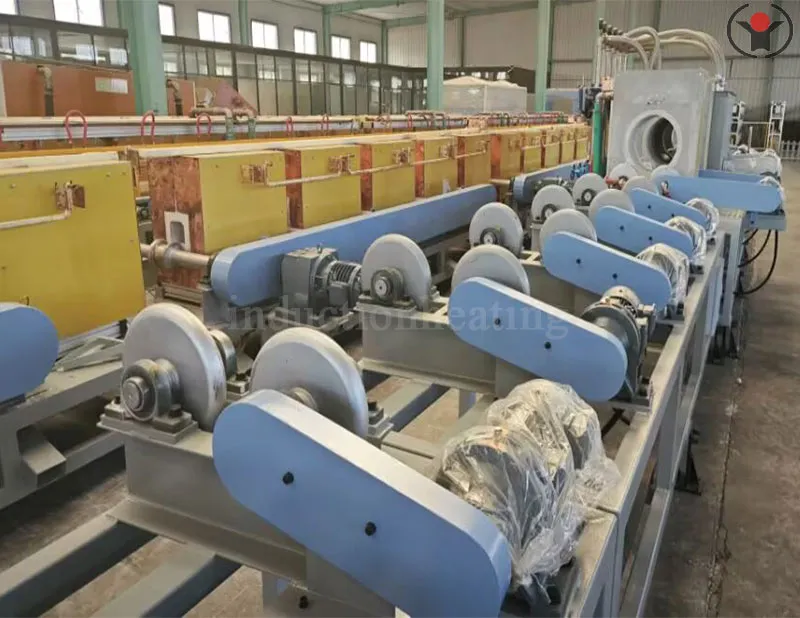

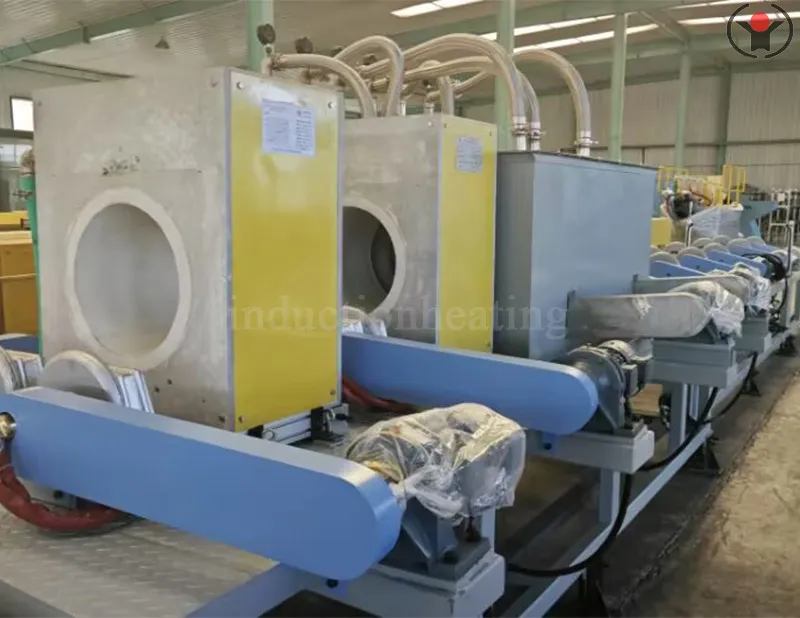

·Scope of application: 020~0600, wall thickness 2.5mm~10mm, hourly output: 1.5~10 tons. Conveyor roller conveyor: The axis of the roller conveyor forms an angle of 18-21 with the axis of the workpiece. The workpiece rotates while moving forward at a constant speed, making heating more uniform. The roller conveyor between the furnace bodies is made of 304 non-magnetic stainless steel and water-cooled.

Feeding system: Each axis is driven by an independent motor reducer and controlled by an independent frequency converter; Flexible design of differential output, segmented control of operating speed.

Formula management function: A powerful formula management system that automatically calls relevant parameters after inputting the steel grade, outer diameter, and wall thickness parameters to be produced, eliminating the need to manually record, view, and input the required parameter values for various workpieces.

Multi channel closed-loop function: A high-level temperature, voltage and other multi-channel closed-loop system has been designed to address the instability of power supply systems in underdeveloped areas and countries.

Energy conversion: using quenching method, with a power consumption of 280-320 kWh per ton.

Steel pipe quenching production equipment

Advantages and characteristics

Advantages and characteristics of steel pipe quenching production line:

Reasonable structure, small footprint, and self-contained production line

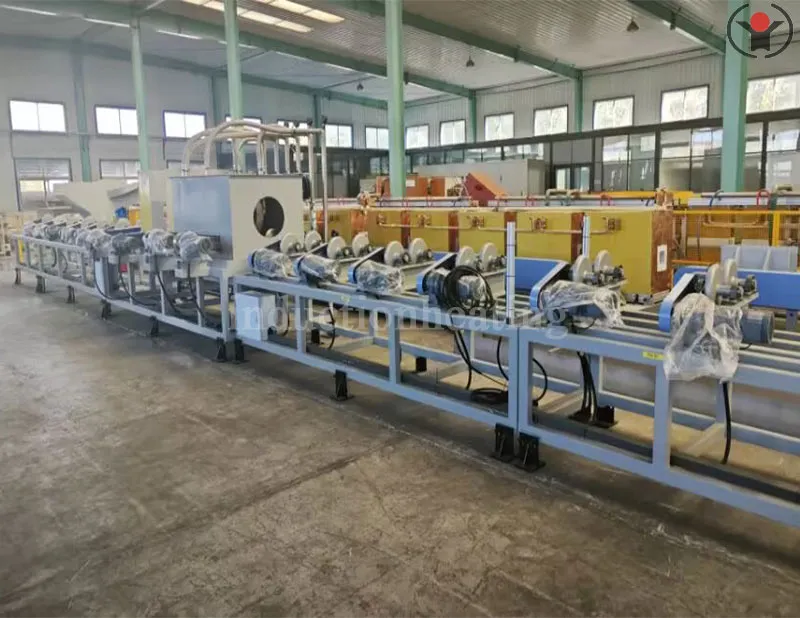

The overall structure of the steel pipe quenching production line is compact, the performance is stable, and the entire equipment occupies a small area, making use of the user's reasonable space planning.

·High level of intelligence, safe and easy to operate

The steel pipe induction quenching heat treatment production line adopts PLC control system+touch screen display, with high intelligence, one click control, more installation, and more convenience.

Good environmental adaptability, capable of producing even in harsh environments

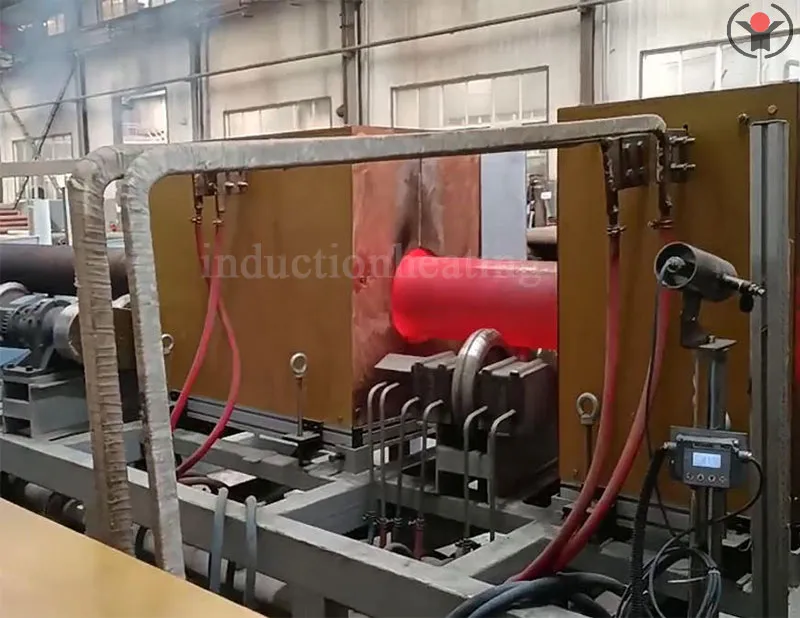

The steel pipe medium frequency induction heating heat treatment quenching production line is equipped with a frequency converter drive for production, achieving stepless adjustment and controllable operating speed. The entire equipment is suitable for various harsh environments and has a wide processing range.

Energy saving and environmental protection in production

The production process of medium frequency induction heating and quenching wire for steel pipes does not produce harmful substances, effectively improving the working environment for workers. By using induction frequency to quench steel pipes, the yield rate is high and more energy-efficient.
