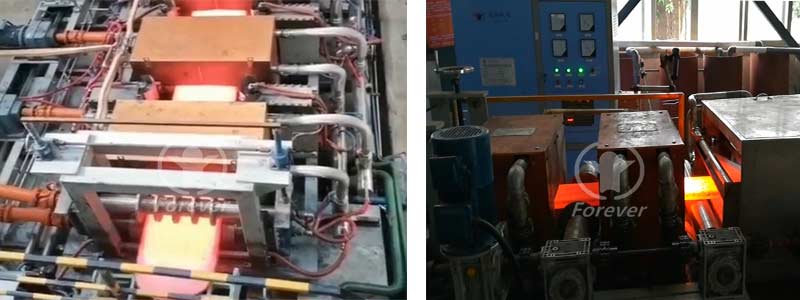

Hot rolling and heating production line for steel plates

Main technical parameters of the equipment: Power supply system: 100~4000KW/200~800HZ intelligent intermediate frequency power supply. ·Feeding system: roller conveyor+power double pinch roller, each axis is driven by an independent motor reducer and controlled by an independent frequency converter; Flexible design of differential output, segmented control of operating speed. Energy conversion: Heating one ton of steel to 1150 ° C consumes 330-360 kWh of electricity. ·Applicable workpieces: Suitable for pre rolling heating of steel plates, slabs, blade angle plates, engineering blade plates, etc

Inquire Now Next Product

Product Details

Main technical parameters of steel plate hot rolling heating equipment:

Applicable workpieces: Suitable for pre rolling heating of steel plates, slabs, blade angle plates, engineering blade plates, etc.

·Power supply system: 100~4000KW/200~800HZ intelligent intermediate frequency power supply.

Feeding system: roller conveyor+power double pinch roller, each axis is driven by an independent motor reducer and controlled by an independent frequency converter; Flexible design of differential output, segmented control of operating speed. Roller electrical isolation: In response to the problem of workpiece and roller ignition caused by equipment, we have designed a sturdy and durable roller electrical isolation system to solve the problem of workpiece ignition damage. Industrial control computer system: Real time display of the current working parameter status, workpiece parameter memory, storage, printing, fault display, alarm and other functions. Formula management function: A powerful formula management system that automatically calls relevant parameters after selecting the steel grade and plate type parameters to be produced, without the need to manually record, view, or input the required parameter values for various workpieces.

Energy Conversion: Heating one ton of steel to 1150 ° C, consuming 330-360 kWh of electricity

Hot rolling and heating production line for steel plates

Advantages and characteristics

Advantages and characteristics of steel plate hot rolling heating equipment:

1. The use of hot-rolled steel plate heating equipment can greatly reduce energy consumption and lower costs. Metal forming is high, but the deformation resistance is low, which reduces the energy consumption of metal deformation.

2. The use of hot-rolled steel plate heating equipment can improve the properties of metals and alloys by hot rolling steel plates.

3. Hot rolled steel plate heating equipment can roll in large quantities, not only improving production efficiency, but also increasing rolling speed, creating conditions for continuous rolling and automatic rolling.

4. The heating equipment for hot-rolled steel plates is easy to operate and has high production efficiency.

5. The plate processed by the hot-rolled steel plate heating equipment does not produce cracks, has strong plasticity, and has a high yield of qualified products.
