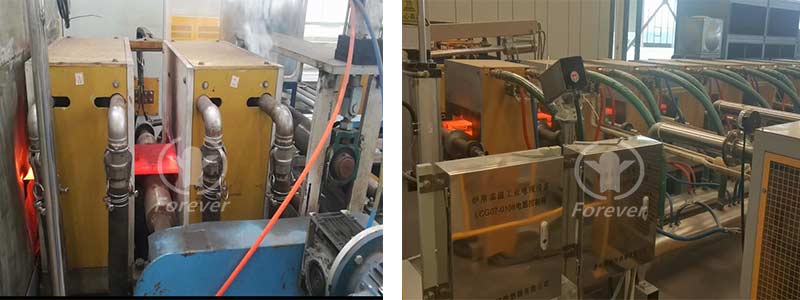

Steel plate induction heat treatment production line

Inquire Now Next Product

Product Details

Main technical parameters of steel plate heat treatment production line:

·Applicable workpieces: Suitable for medium frequency heat treatment of steel plates, slabs, blade angle plates, engineering blade plates, etc.

·Power supply system: quenching 200-800KW/2.5-4.0KHZ, tempering 160-500KW/1.0-2.5KHZ, hourly output 0.6-2.5 tons.

·Scope of application: 20mm-60mm thick, 80mm-500mm wide.

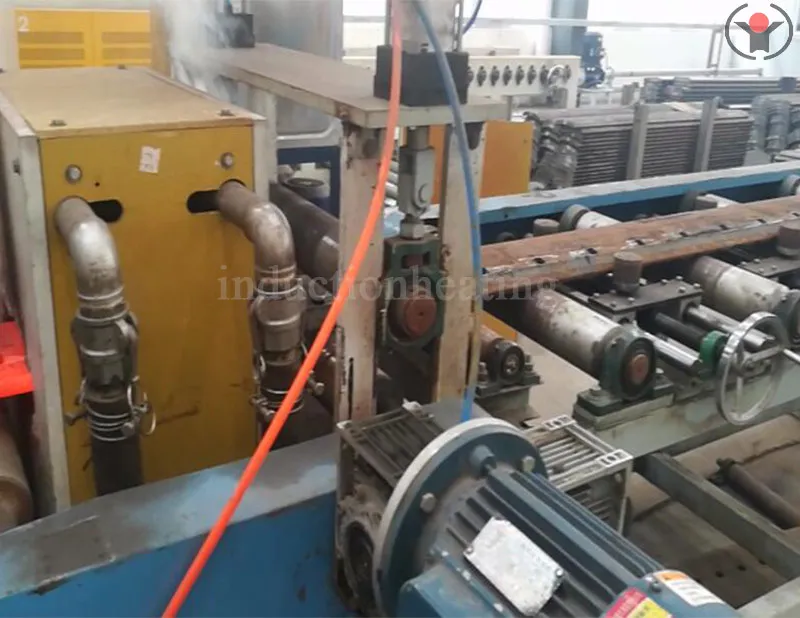

Feeding system: roller conveyor+power double pinch roller, each axis is driven by an independent motor reducer and controlled by an independent frequency converter; Flexible design of differential output, segmented control of operating speed. ·Roller electrical isolation: In response to the problem of workpiece and roller ignition, we have designed a sturdy and durable roller electrical isolation system to solve the problem of workpiece ignition damage. ·Formula management function: A powerful formula management system that automatically calls relevant parameters after selecting the steel grade and plate type parameters to be produced, without the need to manually record, view, or input the required parameter values for various workpieces.

Energy conversion: using quenching+tempering method, with a power consumption of 380-400 kWh per ton.

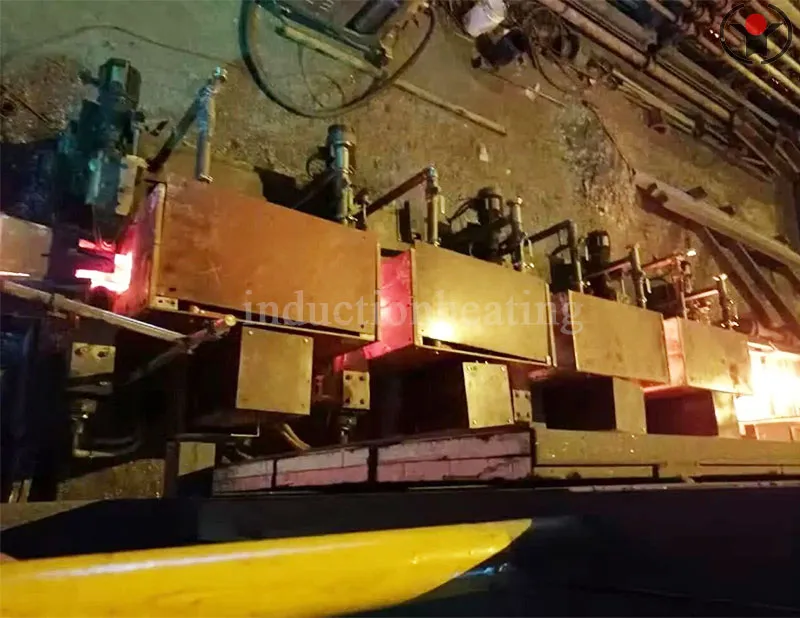

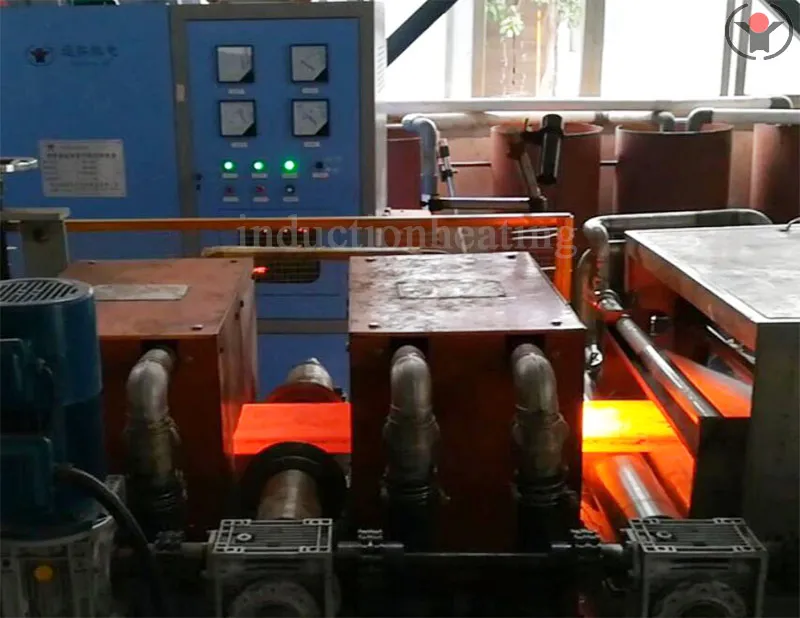

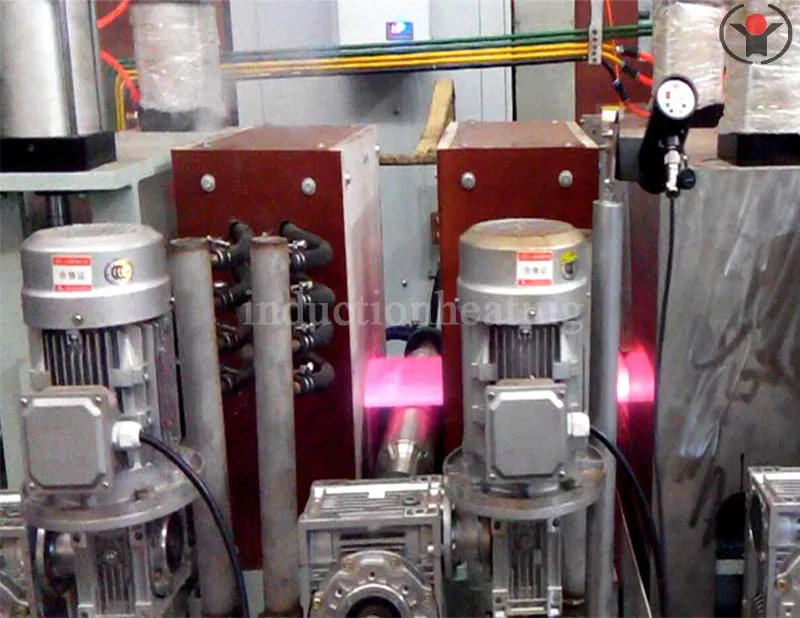

Steel plate induction heat treatment production line

Advantages and characteristics

Advantages and characteristics of steel plate heat treatment production line:

The use of steel plate heat treatment equipment can achieve rapid heating and achieve the effect of heat transfer heating, with uniform heating of the plate;

Efficient and energy-saving, with high power factor and power efficiency across the entire power range;

The steel plate heat treatment production line does not need to heat up in advance before production, which saves energy and is conducive to organizing production;

During the heating process of the steel plate heat treatment production line, less oxide scale is generated on the steel plate, resulting in high heating quality. Compared with other heating methods, it effectively reduces energy consumption and has high labor productivity;

The control circuit of the steel plate heat treatment equipment adopts an intelligent control board (single board) specially developed by Forever, and the main core components are imported integrated circuits. The fully digital and relay free control circuit ensures the stable and reliable operation of the entire system.

IGBT Induction Power Supply

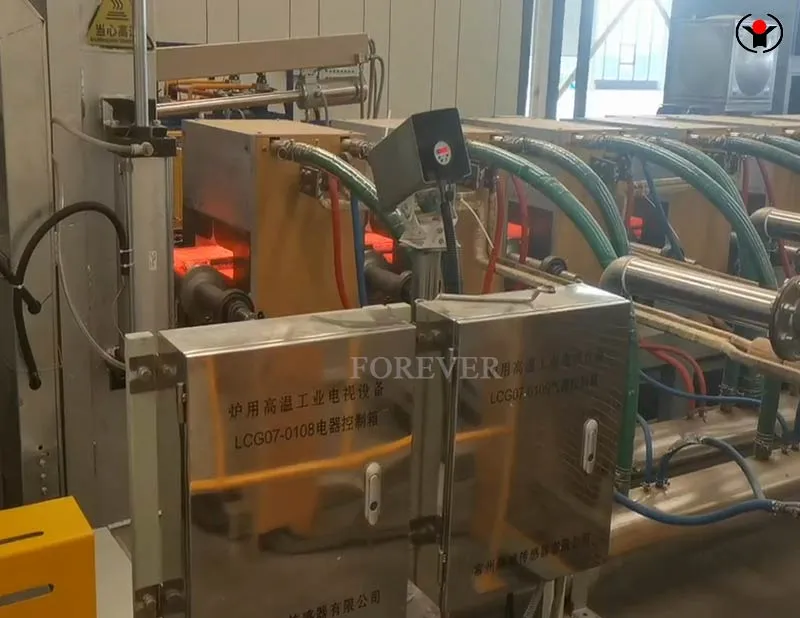

Steel plate induction heat treatment production line
