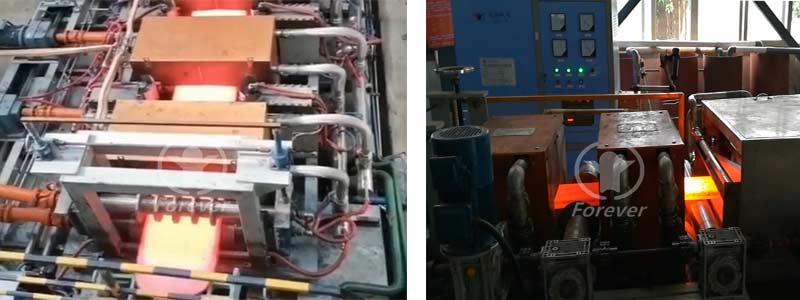

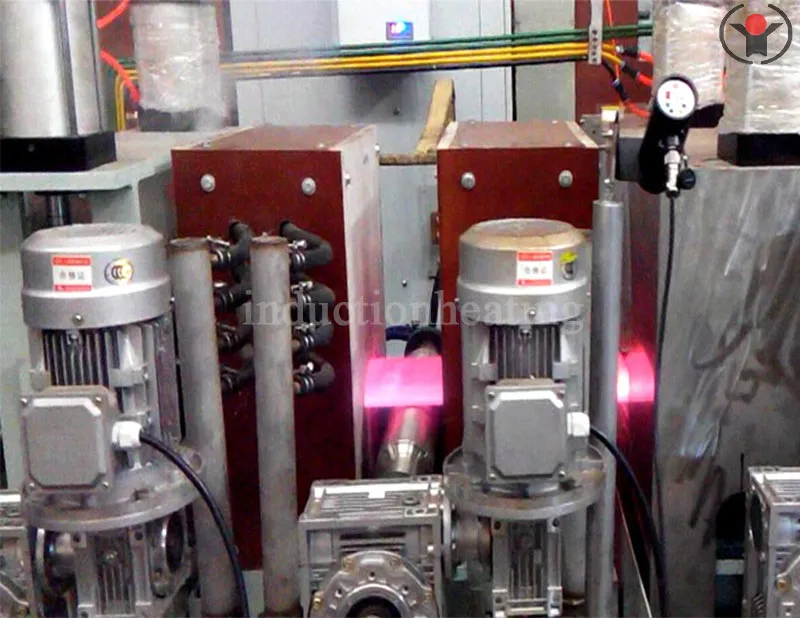

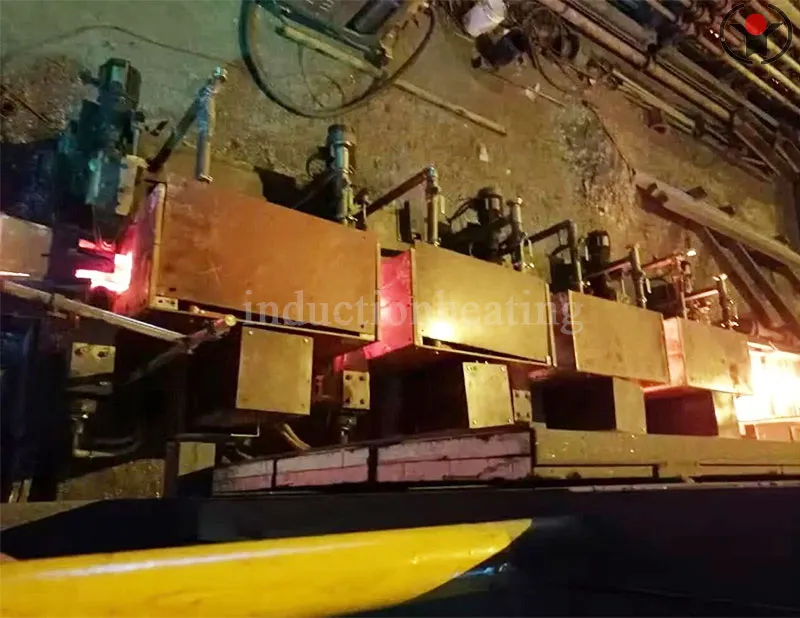

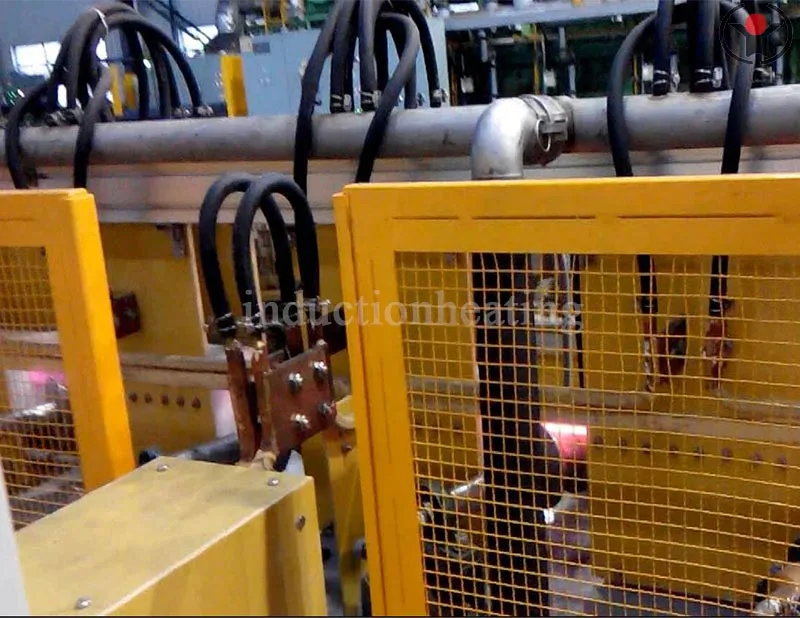

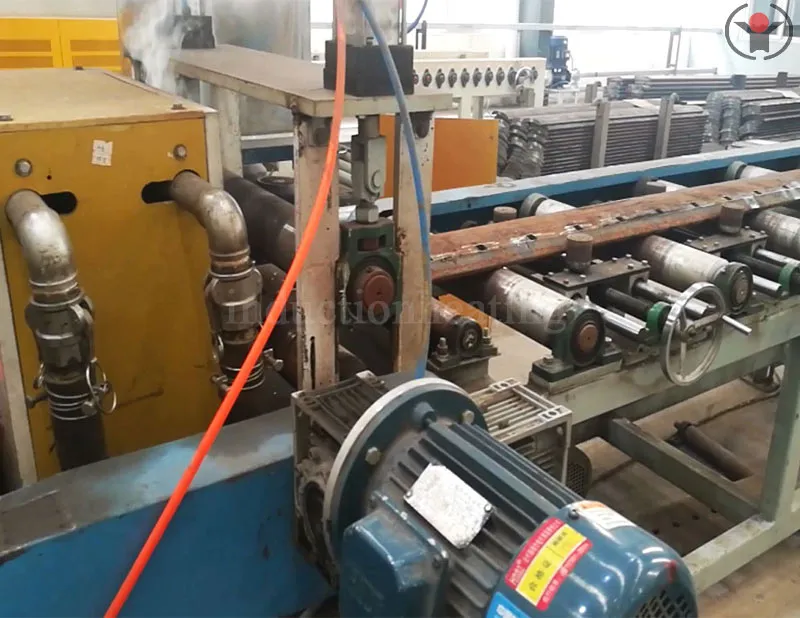

Steel sheet induction hardening and tempering furnace

Hebei Forever Electromechanical Equipment Manufacturing Co., Ltd. is a professional supplier of sheet metal quenching and tempering furnaces that integrates research and development with manufacturing. The sheet metal quenching and tempering equipment adopts a new energy-saving air-cooled induction heating power supply control, with low power consumption and high production efficiency. Yuantuo Electromechanical Induction Heating Equipment has the characteristics of stable and reliable production operation, high workpiece quality, and no pollution during equipment operation. Welcome to call for consultation!

[Tempering power supply] 200-800KW/2.5-4.0KHZ

[Quenching power supply] 160-500KW/1.0-2.5KHZ

[Production capacity] 0.6-2.5t/h

[Scope of application]: Thickness 20mm-60mm, width 80mm-500mm

[Energy Conversion]: Self tempering after quenching, with a power consumption of 380-400 kWh per ton

1. High performance transmission system ensures stable and reliable operation of steel sheet induction hardening and tempering furnace;

2. The design of the split structure for the steel sheet induction hardening and tempering furnace is convenient for movement, installation, quenching and maintenance;

3. The local steel sheet induction hardening and tempering furnace has a high power output, which can achieve full power output and improve factory production efficiency and output;

4. Equipped with a high-precision temperature closed-loop control system, the temperature measurement is precise to ensure uniform heating temperature of the workpiece and small temperature difference between the core and the surface;

5. The success rate of starting the sheet induction hardening and tempering equipment is relatively high, and there is no need to preheat the equipment in advance for production, saving electricity.

The steel sheet induction hardening and tempering furnace is designed according to the process requirements of the workpiece parameters. The entire set of Steel sheet induction hardening and tempering furnace adopts a split structure, which includes energy-saving intermediate frequency power supply, heating furnace body, compensation capacitor and other parts.

The supporting intermediate frequency power supply adopts our company's advanced domestic control system and integrated silicon frame structure, making water and electricity installation more convenient; The furnace body is designed as a quick change structure, and both water and electricity connections use quick change connectors of uniform specifications. When replacing the furnace body, simply connect the power copper bar to the corresponding furnace body interface, loosen the inlet and outlet water pipe quick change joint, and the operation is very simple.
