Steel slab induction heating treatment machine

Inquire Now Next Product

Hebei Forever Electromechanical Manufacturing's Steel slab induction heating treatment machine has reliable quality, stable operation, and pollution-free production. Welcome to inquire about Hebei Forever Electromechanical's steel plate quenching heat treatment production line. We will provide a rational and constructive induction heating technology solution.

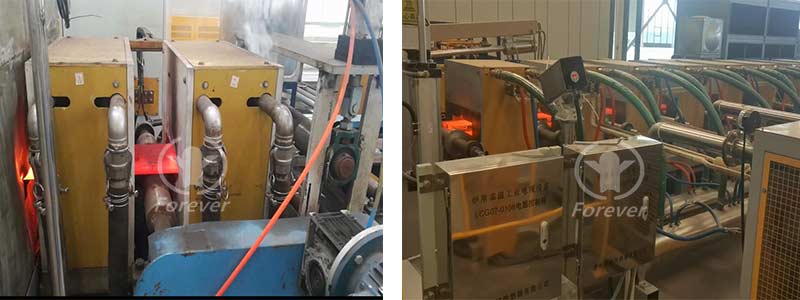

Steel slab induction heating treatment machine

[Tempering power supply] 200-800KW/2.5-4.0KHZ

[Quenching power supply] 160-500KW/1.0-2.5KHZ

[Production capacity] 0.6-2.5t/h

[Scope of application]: Thickness 20mm-60mm, width 80mm-500mm

[Energy Conversion]: Self tempering after quenching, with a power consumption of 380-400 kWh per ton

Process of steel slab induction heating treatment machine

The steel slab induction heating treatment machine is designed according to the process requirements of the workpiece parameters. The entire set of steel slab induction heating treatment machine adopts a split structure, which includes energy-saving intermediate frequency power supply, heating furnace body, compensation capacitor and other parts. The supporting intermediate frequency power supply adopts our company's advanced domestic control system and integrated silicon frame structure, making water and electricity installation more convenient; The furnace body is designed as a quick change structure, and both water and electricity connections use quick change connectors of uniform specifications. When replacing the furnace body, simply connect the power copper bar to the corresponding furnace body interface, loosen the inlet and outlet water pipe quick change joint, and the operation is very simple.

Forever steel plate
