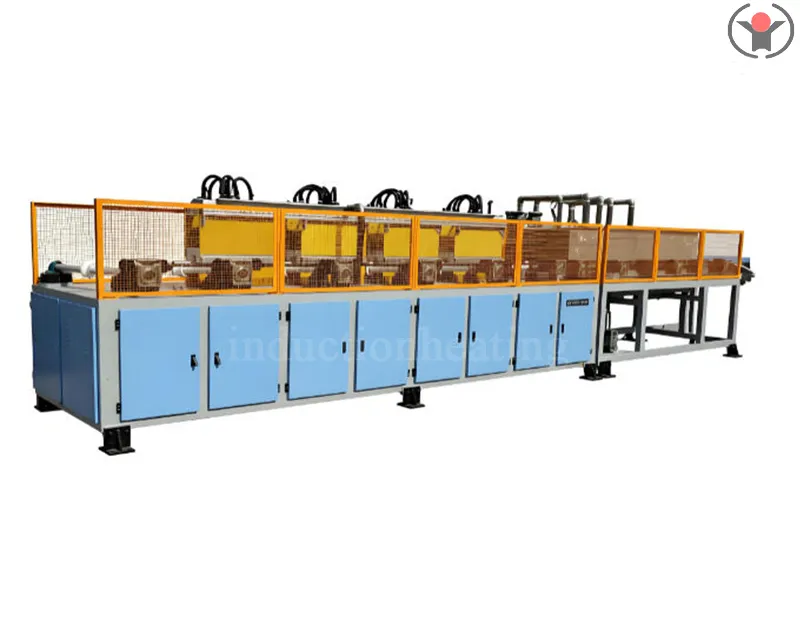

Hot rolling heating furnace for rod and wire

Main technical parameters of the equipment: Power supply system: 200KW-6000KW or IGBT 200~2000KW, hourly output of 0.2-16 tons. Energy conversion: Heating to 930 ° C~1050 ° C, consuming 260~280 degrees of electricity. Workpiece materials: B2, B3, B6, 70Cr2,75Mncr, 65Mn, 60Mn, GCr15, 40Cr, 45 # External H temperature measurement: Install an infrared temperature measurement device at the discharge end to ensure consistent temperature of the bar before entering the rolling mill.

Inquire Now Next Product

Product Details

Main technical parameters of bar hot rolling heating equipment:

Workpiece materials: B2, B3, B6, 70Cr2, 75Mncr, 65Mn, 60Mn, GCr15, 40Cr, 45 #

Power supply system: 200KW-6000KW or IGBT 200-2000KW, with an hourly output of 0.2-16 tons.

Storage system: A storage platform made of welded thick walled square tubes.

Sensor design: variable pitch, temperature gradient design, higher efficiency.

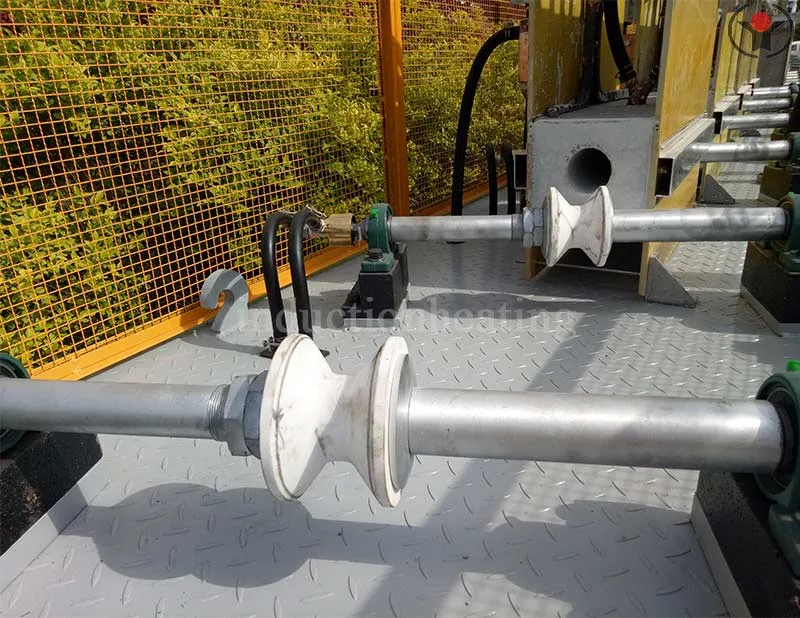

Elastic adjustable pressure roller: enables uniform feeding of round steel bars of different diameters. The roller conveyor and pressure roller between the furnace bodies are made of 304 non-magnetic stainless steel and water-cooled.

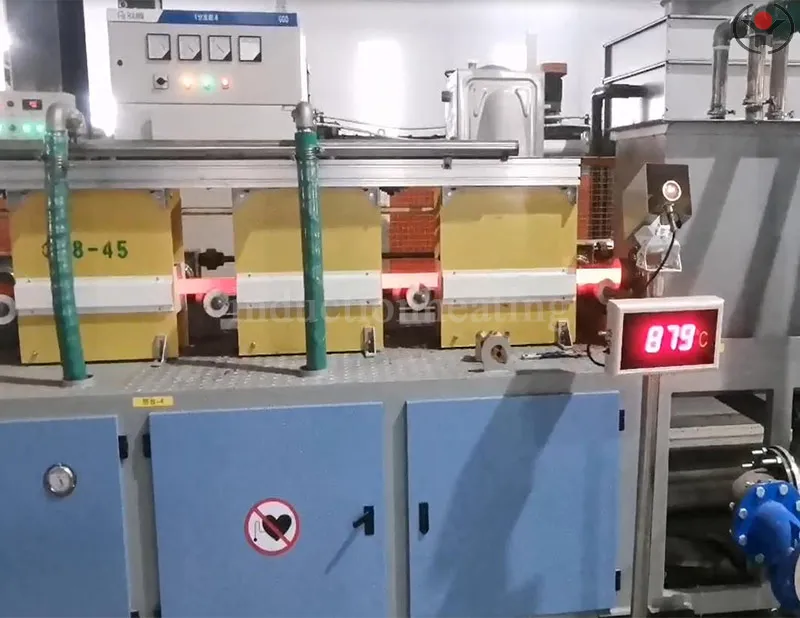

Infrared temperature measurement: Install an infrared temperature measurement device at the discharge end to ensure consistent temperature of the bar before entering the rolling mill.

Energy conversion: Heating to 930 ° C~1050 ° C, consuming 260~280 degrees of electricity.

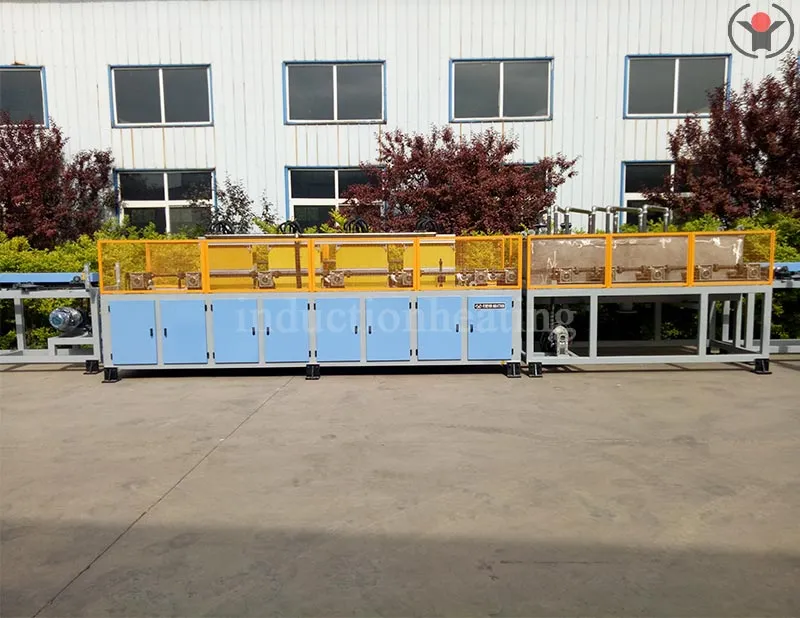

Hot rolling heating furnace for rod and wire

Advantages and characteristics

Advantages and characteristics of bar hot rolling heating equipment:

1. The bar material heated by the fully automatic medium frequency induction heating equipment has good heating quality, can meet the temperature requirements of subsequent processes, uniform heat transmission, low oxidation and decarburization, and low steel burning rate;

2. Fast heating speed can improve the production efficiency of bar heating;

3. The fully automatic bar hot rolling heating equipment has high heating efficiency per unit and can save energy consumption compared to traditional heat transfer methods; 4. The equipment creates good working conditions, high degree of automation, and convenient operation and maintenance for the operators who heat the bars; 5. The fully automatic medium frequency hot rolling heating furnace for bar materials has low noise, and the hot rolling heating of bar materials meets environmental protection requirements.

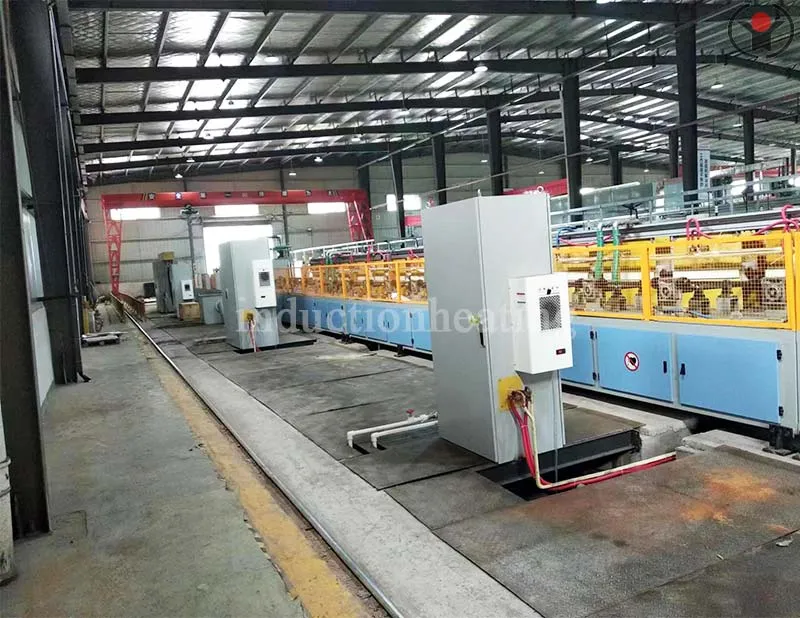

Hot rolling heating furnace for rod and wire
