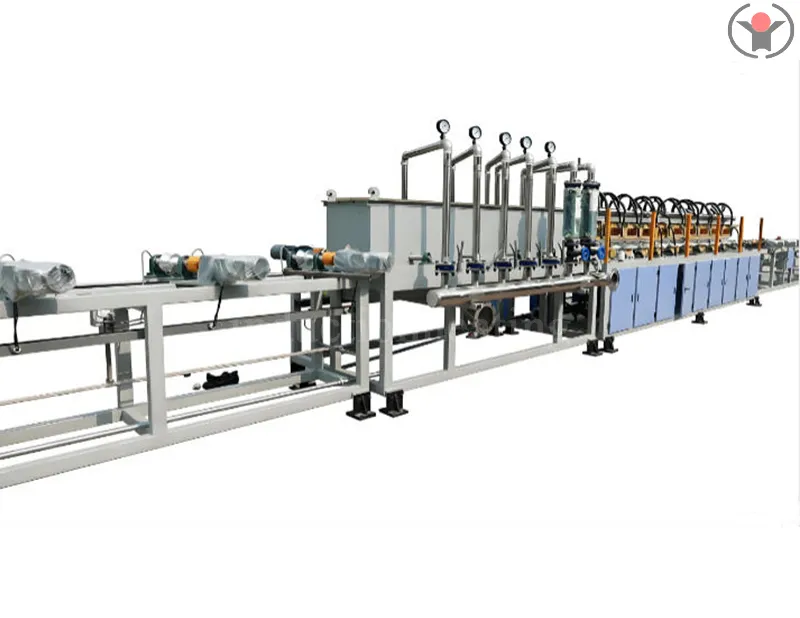

Hot rolling heating equipment for threaded steel bars

Main technical parameters of the equipment: Raw materials: M2 high-speed steel, 11Cr17 martensitic stainless steel, threaded steel bars, etc. ·Power supply system: 1000-5000KW, frequency 2.5KHz-15KHz, specifications range from 12-32, hourly output 2.5-15 tons. Energy conversion: Heating to 1200 ° C, consuming 320-360 degrees per ton of electricity. ·Elastic adjustable pressure roller: enables uniform feeding of threaded steel bars of different diameters. The roller conveyor and pressure roller between the furnace bodies are made of 304 non-magnetic stainless steel and water-cooled

Inquire Now Next Product

Product Details

Main technical parameters of the hot rolling heating furnace for threaded steel bars:

Raw material: M2 high-speed steel, 11Cr17 martensitic stainless steel, threaded steel bars, etc.

Power supply system: 1000-5000KW, frequency 2.5KHz-15KHz, specifications 12-32, hourly output 2.5-15 tons.

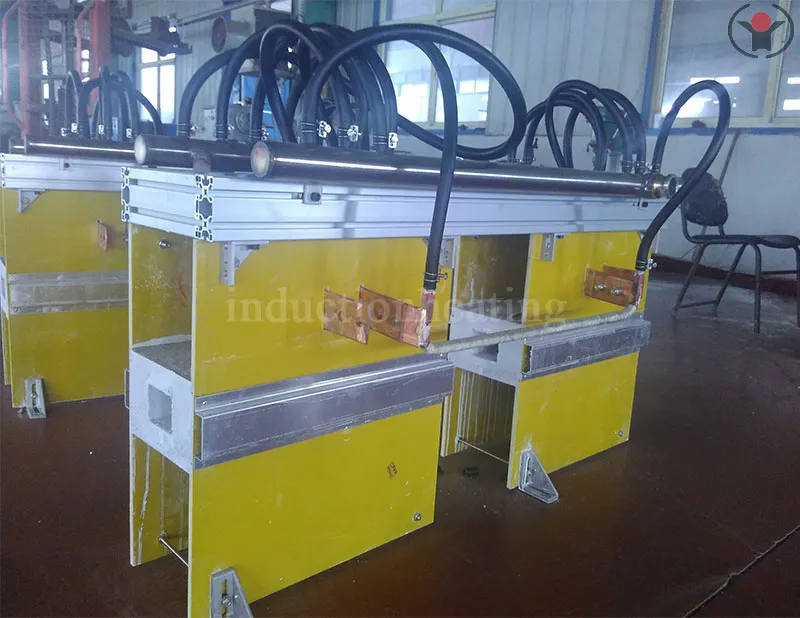

Sensor design: variable pitch, temperature gradient design, higher efficiency.

Elastic adjustable pressure roller: enables uniform feeding of threaded steel bars of different diameters. The roller conveyor and pressure roller between the furnace bodies are made of 304 non-magnetic stainless steel and water-cooled.

·Infrared temperature measurement: Install an infrared temperature measurement device at the discharge end to ensure consistent temperature of the threaded steel bars before entering the rolling mill.

Energy conversion: Heating to 1200 ° C consumes 320-360 degrees per ton of electricity.

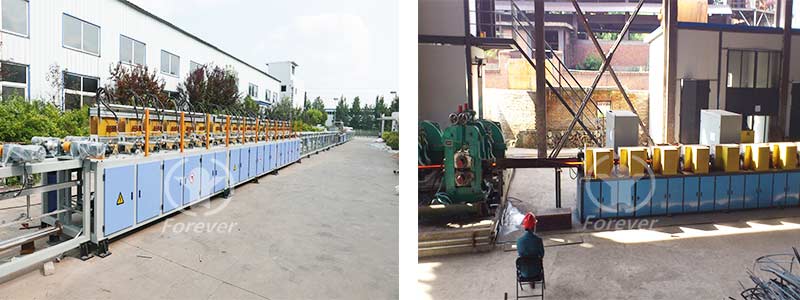

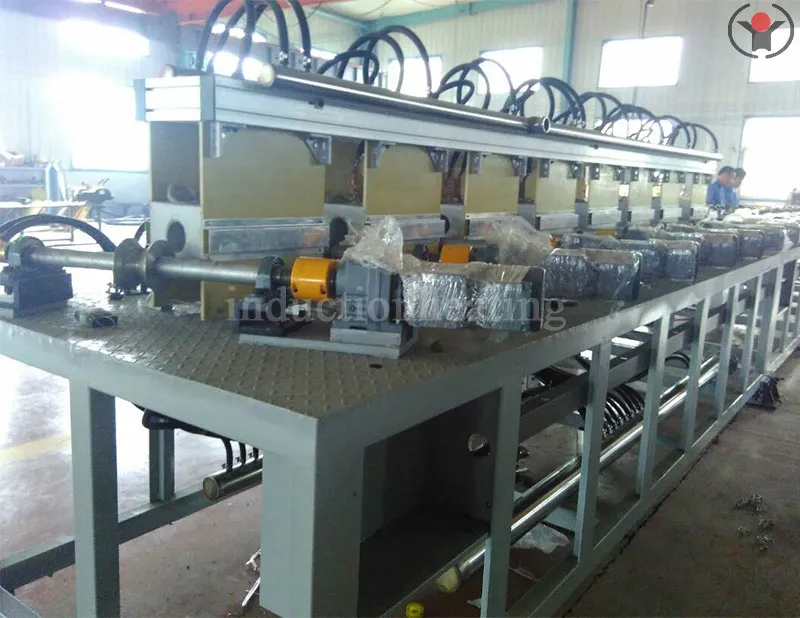

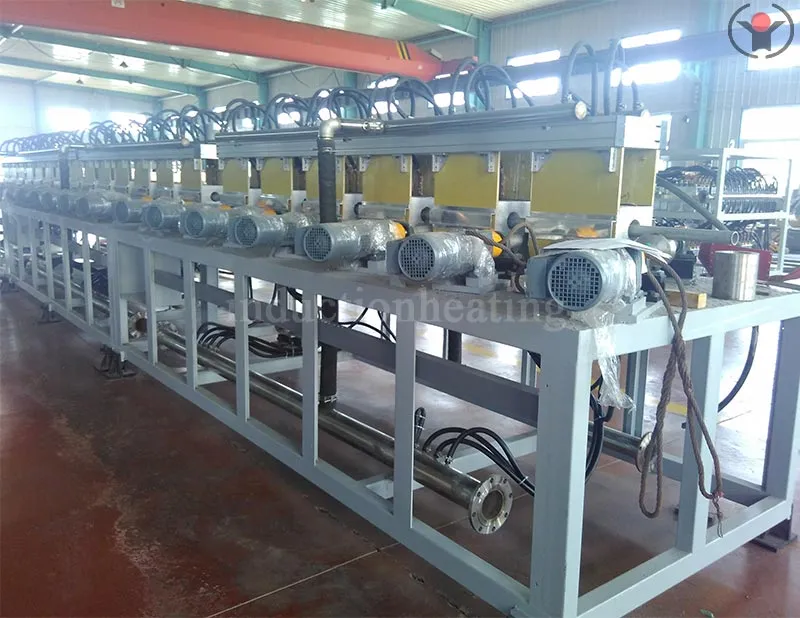

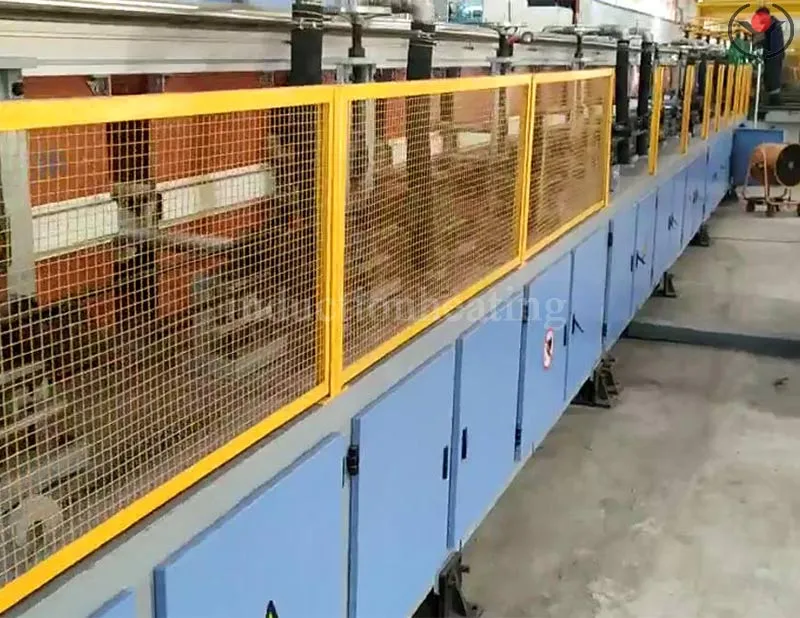

Hot rolling heating equipment for threaded steel bars

Advantages and characteristics

Advantages and characteristics of hot rolling heating furnace for threaded steel bars:

Hot rolled rebar heating furnace has high heating efficiency, fast production and processing speed, and reduces processing time;

The heating workpiece is processed in a closed manner, which is less affected by climate and environmental conditions, improving the working conditions of workers. Impurities will not be transported into the heating furnace, ensuring equipment safety and ensuring the quality of the heated workpiece;

The equipment is simple, the structure is compact, the production process is flexible, the occupied area is small, and the operation of the hot rolling heating furnace for threaded steel bars is easy; It is easy to achieve centralized control and automation of the entire hot-rolled heating equipment system for threaded steel bars; The advantages of no dust, no waste smoke, no exhaust gas, and good working environment have gradually been promoted and applied, especially in recent years when the country advocates energy conservation and environmental protection, the advantages of hot-rolled threaded steel heating furnaces are becoming increasingly apparent.

Hot rolling heating equipment for threaded steel bars
